Adhesive clip, without nail | 10 | 14 | 2 | Light grey; RAL 7035

morepic-1

morepic-2

Adhesive clip, without nail

Item no. 2215349 | EAN 4012195213796

Item no. / Types	2215349 / 4041

for cable diameter, min.	10 mm

for cable diameter, max.	14 mm

For nail diameter	2

Colour	Light grey; RAL 7035

Product description

Product description

Adhesive clip, for clamping to the cable, suitable for steel nails 2 mm.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	10-14mm
Dimension B	10 mm
Dimension H	13,3 mm
Dimension L	28 mm
Double clip	no
for cable diameter, max.	14 mm
for cable diameter, min.	10 mm

For nail diameter	2
Halogen-free	yes
Hardened	no
Impact-resistant	yes
Material	Polypropylene
Pipe locking	no
Shape	Round (for round conductor)
With nail	no

All types

All types

Types	for cable diameter, min.	for cable diameter, max.	For nail diameter	Colour	Item no.	Quantity	SSU
4041	10 mm	14 mm	2	Light grey; RAL 7035	2215349	piece	100 piece

Downloads

Data sheet 4041 / 2215349 , 0.17MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 4041 / 2215349 , 0.06MB , pdf

Download

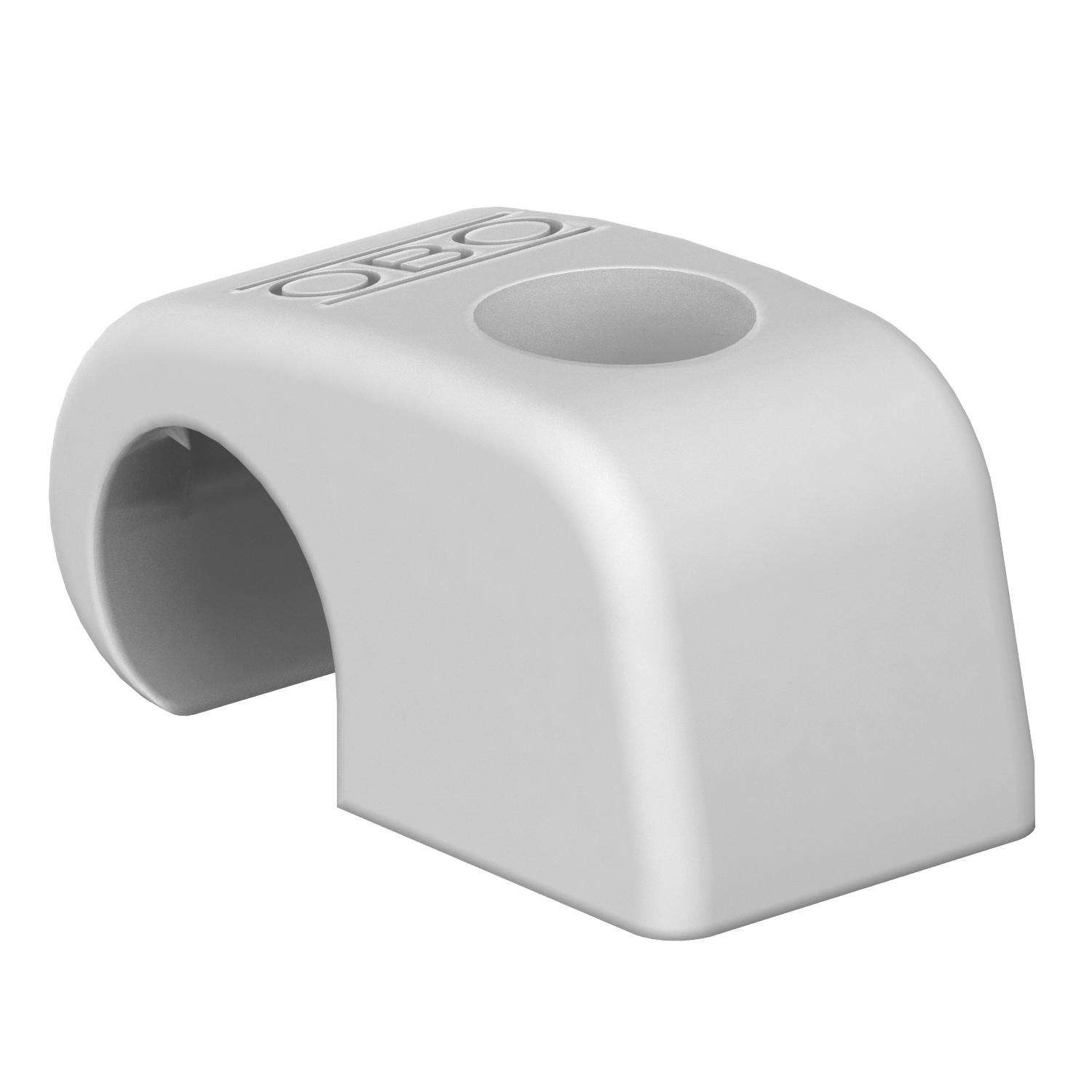

Product graphic 4041 / 2215349, 52.03 kB, jpg

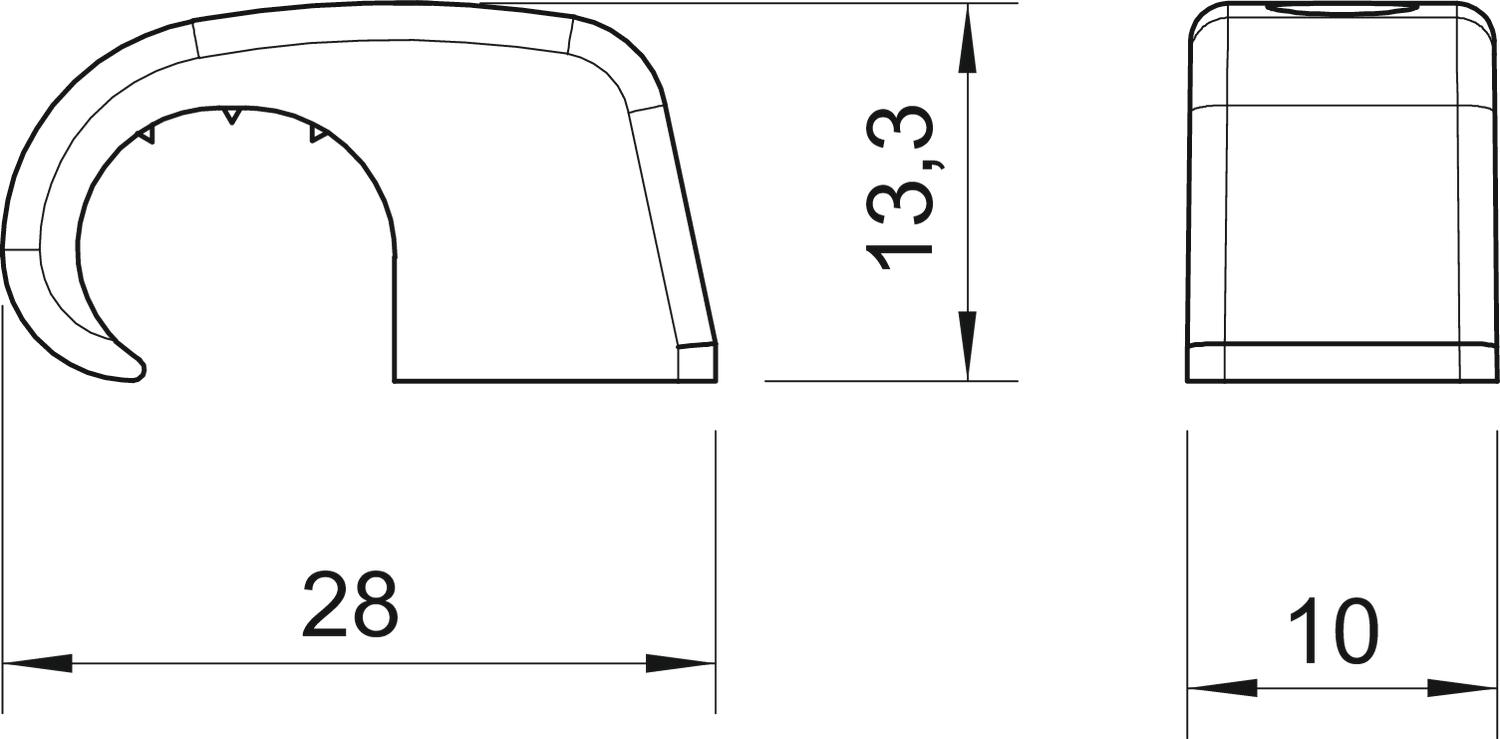

Scale drawing 4041 / 2215349, 47.73 kB, jpg

4041 / 2215349
