- Product description
-
Product description

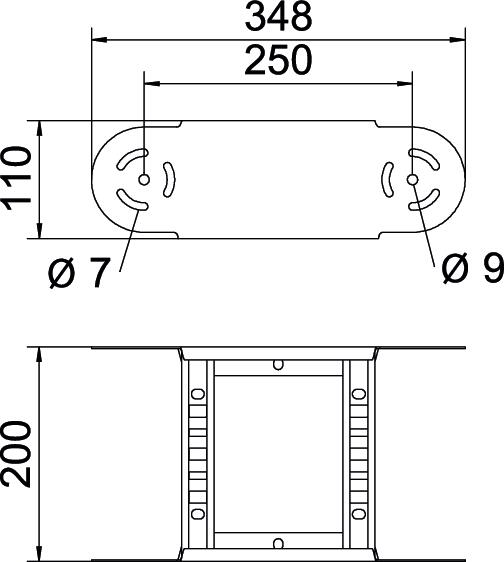

Adjustable bend element with welded rung for use in the cable ladder types with a side height of 110 mm.
- Technical data
-
Technical data
Bend (angle) Adjustable Change of direction Vertical, rising/falling Connector version Integrated connector Dimension 110x200 Dimension B 200 mm Dimension R 200 mm Height 110 mm Hinged yes Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile perforated Wide-span version no Width 200 mm - All types
- Downloads
-
Data sheet LGBE 1120 FS / 6225490 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LGBE 1120 FS / 6225490 , 0.10MB , pdfUK Declaration of Conformity LGBE 1120 FS / 6225490 , 0.09MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
