Adjustable bend element 110 FS

Item no. 6225492 | EAN 4012196445059

1.5 mm
Product description
Product description
Adjustable bend element with welded rung for use in the cable ladder types with a side height of 110 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Bend (angle) Adjustable
Change of direction Vertical, rising/falling
Colour zinc
Connector version Integrated connector

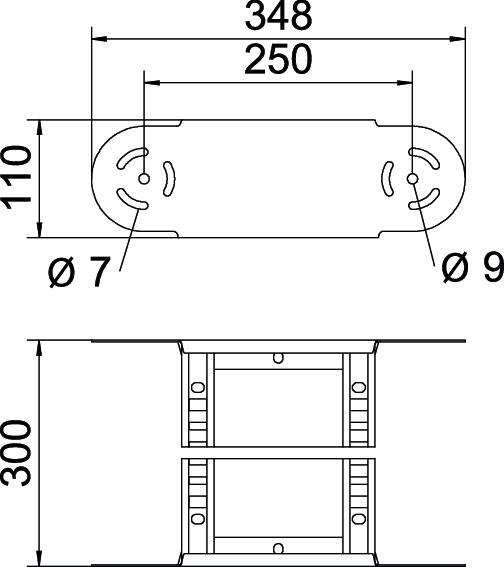

Dimension 110x300
Dimension B 300 mm
Dimension R 300 mm
Height 110 mm
Hinged yes
Maintain electrical functions no
Material Steel
Rail thickness 1,5 mm
Rustproof steel, pickled no
Side perforation no
Side rail version Flat profile
Surface Strip galvanized
Version of the rungs Profile perforated
Wide-span version no
Width 300 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
LGBE 1120 FS 200 mm 1.5 mm 6225490
1 piece
LGBE 1130 FS 300 mm 1.5 mm 6225492
1 piece
LGBE 1140 FS 400 mm 1.5 mm 6225494
1 piece
LGBE 1150 FS 500 mm 1.5 mm 6225496
1 piece
LGBE 1160 FS 600 mm 1.5 mm 6225498
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
100 piece
Adjustable connector FS Adjustable connector FS LGVG 110 FS 6216650
10 piece
