Adjustable bend element 110 FS
Item no. 6225494 | EAN 4012196445066
- Product description
-
Product descriptionAdjustable bend element with welded rung for use in the cable ladder types with a side height of 110 mm.
-
- Technical data
-
Technical data

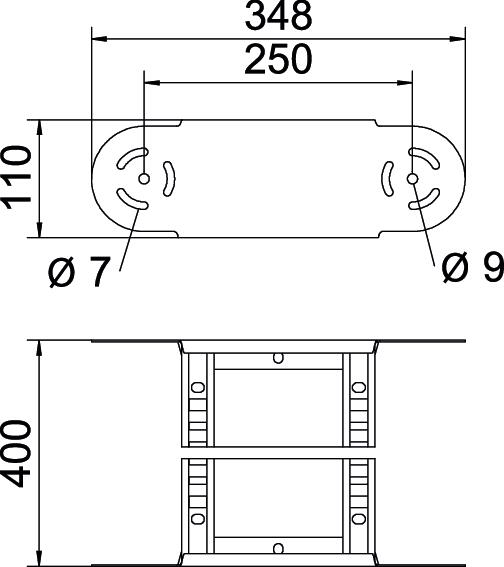

Bend (angle) Adjustable Change of direction Vertical, rising/falling Colour zinc Connector version Integrated connector Dimension 110x400 Dimension B 400 mm Dimension R 400 mm Height 110 mm Hinged yes Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile perforated Wide-span version no Width 400 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece
Adjustable connector FS
LGVG 110 FS 6216650 10 piece - Downloads
-
Data sheet LGBE 1140 FS / 6225494 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LGBE 1140 FS / 6225494 , 0.10MB , pdfUK Declaration of Conformity LGBE 1140 FS / 6225494 , 0.09MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
