Adjustable bend element 60 A4

Item no. / Types

Width

Rail thickness	1.5 mm

Product description

Product description

Adjustable bend element with welded rung for use in cable ladder types with a side height of 60 mm.

Technical data

Bend (angle)	Adjustable
Change of direction	Vertical, rising/falling
Connector version	Integrated connector

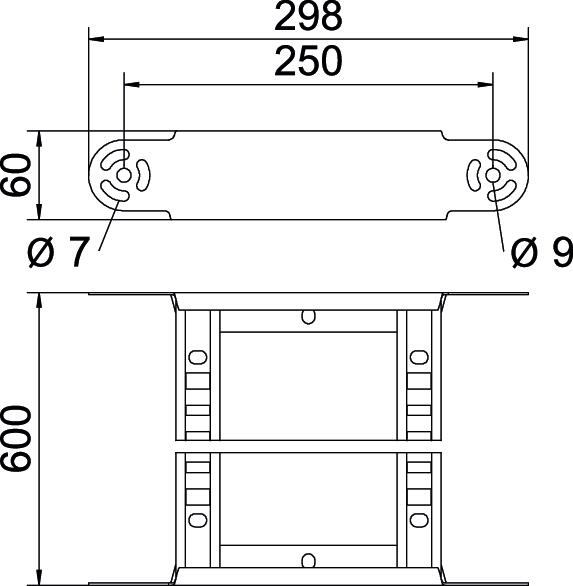

Dimension	60x600
Dimension B	600 mm
Dimension R	600 mm
Height	60 mm
Hinged	no
Maintain electrical functions	no

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
LGBE 620 A4	200 mm	1.5 mm	6225480	piece	1 piece
LGBE 630 A4	300 mm	1.5 mm	6225482	piece	1 piece
LGBE 640 A4	400 mm	1.5 mm	6225484	piece	1 piece
LGBE 650 A4	500 mm	1.5 mm	6225486	piece	1 piece
LGBE 660 A4	600 mm	1.5 mm	6225488	piece	1 piece

Accessories

Products	Types	Item no.	Quantity	SSU
Truss-head bolt with flange nut A4	FRSB 6x12 A4	6406142	piece	100 piece
Adjustable connector A4	LGVG 60 A4	6208932	piece	10 piece

Downloads

Data sheet LGBE 660 A4 / 6225488 , 0.20MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LGBE 660 A4 / 6225488 , 0.10MB , pdf

Download

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf
