- Product description
-
Product description
Adjustable bend element with welded rung for use in the cable ladder types with a side height of 60 mm.
-
- Technical data
-
Technical data
Bend (angle) Adjustable Change of direction Vertical, rising/falling Connector version Integrated connector Dimension 60x400 Hinged no Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile perforated Wide-span version no Dimensions

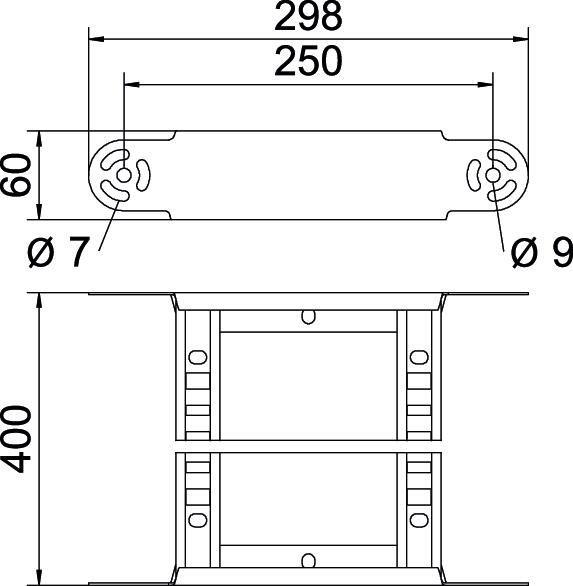

Dimension B 400 mm Dimension R 400 mm Height 60 mm Width 400 mm - All types
- Downloads
-
Data sheet LGBE 640 FS / 6225454 , 0.15MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LGBE 640 FS / 6225454 , 0.16MB , pdfREACH Declaration of conformity LGBE 640 FS / 6225454 , 0.12MB , pdfRoHS Declaration of conformity LGBE 640 FS / 6225454 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf
