Adjustable bend, vertical, VS 60 FT
Item no. 6213324 | EAN 4012196149834
- Product description
-

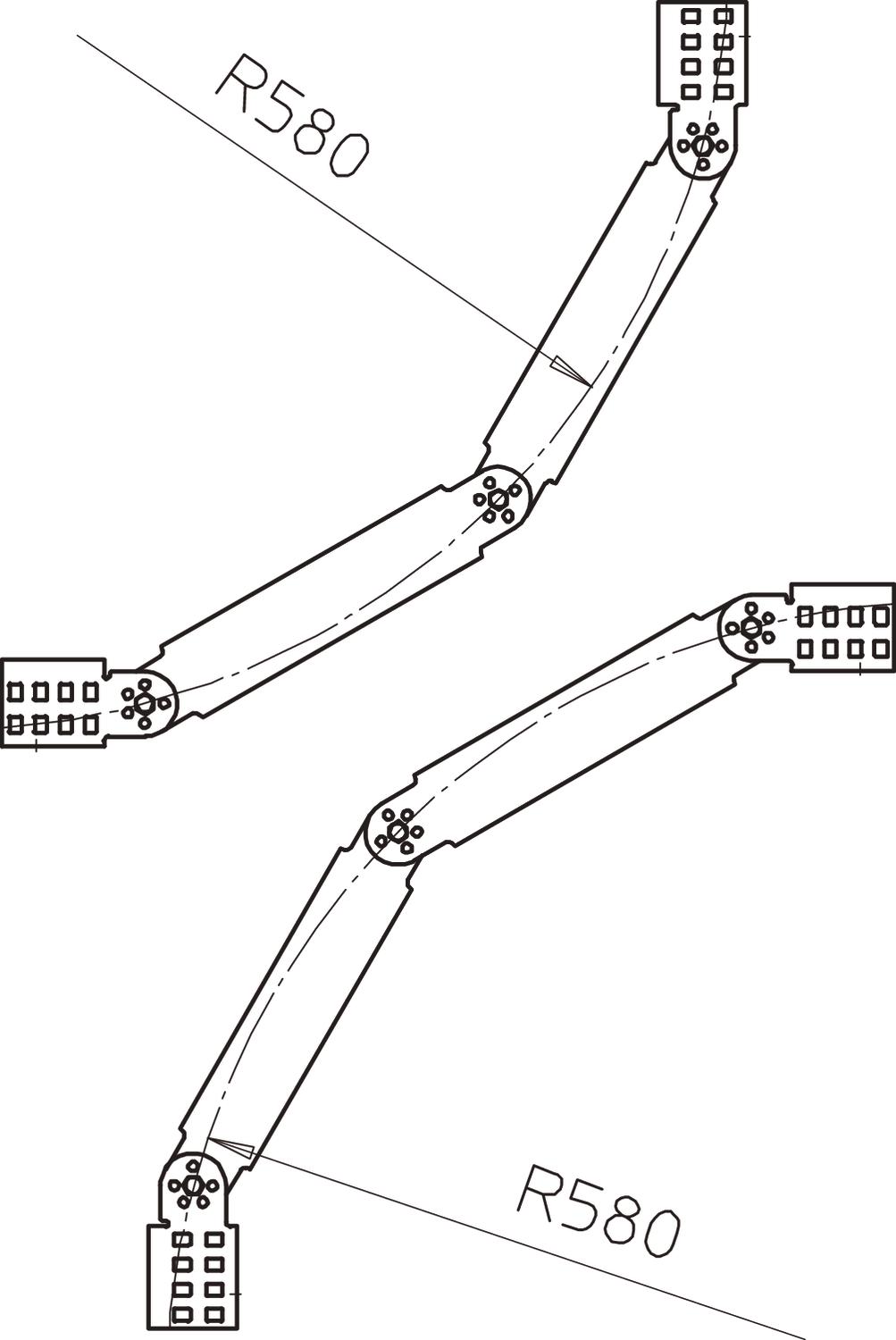

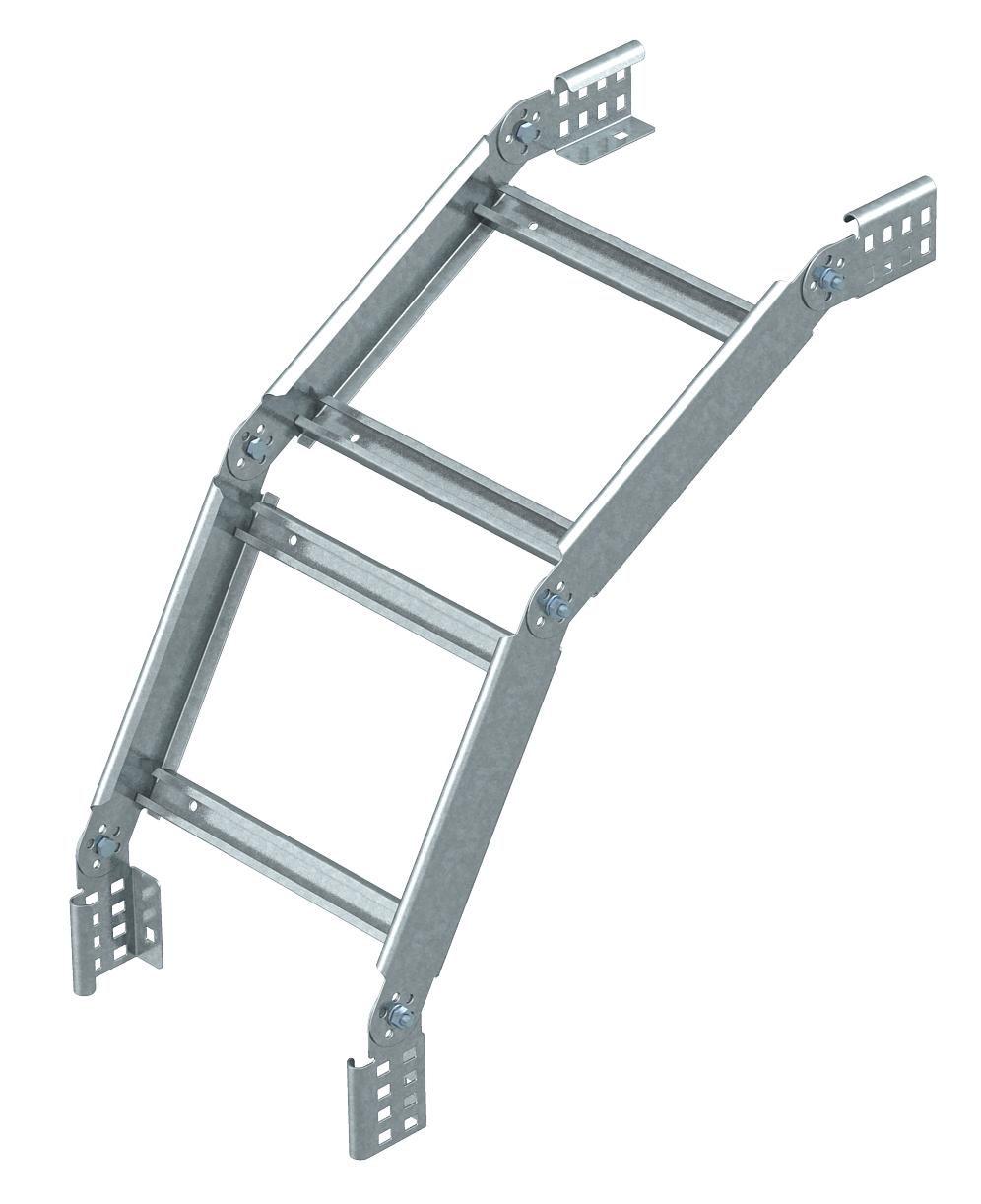

Product description90° adjustable vertical bend, for cable ladders with medium-duty rung (VS) and a side height of 60 mm.
Additional widths are available on request.
-
- Technical data
-
Technical data
Bend (angle) 90° Colour zinc Dimension 60x200 Height 60 mm Hinged yes Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile unperforated Wide-span version no Width 200 mm - All types
