Adjustable connector DD
Item no. 6066941 | EAN 4012196084432
- Product description
-

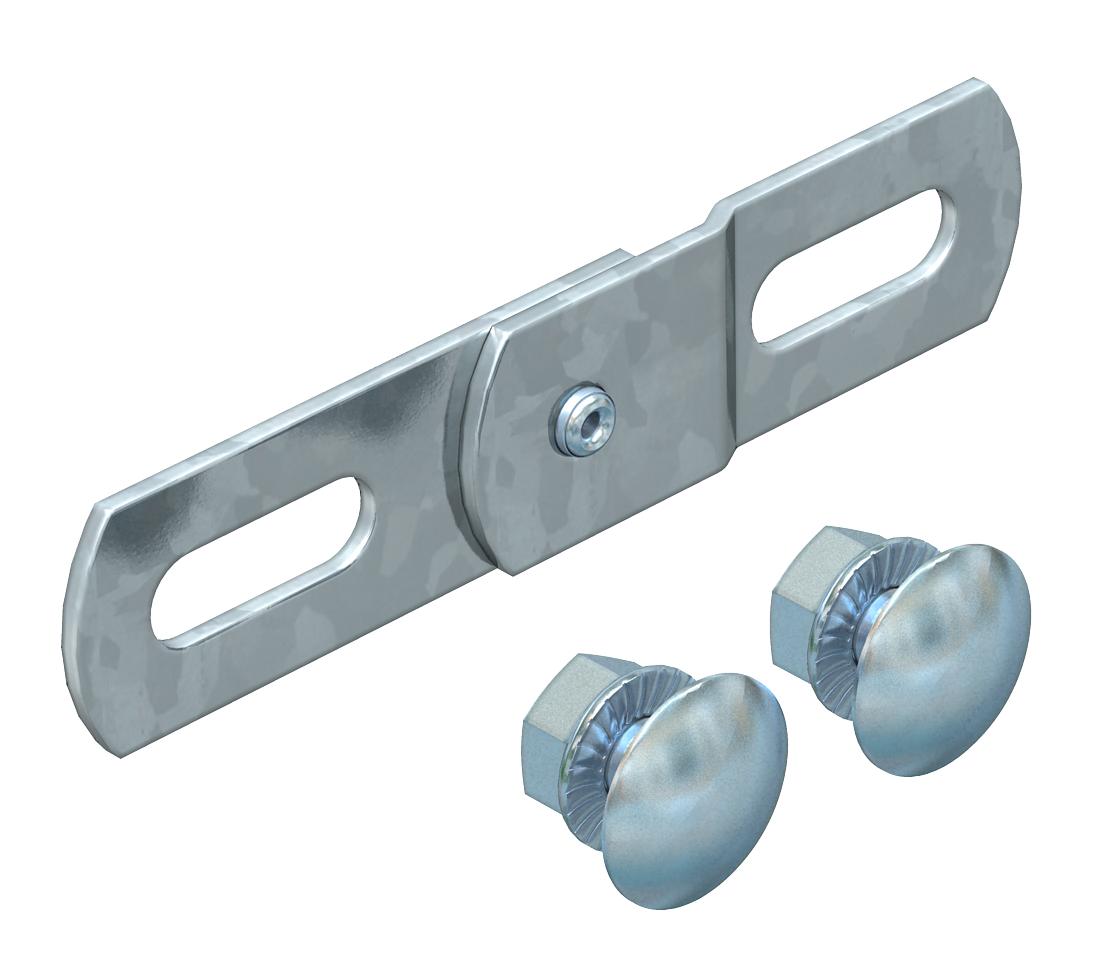

Product descriptionHinge connector for vertical connections of BKK systems.
-
- Technical data
-
Technical data

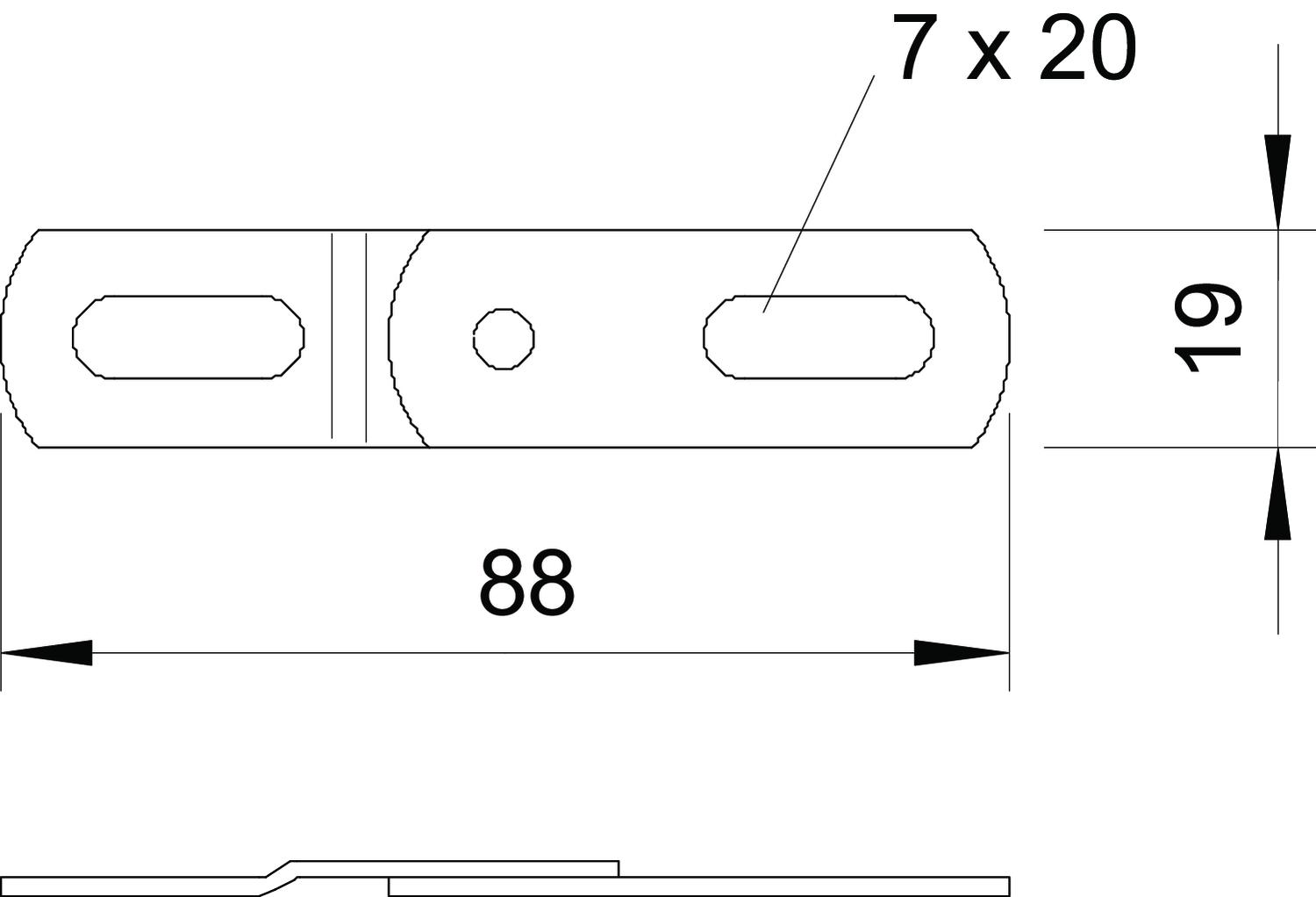

Adjustable connector, horizontal no Articulated connector, vertical yes Colour zinc Connection type Screw connector Dimension 88 x 19 Dimension 19x88 Material Steel Plate thickness 2 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray no Surface Strip galvanised zinc/aluminium, Double Dip - All types
- Downloads
-
Data sheet SV DD / 6066941 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity SV DD / 6066941 , 0.13MB , pdfREACH Declaration of conformity SV DD / 6066941 , 0.12MB , pdfRoHS Declaration of conformity SV DD / 6066941 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
