Adjustable connector FS
Item no. 6216650 | EAN 4012195065739
- Product description
-
Product description

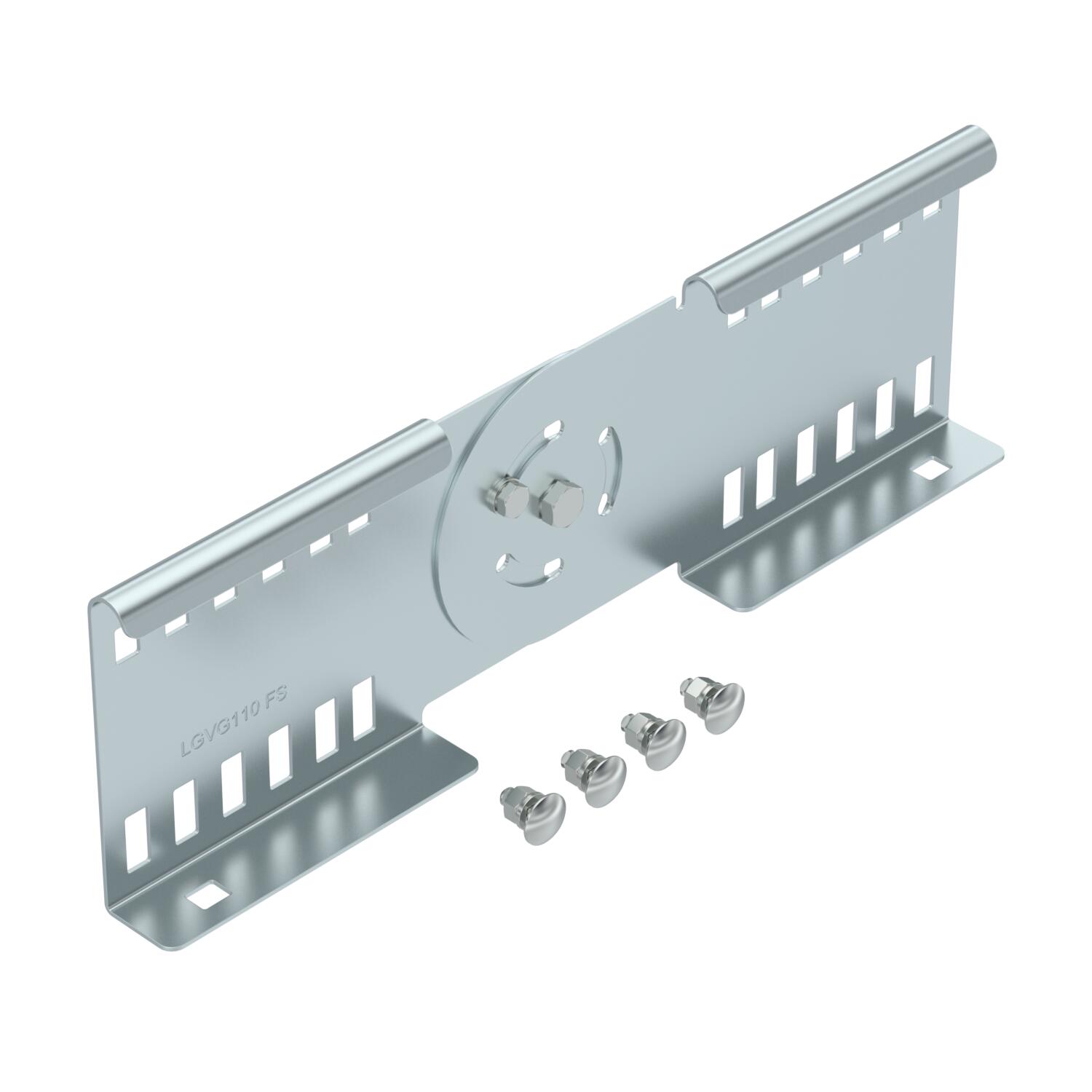

Adjustable connector as internal connector to join cable ladders and fittings with a side height of 110 mm. Angle can be adjusted vertically.
-
- Technical data
-
Technical data

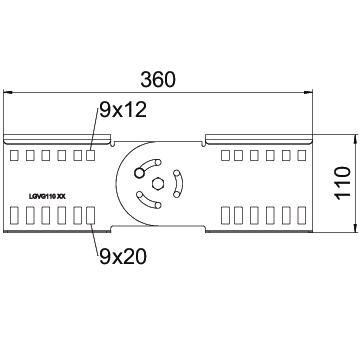

Adjustable connector, horizontal no Articulated connector, vertical yes Connection type Screw connector Dimension 114x360 Height 110 mm Length 360 mm Material Steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Suitable for cable tray system height 110 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Straight and angle connector Width 28 mm - All types
- Downloads
-
Data sheet LGVG 110 FS / 6216650 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LGVG 110 FS / 6216650 , 0.10MB , pdfUK Declaration of Conformity LGVG 110 FS / 6216650 , 0.14MB , pdfREACH Declaration of conformity LGVG 110 FS / 6216650 , 0.12MB , pdfRoHS Declaration of conformity LGVG 110 FS / 6216650 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
