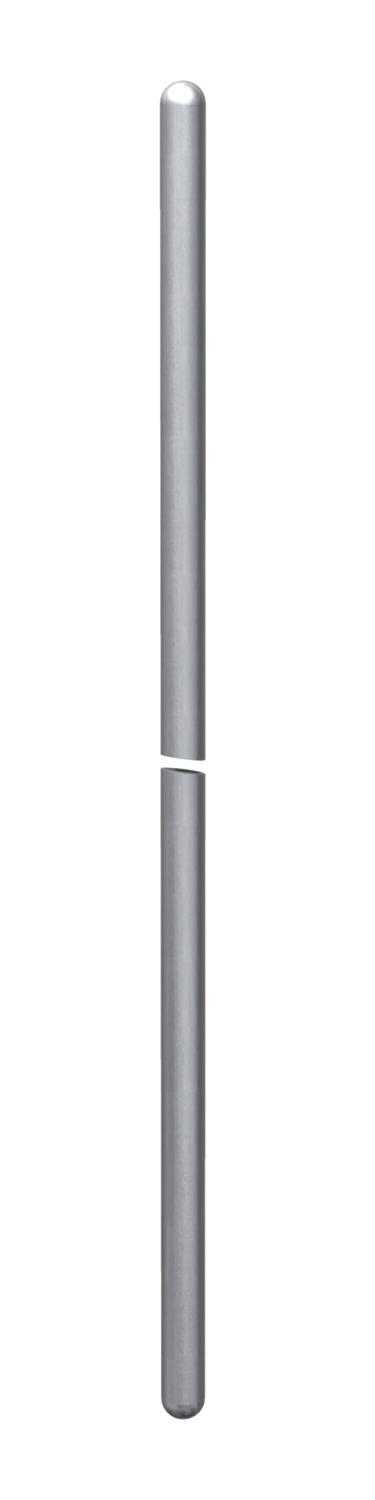

Air-termination/earth entry rod, rounded-off on both ends FT

Item no. 5400155 | EAN 4012195427575

5400155 / 101 A-1500
1500 mm
16 mm
Product description

Product description

• Full material Ø 16 mm
• Both ends rounded

Technical data

Technical data

Connection Round conductor

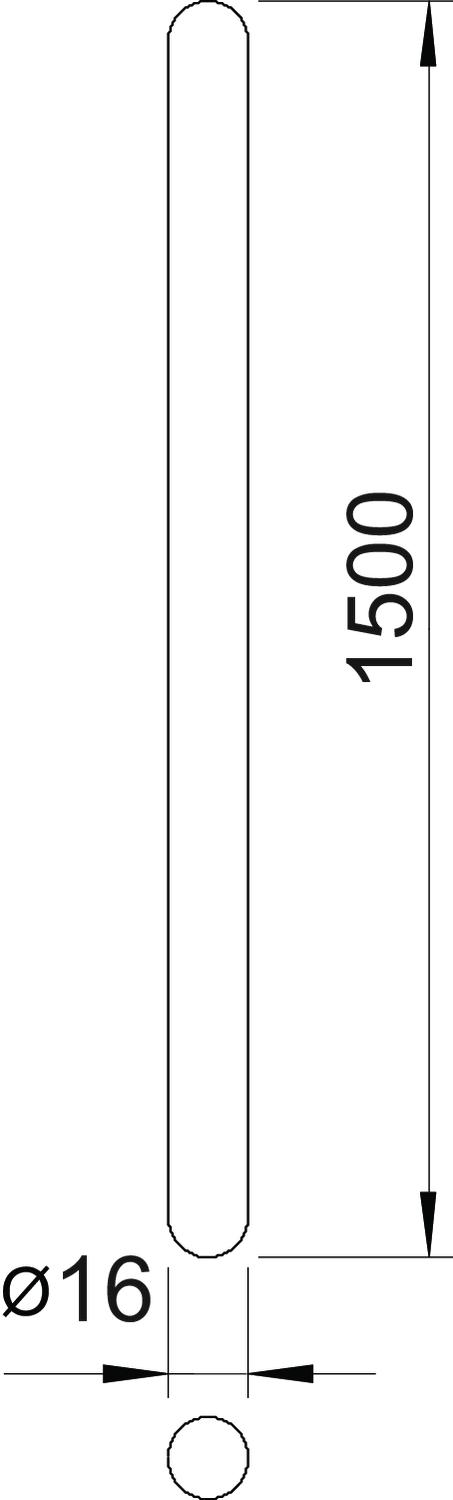

Dimension 1500mm
Dimension L 1500 mm
High voltage-resistant, insulated version no
Length 1500 mm
Material Steel
Nominal size Ø 16 mm
Surface Hot-dip galvanised
Version for Air-termination rod
All types

All types

Types Length Nominal size Ø Item no. Quantity SSU
101 A-1500 1500 mm 16 mm 5400155
10 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Cross-connector for Rd 8−10 x Rd 16 Cross-connector for Rd 8−10 x Rd 16 253 10X16 5312809
25 piece

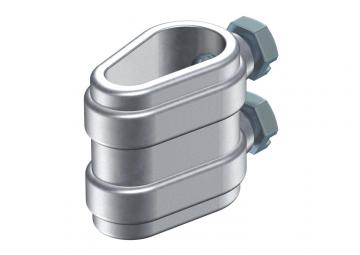

Separating piece, open Separating piece, open 223 O DIN ZN 5335140
20 piece

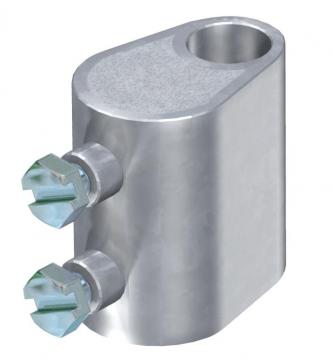

Separating piece, closed Separating piece, closed 223 DIN ZN 5335205
20 piece

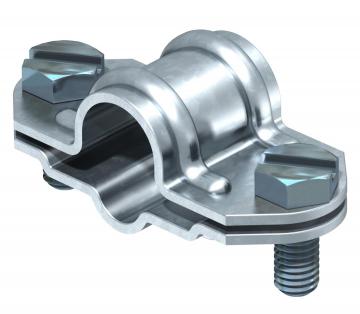

Universal separating piece FT Universal separating piece FT 226 8-10 5336007
20 piece
