Air-termination/earth entry rod, rounded-off on both ends VA 1500 | 16
morepic-1 morepic-2 video-1

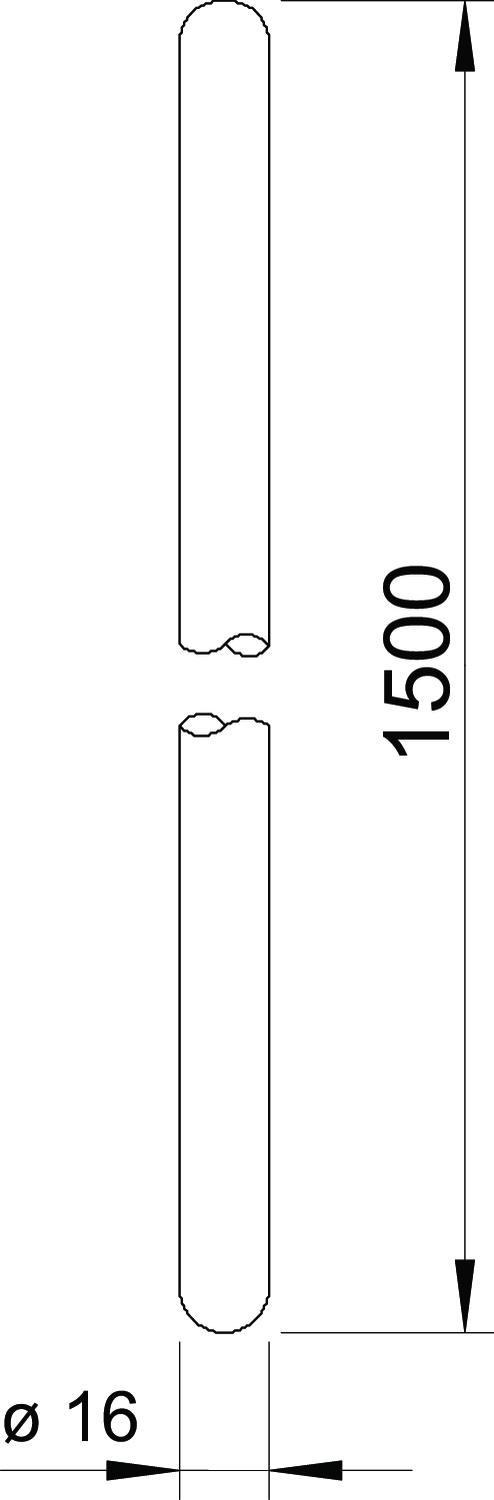

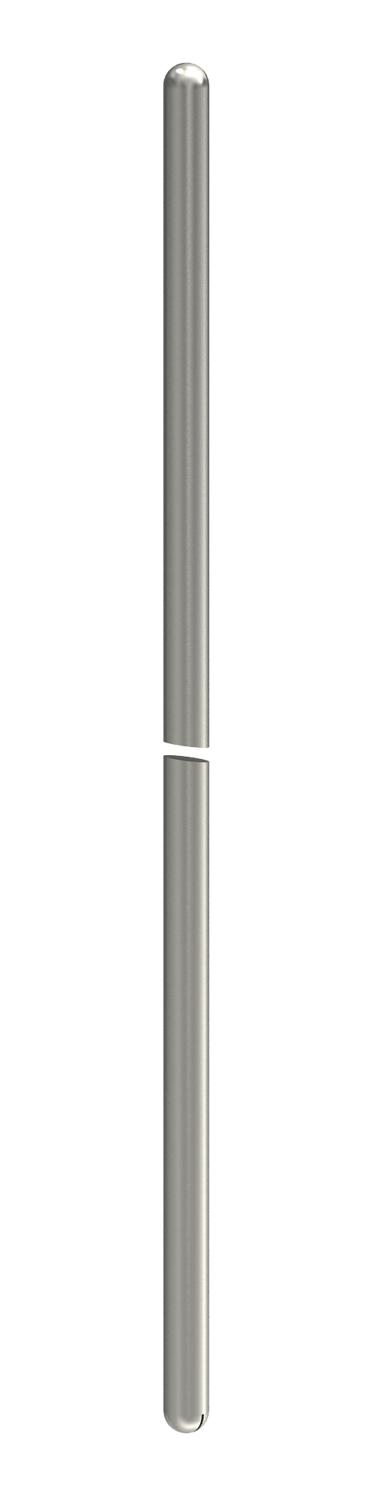

Air-termination/earth entry rod, rounded-off on both ends VA

Item no. 5420504 | EAN 4012195751571

16 mm
Product description
Product description
• Full material Ø 16 mm
• Both ends rounded

Technical data

Technical data

Dimension 1500mm
Dimension L 1500 mm
Length 1500 mm
Material Stainless steel
Nominal size Ø 16 mm
Tapered no
With attaching holes no
All types

All types

Types Length Nominal size Ø Item no. Quantity SSU
200 V4A-1500 1500 mm 16 mm 5420504
10 piece
200 V4A-2000 2000 mm 16 mm 5420539
10 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4 Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4 252 8-10x16 V4A 5312346
10 piece

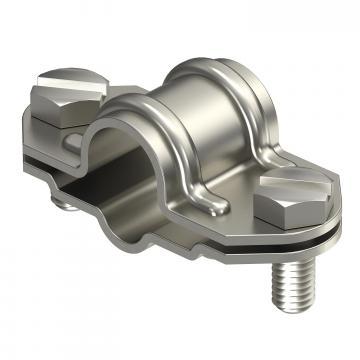

Universal separating piece A2 Universal separating piece A2 226 VA 5336058
10 piece
Downloads

Download

Download
Download

REACH Declaration of conformity 200 V4A-1500 / 5420504 , 0.12MB , pdf
Download
RoHS Declaration of conformity 200 V4A-1500 / 5420504 , 0.12MB , pdf
Download

200 V4A-1500 / 5420504
