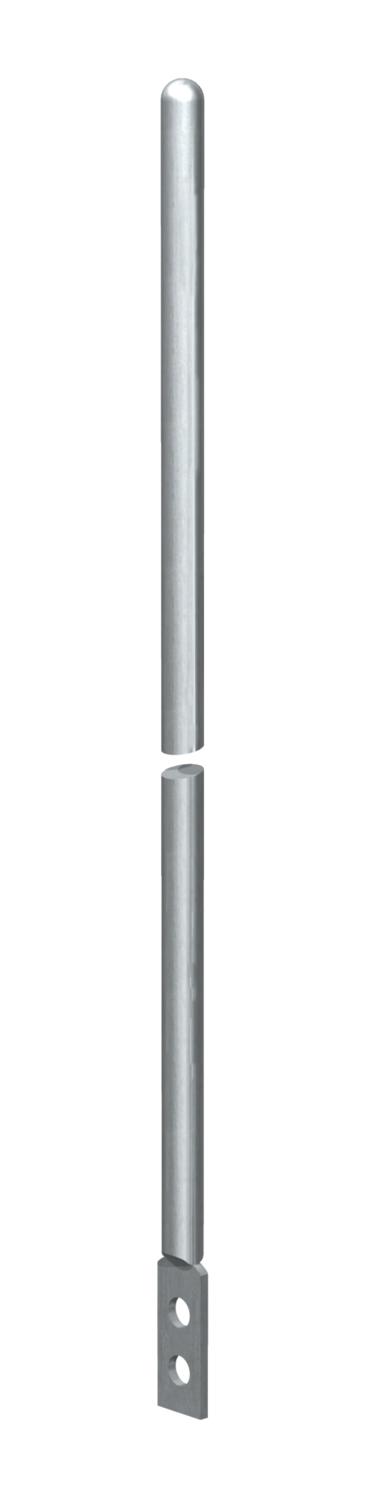

Air-termination/earth entry rod with connection tabs

Item no. / Types

Length

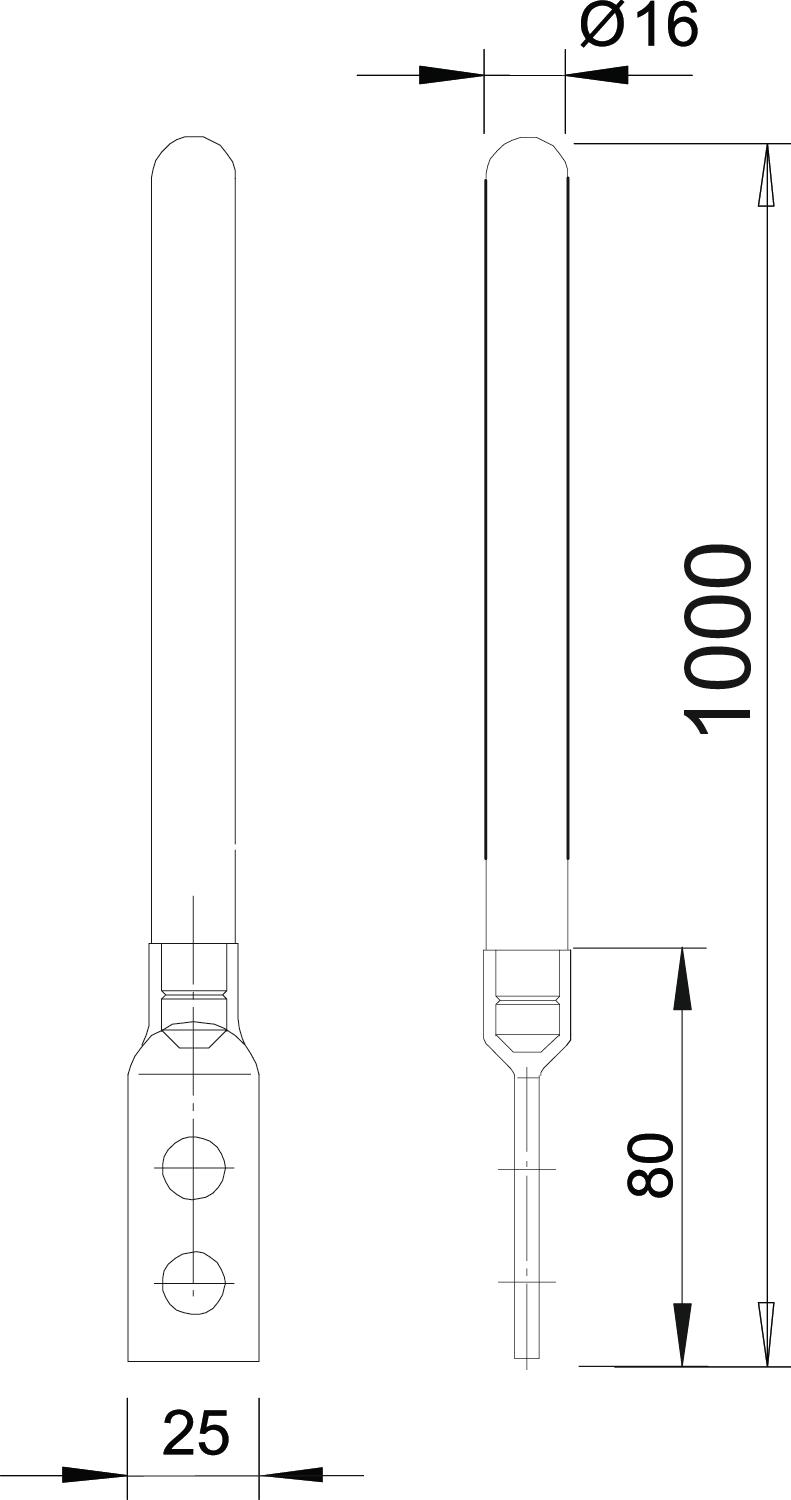

Nominal size Ø	16 mm

Product description

Product description

• With 2 attaching holes Ø 12 mm
• One end rounded

Technical data

Connection	Round conductor
Dimension	1000mm
High voltage-resistant, insulated version	no
Material	Steel

Dimension L	1000 mm

Length	1000 mm

All types

All types

Types	Length	Nominal size Ø	Item no.	Quantity	SSU
101 F1000	1000 mm	16 mm	5424100	piece	1 piece
101 F1500	1500 mm	16 mm	5424151	piece	1 piece
101 F2000	2000 mm	16 mm	5424208	piece	1 piece

Downloads

Data sheet 101 F1000 / 5424100 , 0.17MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

101 F1000 / 5424100
