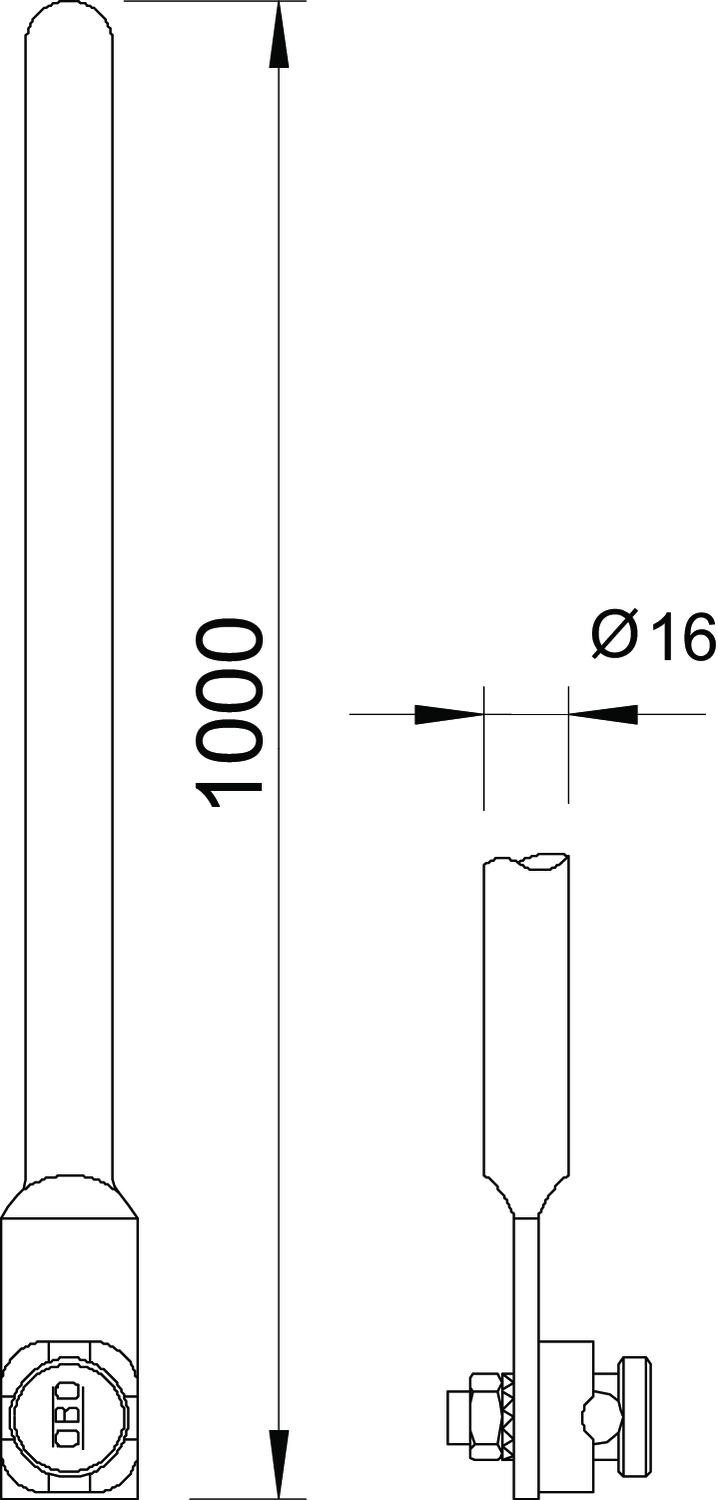

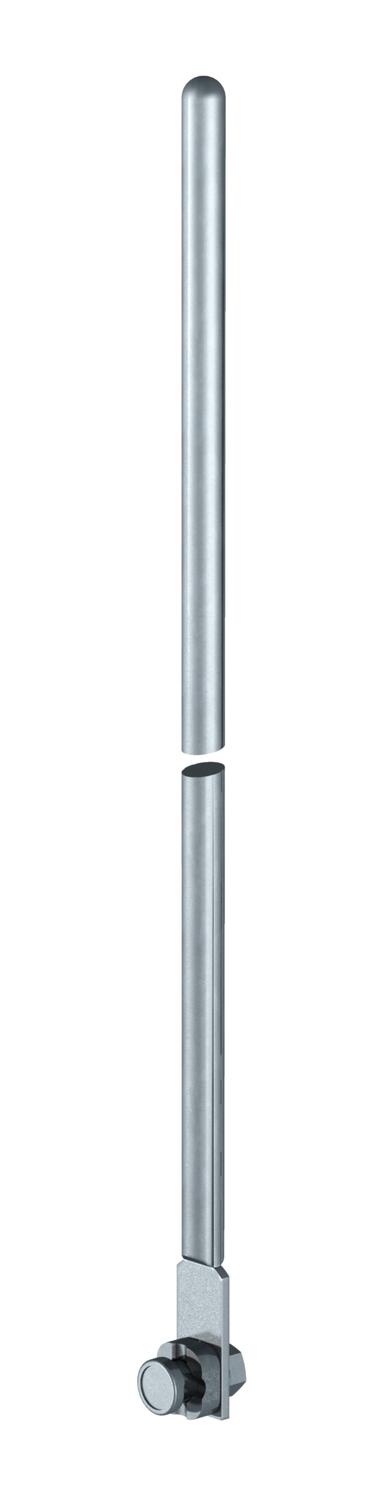

Air-termination/earth entry rod with connection tabs and connector

Item no. / Types

Length

Nominal size Ø	16 mm

Product description

Product description

• 1 attaching hole Ø 12 mm
• With pre-mounted conductor for Rd 8-10
• One end rounded

Technical data

Connection	Round conductor
Dimension	1000mm
High voltage-resistant, insulated version	no
Material	Steel

Length	1000 mm

All types

Types	Length	Nominal size Ø	Item no.	Quantity	SSU
101 G1000	1000 mm	16 mm	5402107	piece	1 piece
101 G1500	1500 mm	16 mm	5402158	piece	1 piece

Downloads

Data sheet 101 G1000 / 5402107 , 0.16MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

101 G1000 / 5402107
