Air-termination rod holder for ridge tiles

Item no. 5403330 | EAN 4012195613572

Product description

Product description

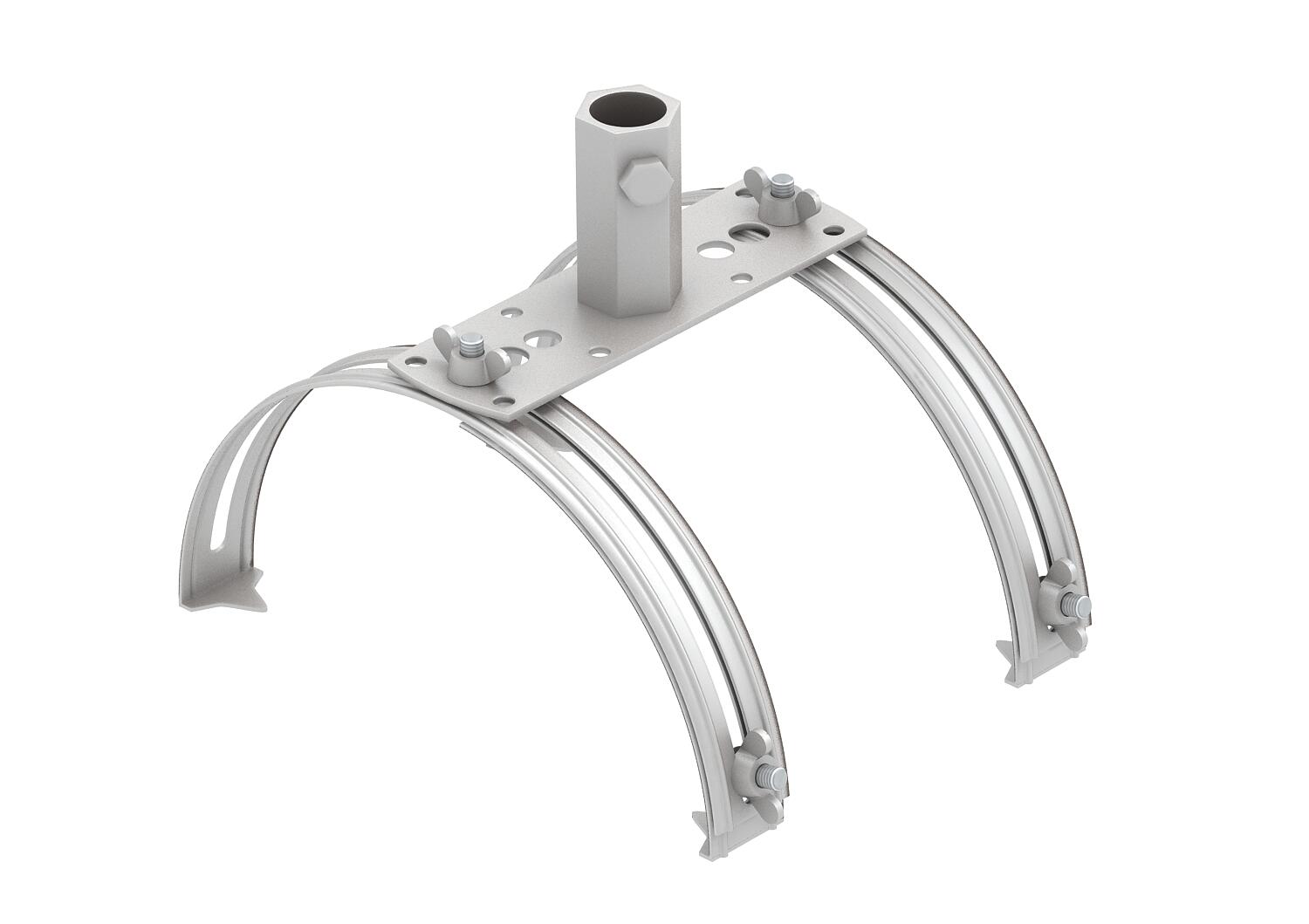

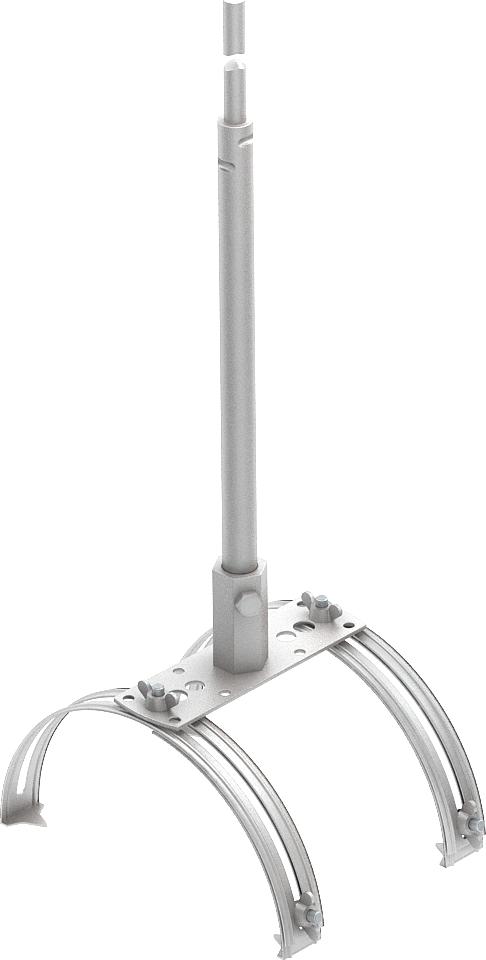

Rod holder for ridge tiles, for simple, quick and safe fastening of Ø 16 mm air-termination rods


• System consisting of holder made of V2A stainless steel and aluminium air-termination rods

• Quick and easy mounting thanks to pre-mounted air-termination rod

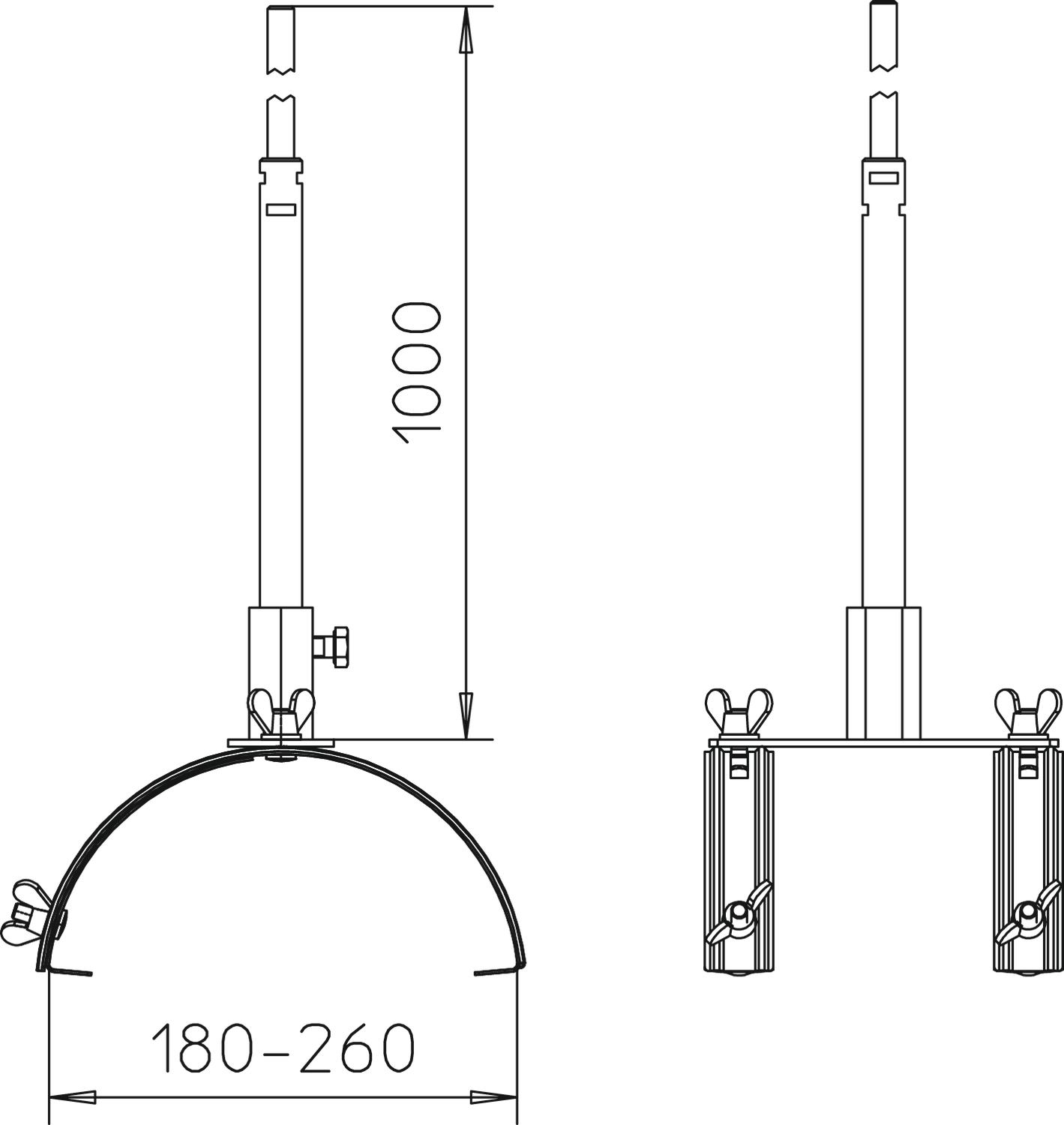

• Air-termination rod length: 1,000 mm

• Width adjustable between 180−260 mm

• Spacing of the ridge holders: 110 mm (5403330)

• Spacing of the ridge holders: 300 mm (5403333)


Application: To protect roof structures such as photovoltaic and TV/SAT systems.


Technical data

Technical data

Dimension 1m
Dimension L 110 mm
Material Stainless steel
All types

All types

Types Dimension L Item no. Quantity SSU
F-FIX-132 110 mm 5403330
1 piece
F-Fix-132-300 300 mm 5403333
1 piece
