Air-termination rod holder for sloping roof
Item no. 5403335 | EAN 4012195670735
- Product description
-
Product description

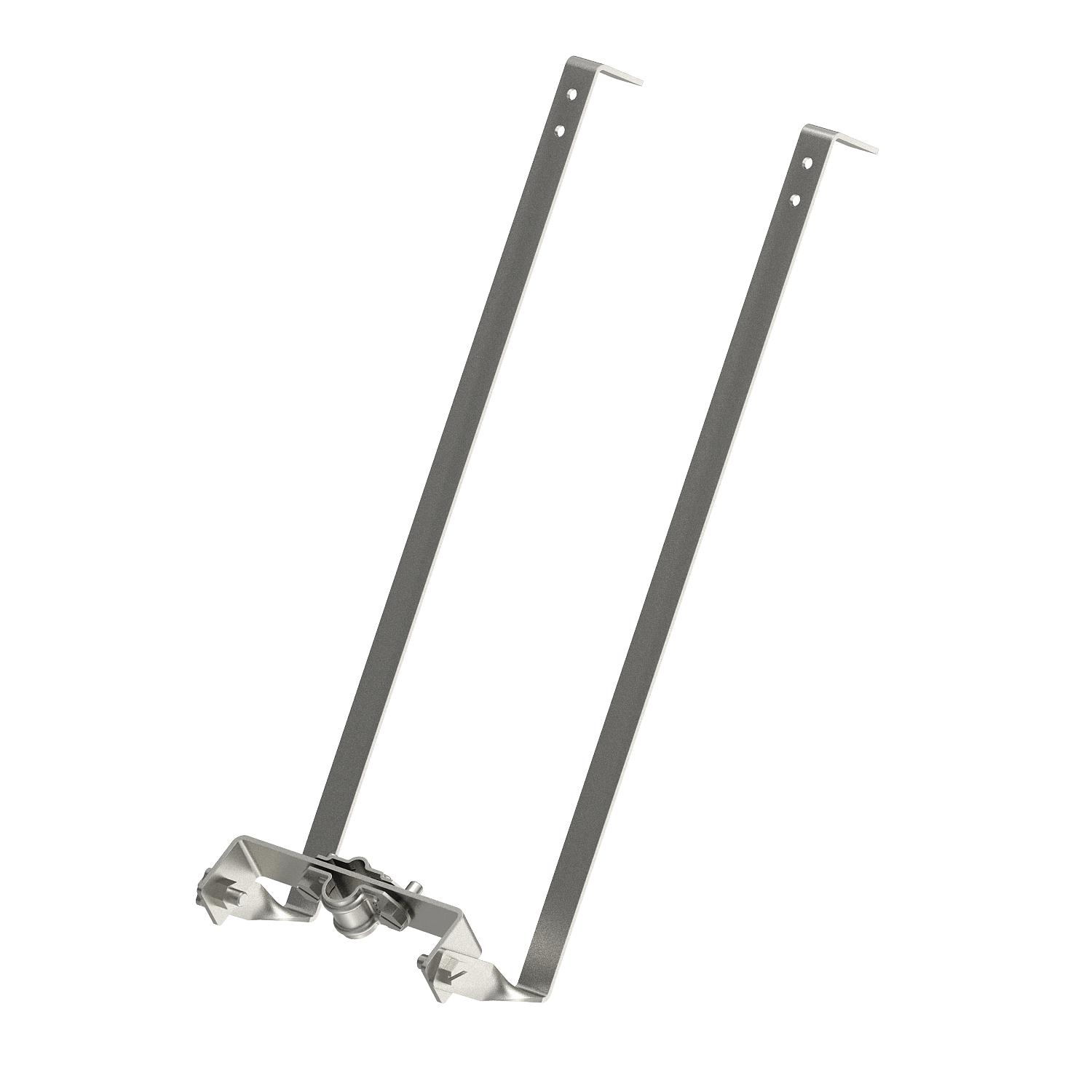

Stand system: rod holder for pitched roofs, for simple, quick and secure fastening of Ø 16 mm air-termination rods.
• System consists of a bracket made of V2A stainless steel
• Quick and easy mounting
• Adjustable angle
• In the case of high air-termination rods (> 1 m), additional fastening with insulated spaces is necessary
- Technical data
-
Technical data

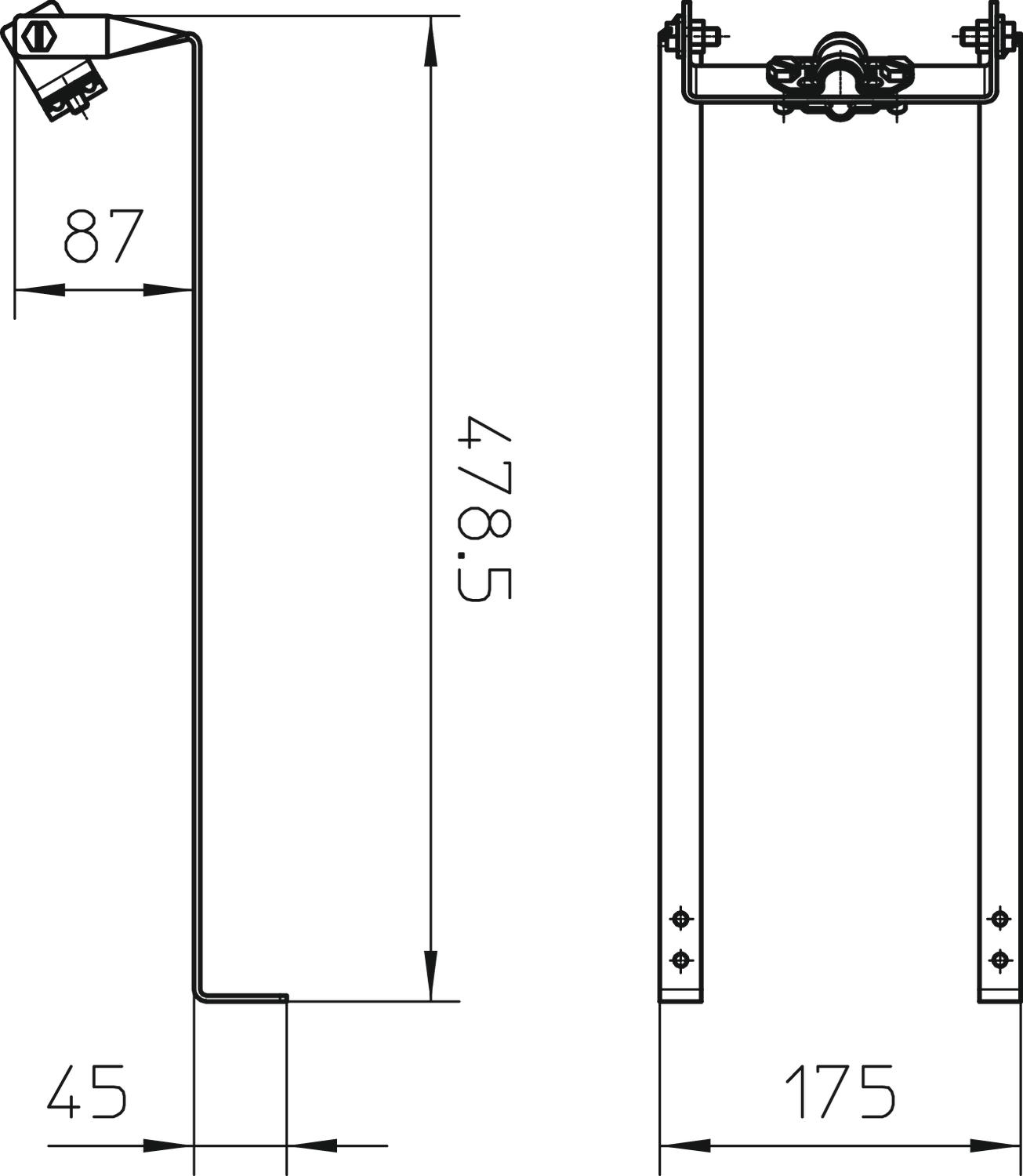

Dimension Rd16 Holder fastening type Drill hole Material Stainless steel Material of the base Stainless steel, rustproof 1.4301 Rod fastening type With screw clip Dimensions
Dimension d min. 16 mm Length 478,5 mm - All types
- Downloads
-
Data sheet SD-Fix / 5403335 , 0.20MB , pdfDeclaration of conformity SD-Fix / 5403335 , 0.06MB , pdfREACH Declaration of conformity SD-Fix / 5403335 , 0.12MB , pdfRoHS Declaration of conformity SD-Fix / 5403335 , 0.12MB , pdf
