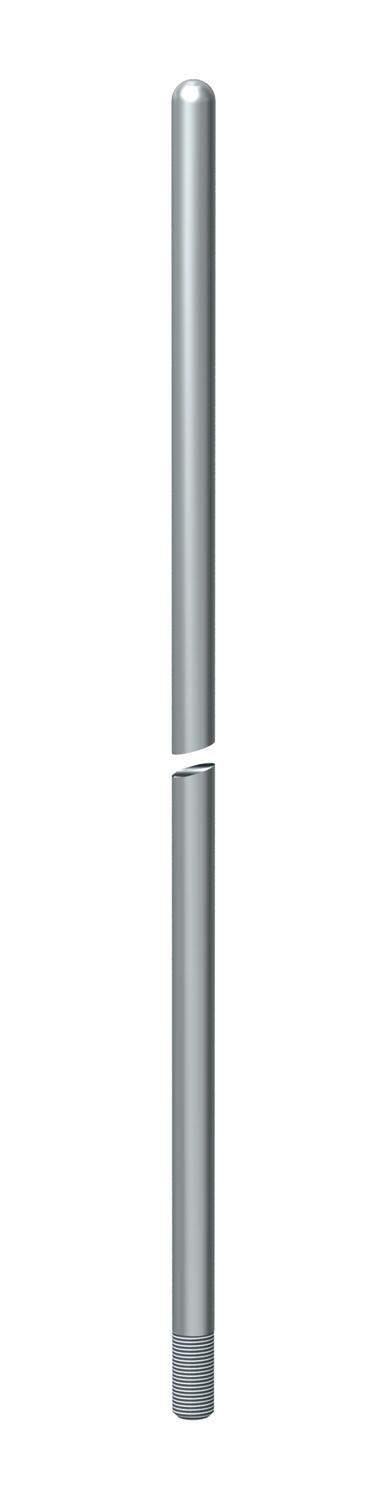

Air-termination rod, one end rounded, M16 thread

Item no. 5401771 | EAN 4012195901334

16 mm
Product description

Product description

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• From a free length of > 2.5 m, an additional fastening, e.g. insulated
spacer is recommended
• Ø 16 mm, aluminium
• For stand system with M16 internal thread

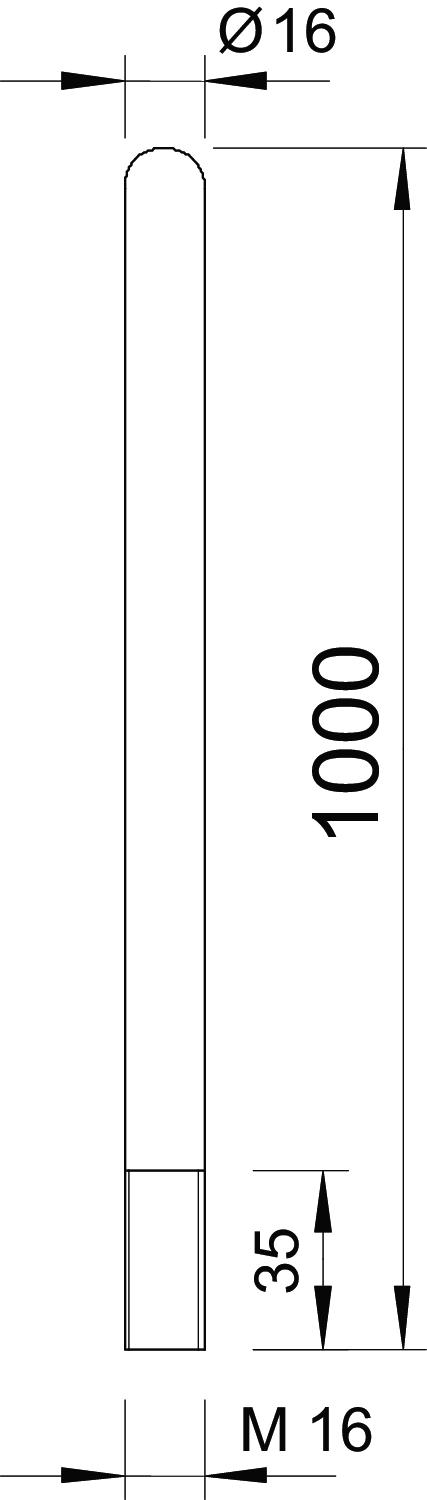

Technical data

Technical data

Connection Round conductor
Dimension 1000mm
Dimension L 1000 mm
High voltage-resistant, insulated version no
Length 1000 mm
Material Aluminium
Nominal size Ø 16 mm
Version for Air-termination rod with thread
All types

All types

Types Length Nominal size Ø Item no. Quantity SSU
101 ALU-1000 1000 mm 16 mm 5401771
10 piece
101 ALU-1500 1500 mm 16 mm 5401801
10 piece
101 ALU-2000 2000 mm 16 mm 5401836
10 piece
101 ALU-2500 2500 mm 16 mm 5401852
10 piece
101 ALU-3000 3000 mm 16 mm 5401879
5 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Stand 6.9 kg with female thread Stand 6.9 kg with female thread 101 ST 5402891
4 piece
Concrete base min. 16 kg with female thread Concrete base min. 16 kg with female thread 101 B2-16 M16 5402958
1 piece
