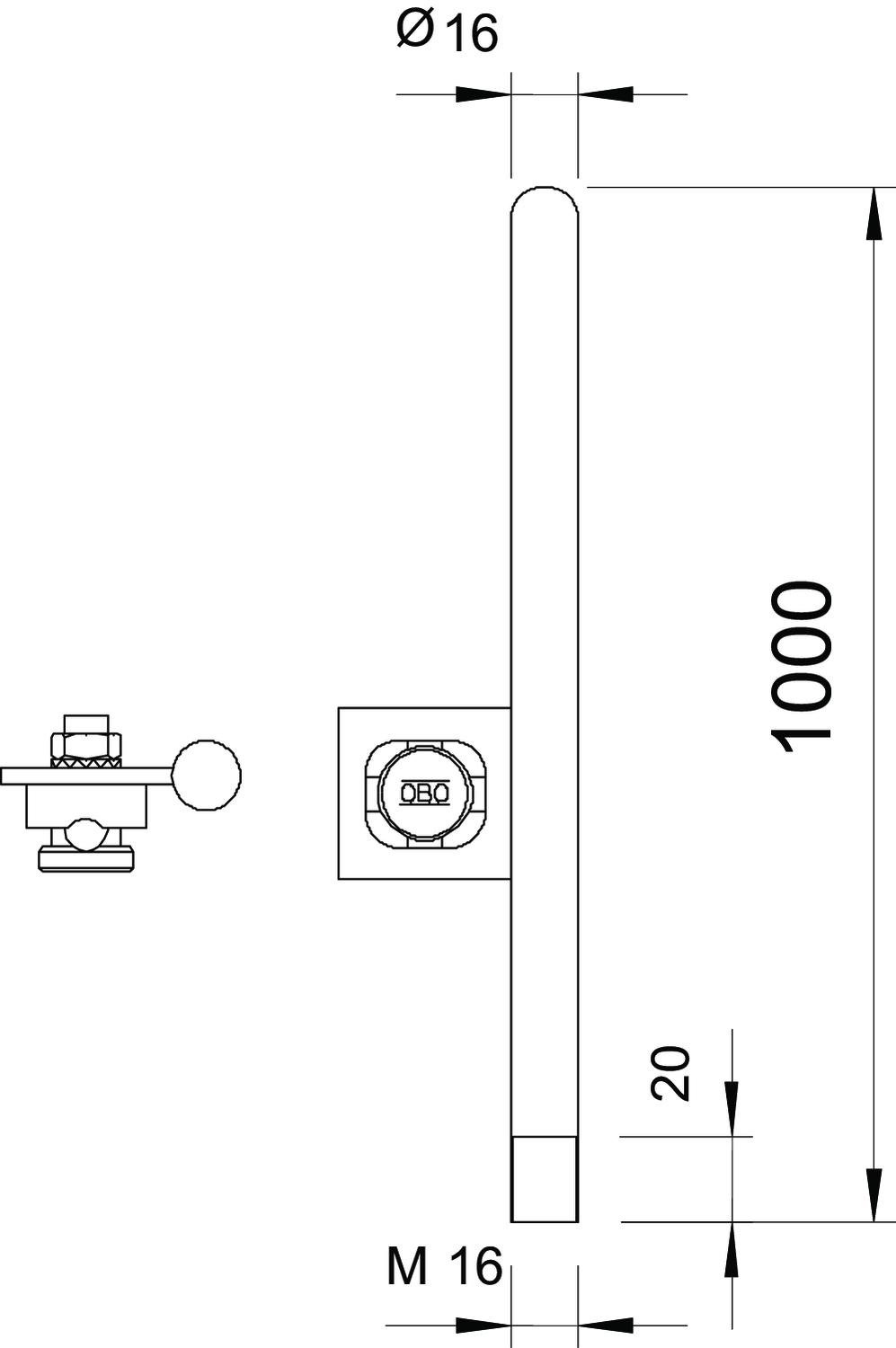

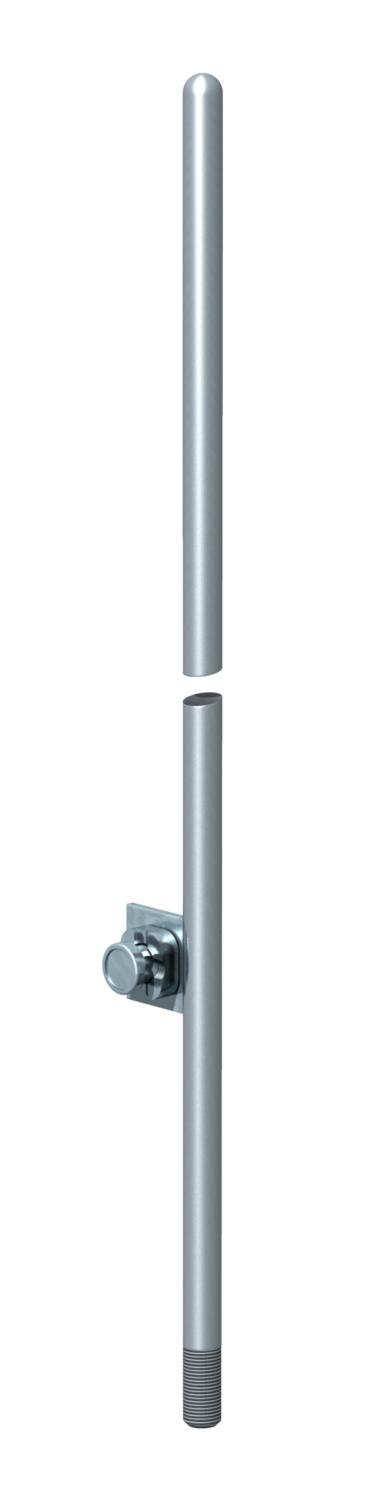

Air-termination rod, one end rounded, M16 thread

Item no. 5402808 | EAN 4012195428411

16 mm
Product description

Product description

• With thread M16 x 20
• With connecting strap
• Including pre-mounted connector type 5001 DIN for round conductor Rd 8-10
• For stands with female thread M16
Technical data

Technical data

Connection Round conductor
Dimension 1000mm
Dimension L 1000 mm
High voltage-resistant, insulated version no
Length 1000 mm
Material Steel
Nominal size Ø 16 mm
Surface Hot-dip galvanised
Version for Air-termination rod
All types

All types

Types Length Nominal size Ø Item no. Quantity SSU
101 A-L100 1000 mm 16 mm 5402808
10 piece
101 A-L150 1500 mm 16 mm 5402859
10 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Stand 6.9 kg with female thread Stand 6.9 kg with female thread 101 ST 5402891
4 piece

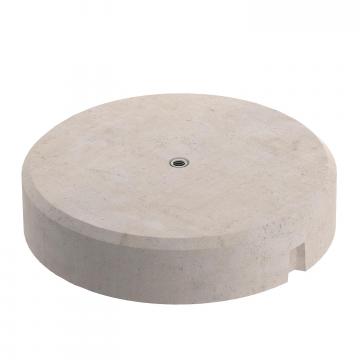

Concrete base min. 16 kg with female thread Concrete base min. 16 kg with female thread 101 B2-16 M16 5402958
1 piece
