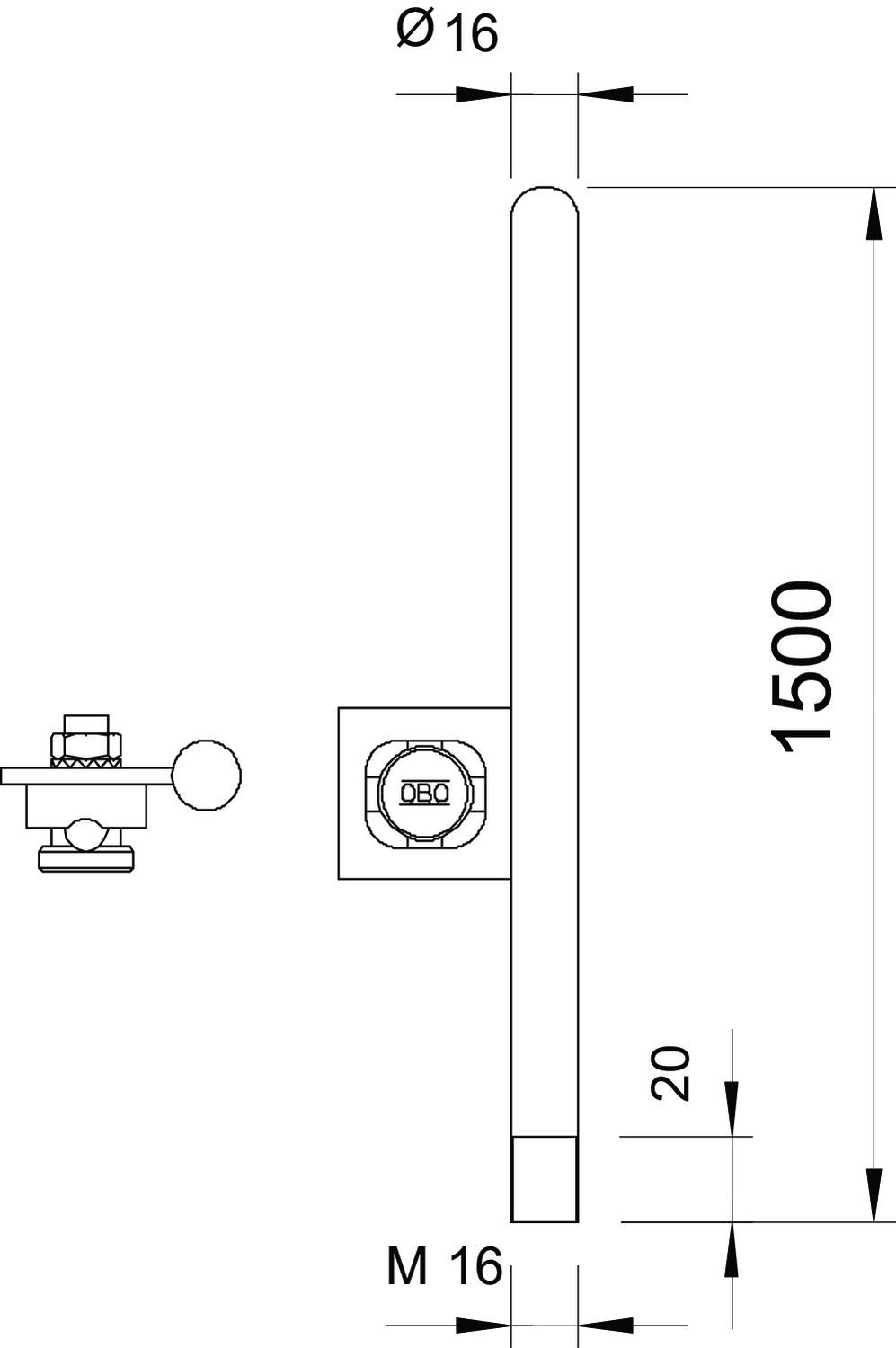

Air-termination rod, one end rounded, M16 thread
Item no. 5402859 | EAN 4012195428473
- Product description
-
Product description
• With thread M16 x 20
• With connecting strap
• Including pre-mounted connector type 5001 DIN for round conductor Rd 8-10
• For stands with female thread M16
- Technical data
-
Technical data
Connection Round conductor Dimension 1500mm High voltage-resistant, insulated version no Material Steel Nominal size Ø 16 mm Surface Hot-dip galvanised Version for Air-termination rod Dimensions
Dimension L 1500 mm Length 1500 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Stand 6.9 kg with female thread
101 ST 5402891 4 piece
Concrete base min. 16 kg with female thread
101 B2-16 M16 5402958 1 piece - Downloads
-
Data sheet 101 A-L150 / 5402859 , 0.19MB , pdf
