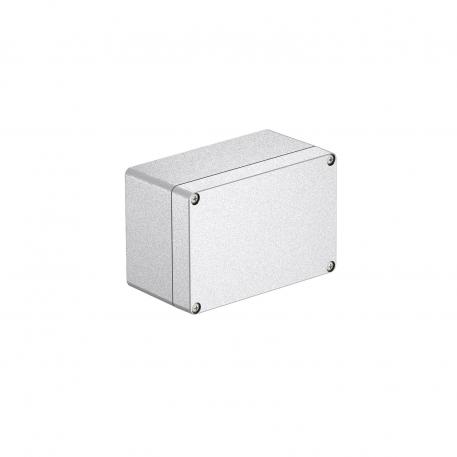

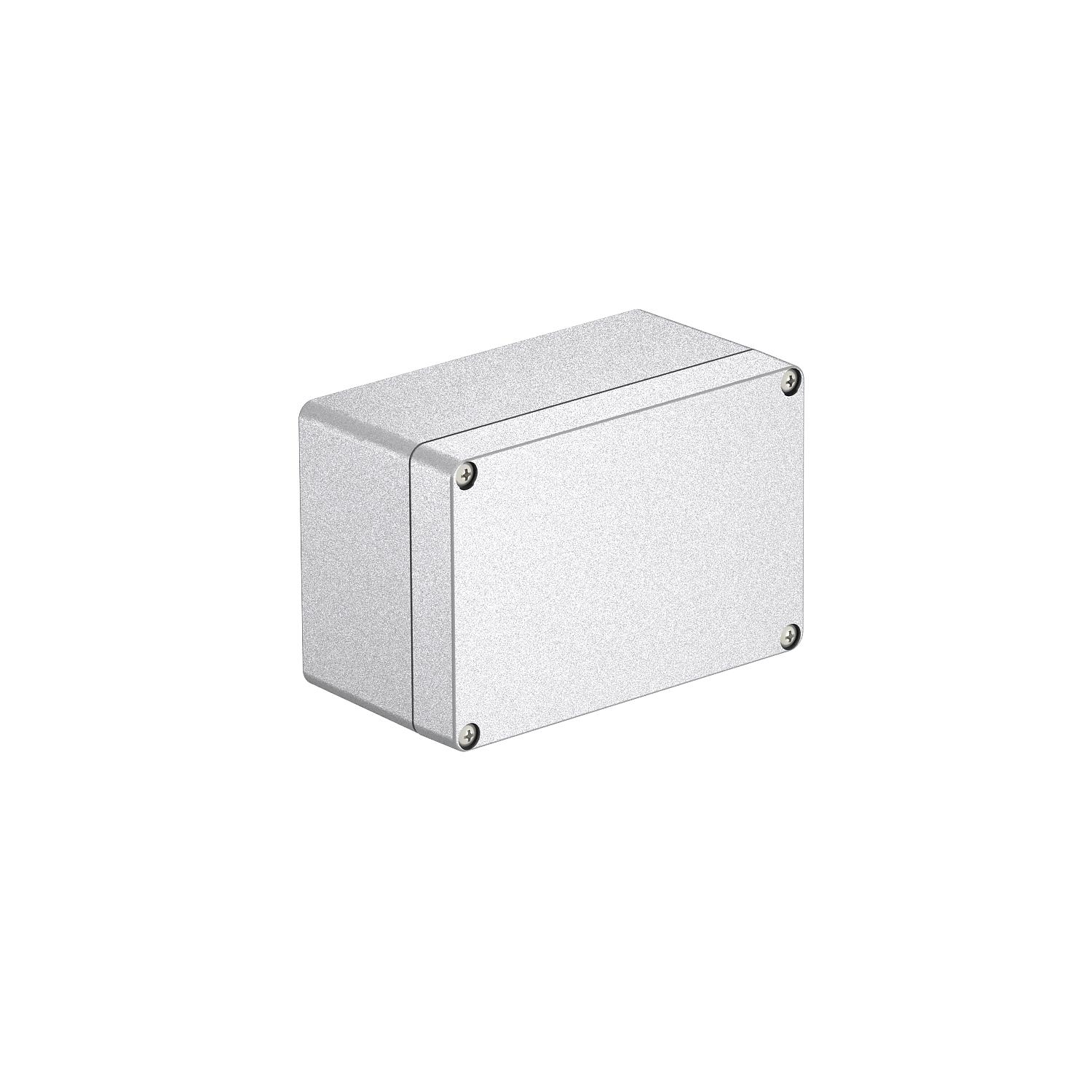

Aluminium empty housing Mx12, paintable

Item no. 2011386 | EAN 4012196622658

Product description

Product description

Robust aluminium empty housing for mechanical engineering and automation technology.

The OBO Mx series’ excellent features make it most suitable for extreme demands in all different areas. It is therefore also best suited for applications in industry, ports and shipbuilding, as well as in the agricultural sector.

The series’ properties protect the electrical installation when under extreme strain. The products withstand both great cold and heat as well as impacts or kicks on roads, railways or in tunnels.

With a protection rating of up to IP66, they are optimally protected against the intrusion of water. The aluminium is of course UV-resistant and halogen-free. The cover seal is made from polyurethane.

The aluminium housings are chrome 3-coated and are delivered with a cover including stainless steel screws, a seal and 2 or 4 earthing screws.

The chrome 3 surface provides good contact when using metal fittings and can easily be painted or powder-coated.


Temperature: -40°C  to +125°C
  • Protection rating IP 66
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UV-resistant
  • RoHS-conformant
  • Halogen-free; without chlorine, fluorine and bromine
  • Bolt-firing tool
  • Nail device
Technical data

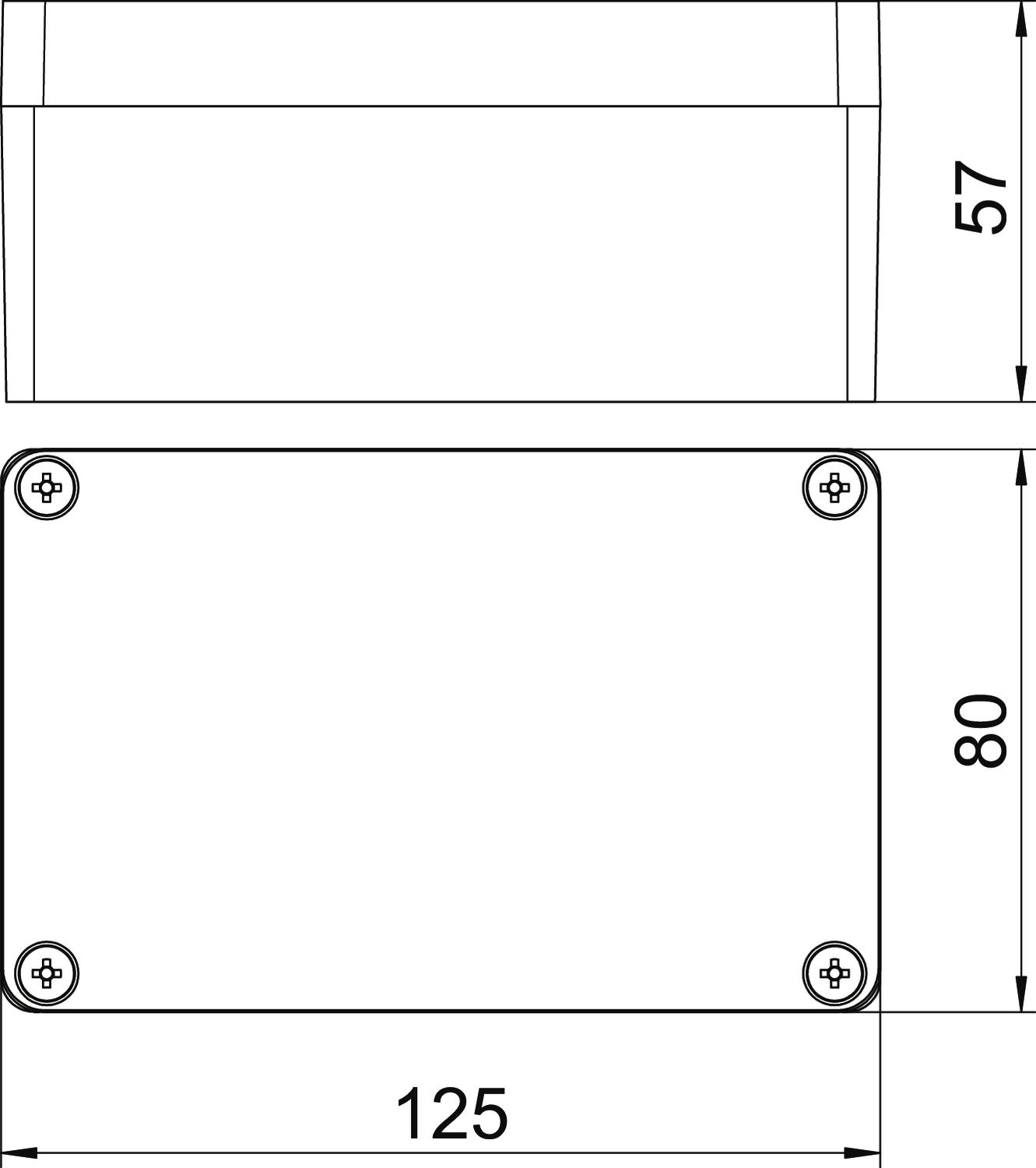

Dimensions

Clear internal dimensions 115,5x70,5x51 mm
Cover fastening Screwed
Dimension 125x80x57
Extension option yes
Height 57 mm
Length 125 mm
Material Cast aluminium
Permitted temperature range, max. 125 °C
Permitted temperature range, min. -40 °C
Protection rating IP66
Shape Rectangular
Suitable for lightning protection no
Suitable for outdoor use yes
Surface Chrome III coating
Version, small distributor cover Closed
Weatherproof yes
Width 80 mm
with lid yes
With mounting plate no
All types

All types

Types Length Width Height Item no. Quantity SSU
Mx 060503 CR3 64 mm 58 mm 34 mm 2011378
1 piece
Mx 080705 CR3 80 mm 75 mm 57 mm 2011381
1 piece
Mx 120805 CR3 125 mm 80 mm 57 mm 2011386
1 piece
Mx 161008 CR3 160 mm 100 mm 81 mm 2011389
1 piece
Mx 161609 CR3 150 mm 100 mm 91 mm 2011392
1 piece
Mx 261609 CR3 260 mm 160 mm 90 mm 2011396
1 piece
Mx 361609 CR3 360 mm 160 mm 91 mm 2011398
1 piece
