- Product description
-

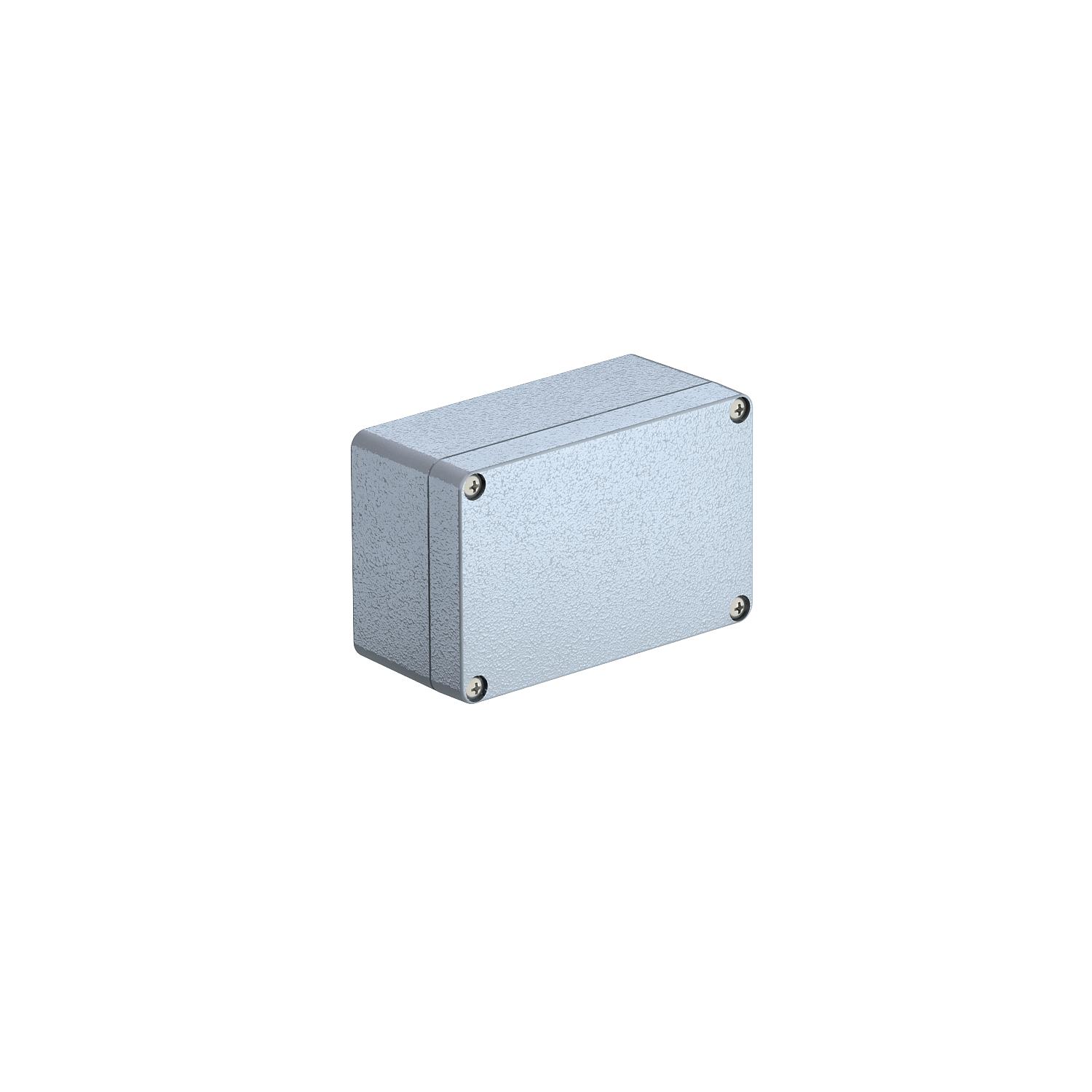

Product descriptionRobust aluminium empty housing for mechanical engineering and automation technology.
The OBO Mx series’ excellent mechanical and thermal features make it most suitable for extreme demands in many different areas. It is therefore also best suited for applications in industry, ports and shipbuilding, as well as in the agricultural sector.
The products protect the electrical installation against high-grade strains. They withstand both extreme cold and heat as well as vandalism and impact on roads, railways or in tunnels.
With an IP66 protection class, they are optimally protected against the intrusion of dust and water.
The aluminium housings are powder-coated (RAL 7001) and are delivered with a cover including stainless steel screws, a seal and two or four earthing screws.
Temperature: -40°C to +125°C
- Technical data
-

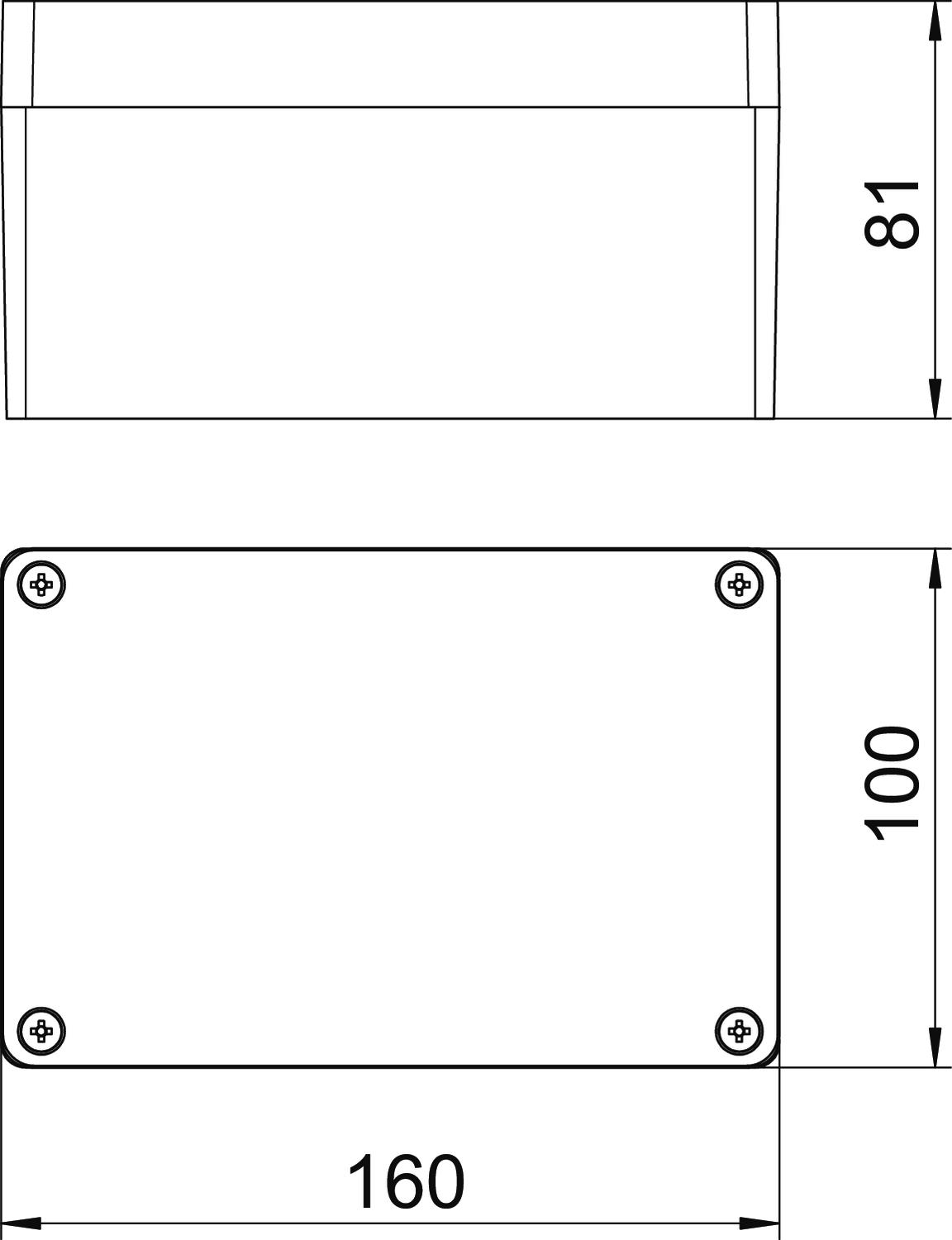

Dimensions
Clear internal dimensions 117x90x74.5 mm Colour Silver grey; RAL 7001 Cover fastening Screwed Dimension 160x100x81 Extension option yes Height 81 mm Length 160 mm Material Cast aluminium Permitted temperature range, max. 125 °C Permitted temperature range, min. -40 °C Protection rating IP66 Shape Rectangular Suitable for lightning protection no Suitable for outdoor use yes Surface Powder-coated Version, small distributor cover Closed Weatherproof yes Width 100 mm with lid yes With mounting plate no - All types
-
All types
- Downloads
-
Data sheet Mx 161008 SGR / 2011316 , 0.20MB , pdfEU declaration of conformity Mx 161008 SGR / 2011316 , 0.05MB , pdfREACH Declaration of conformity Mx 161008 SGR / 2011316 , 0.12MB , pdfRoHS Declaration of conformity Mx 161008 SGR / 2011316 , 0.12MB , pdf
