Aluminium external corner cover 76.5 | aluminium
morepic-1 morepic-2

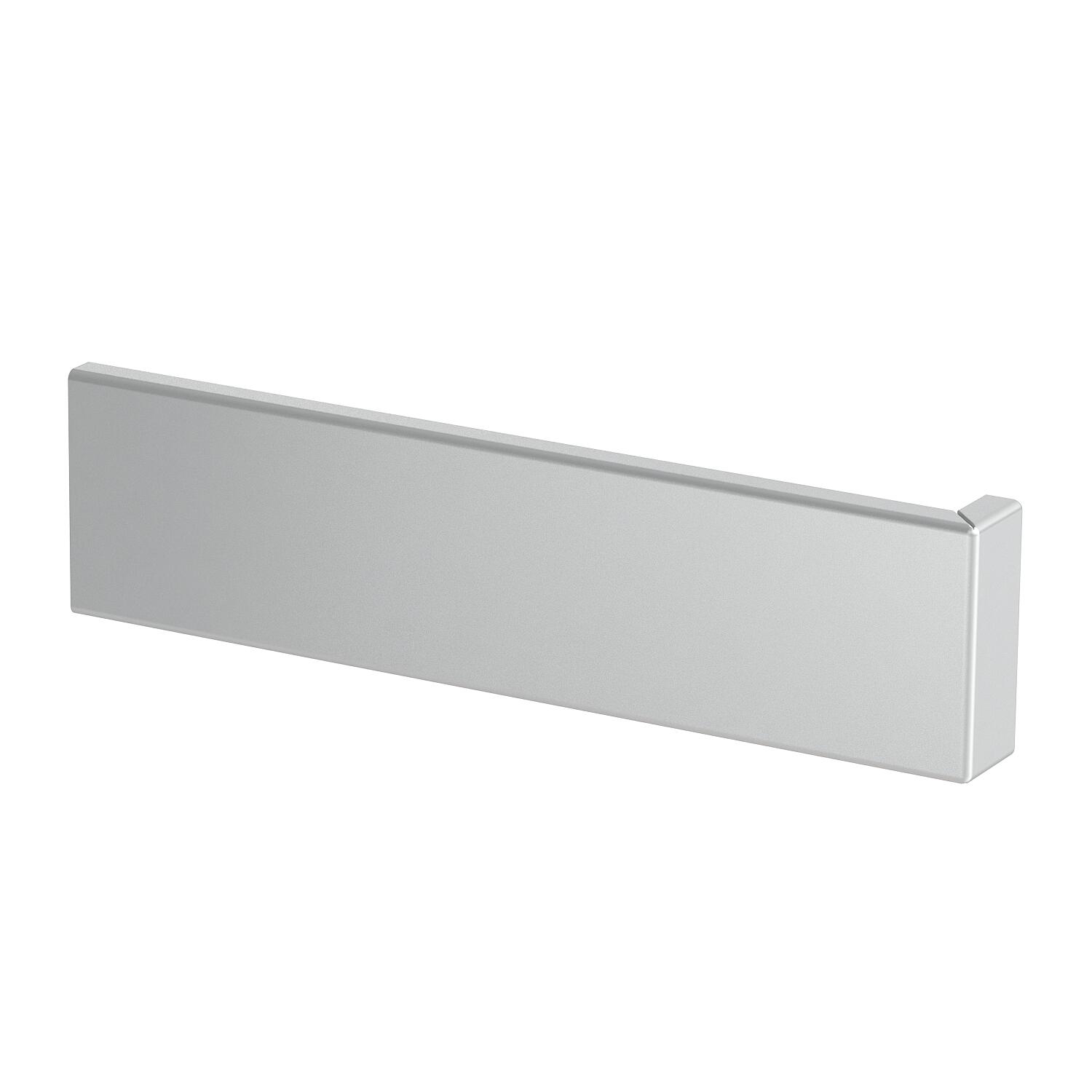

Aluminium external corner cover

Item no. 6279727 | EAN 4012195776154

76.5 mm
Product description
Product description
External corner cover for mounting on the Rapid 80 GA external corner fitting.
Technical data

Technical data

Colour aluminium
Cover mounting type Internal

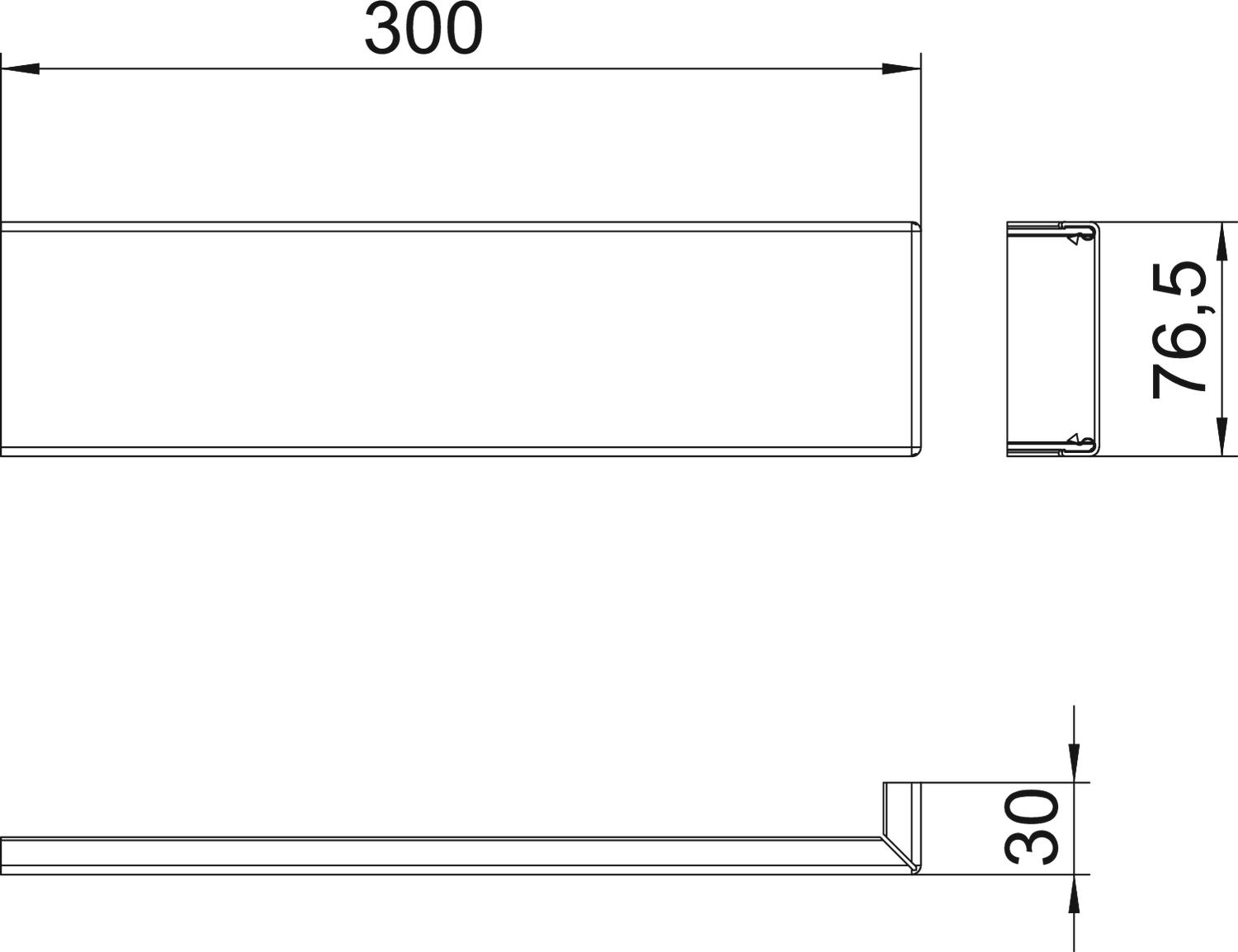

Dimension 12x76,5x300
Halogen-free yes
Height 12 mm
Length 300 mm
Material Aluminium
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Protective film yes
Surface Anodised
Width 76,5 mm
All types

All types

Types Width Colour Item no. Quantity SSU
GA-OTARW 76.5 mm Pure white; RAL 9010 6279725
1 piece
GA-OTAEL 76.5 mm aluminium 6279727
1 piece
Downloads

Download

EU declaration of conformity GA-OTAEL / 6279727 , 0.10MB , pdf
Download
UK Declaration of Conformity GA-OTAEL / 6279727 , 0.14MB , pdf
Download
REACH Declaration of conformity GA-OTAEL / 6279727 , 0.27MB , pdf
Download
RoHS Declaration of conformity GA-OTAEL / 6279727 , 0.28MB , pdf
Download

No invitation to tender text is available for this product.
