Aluminium flat angle cover 76.5
morepic-1 morepic-2 video-1

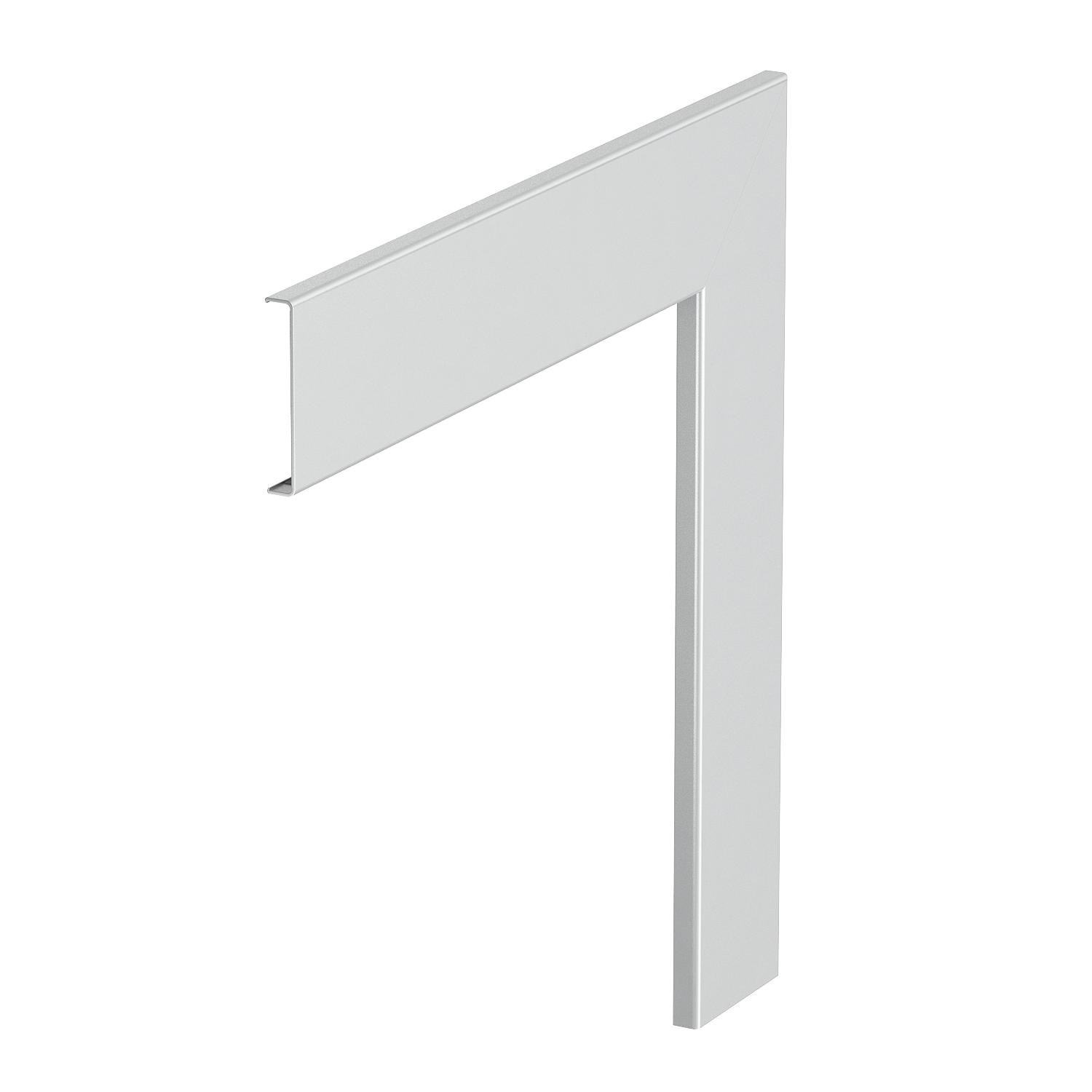

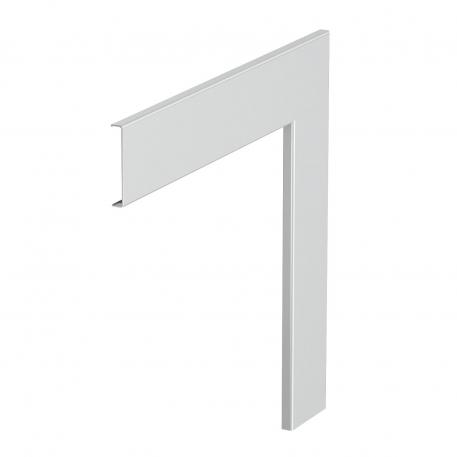

Aluminium flat angle cover

Item no. 6279736 | EAN 4012195776192

76.5 mm
Product description

Product description

Flat angle cover for mounting on the Rapid 80 GA flat angle fitting.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Cover mounting type Internal

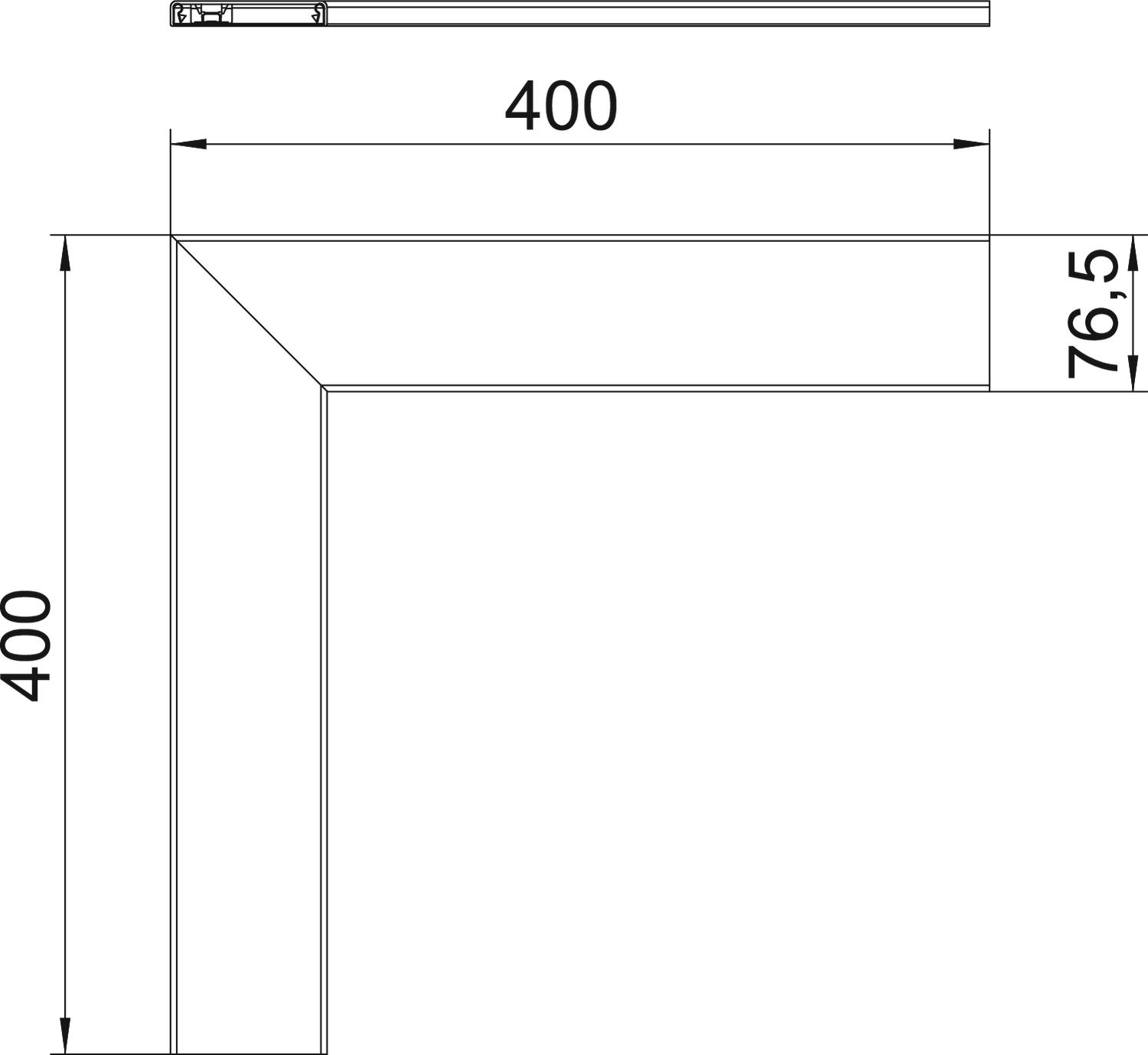

Dimension 12x76,5x400
Halogen-free yes
Height 12 mm
Length 400 mm
Material Aluminium
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Protective film yes
Surface Anodised
Version for Smooth
Width 76,5 mm
All types

All types

Types Width Item no. Quantity SSU
GA-OTFRW 76.5 mm 6279734
1 piece
GA-OTFEL 76.5 mm 6279736
1 piece
Downloads

Download

Download

Declaration of conformity GA-OTFEL / 6279736 , 0.10MB , pdf
Download
UK Declaration of Conformity GA-OTFEL / 6279736 , 0.14MB , pdf
Download
REACH Declaration of conformity GA-OTFEL / 6279736 , 0.27MB , pdf
Download
RoHS Declaration of conformity GA-OTFEL / 6279736 , 0.28MB , pdf
Download

Download

No invitation to tender text is available for this product.
