Aluminium pipe bend, with thread

Item no. 2046045 | EAN 4012195926214

Product description
Product description

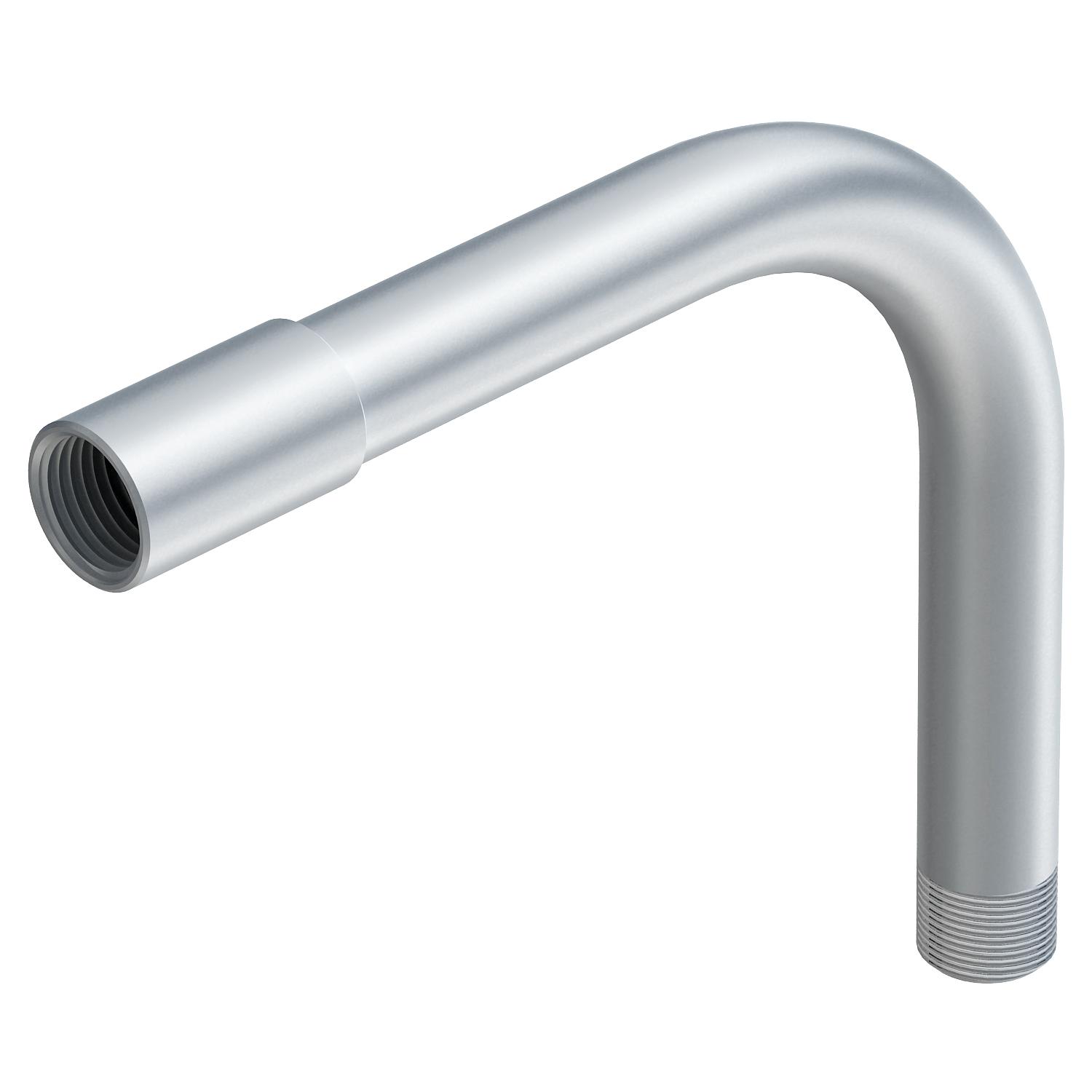

90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

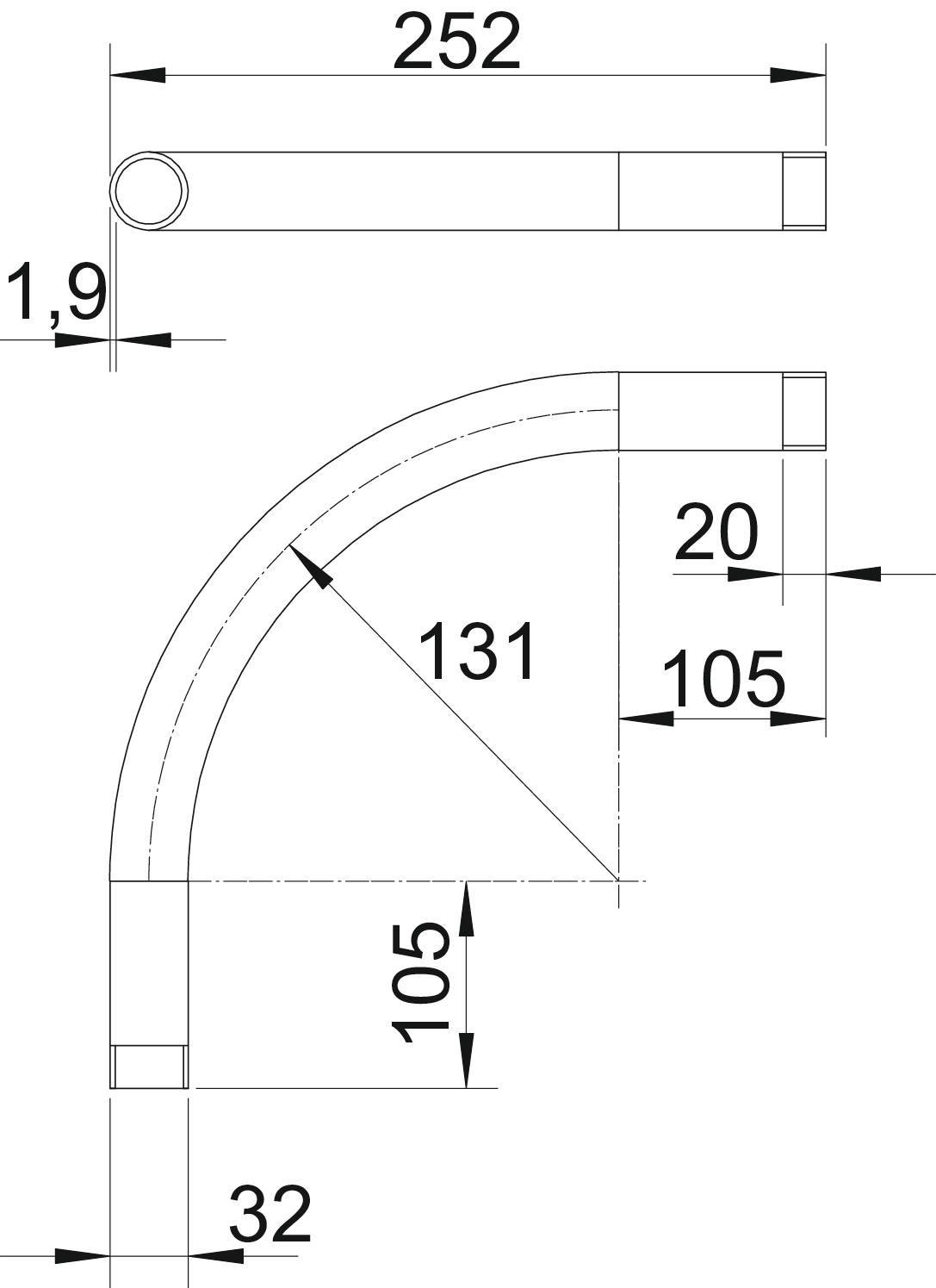

Angle of the bend 90 °
Brushed surface no
Dimension M32x1,5
Dimension A 105 mm
Dimension B 252 mm
Dimension D 32 mm
Dimension l 20 mm
Dimension m (mm) M32
Dimension R 131 mm
Dimension t 1,9 mm
Flexible no
For nominal pipe diameter 32 mm
Halogen-free no
Material Aluminium
Permitted temperature range, max. 250 °C
Permitted temperature range, min. -45 °C
Polished surface no
Thread M32x1,5
Two-part no
Version for Thread
With inspection opening and lid no
With sleeve yes
All types

All types

Types Thread Item no. Quantity SSU
SBM16W ALU M16x1,5 2046042
15 piece
SBM20W ALU M20x1,5 2046043
25 piece
SBM25W ALU M25x1,5 2046044
25 piece
SBM32W ALU M32x1,5 2046045
20 piece
SBM40W ALU M40x1,5 2046046
15 piece
SBM50W ALU M50x1,5 2046047
5 piece
SBM63W ALU M63x1,5 2046048
3 piece
