Aluminium pipe bend, without thread

Item no. 2046018 | EAN 4012195925972

Product description
Product description

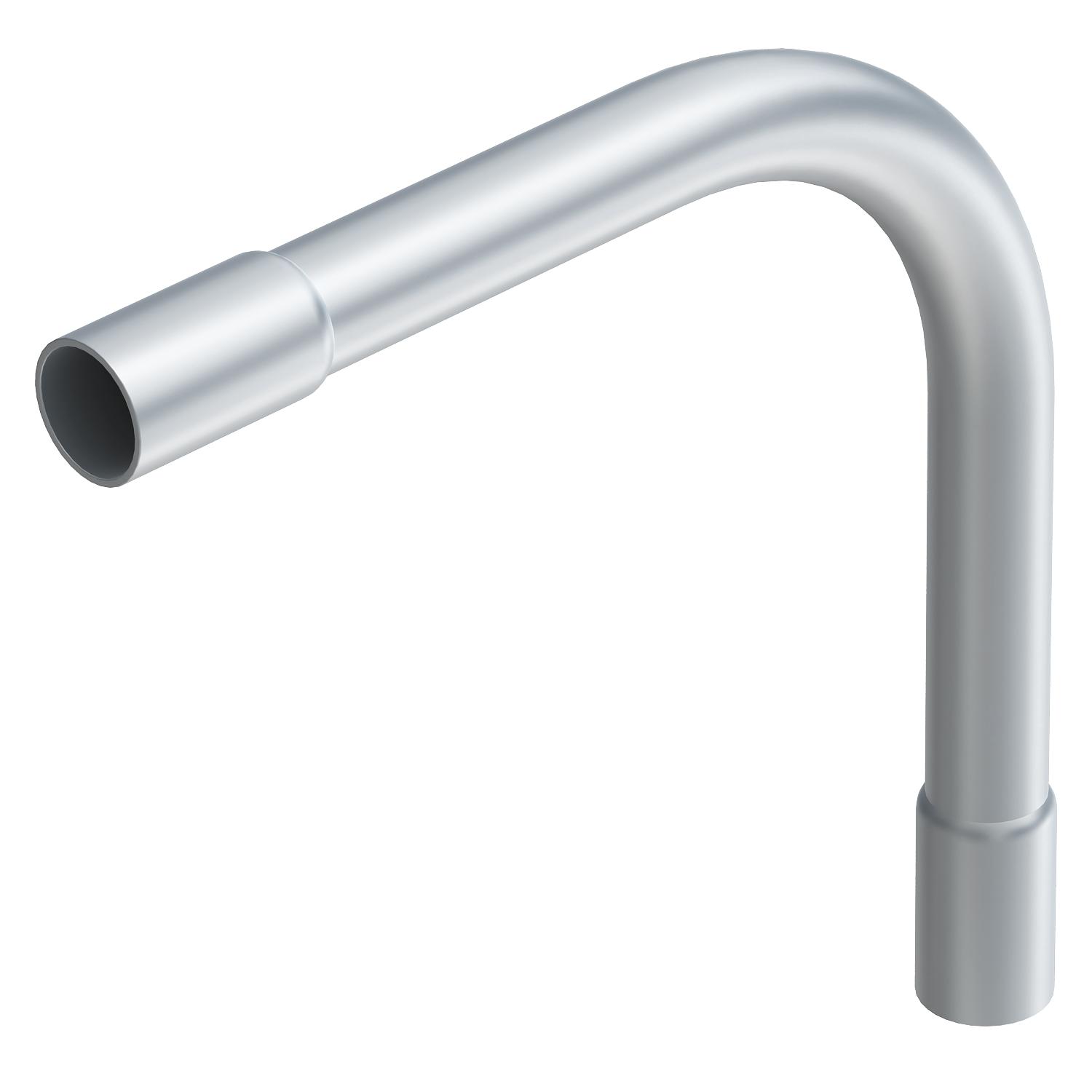

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

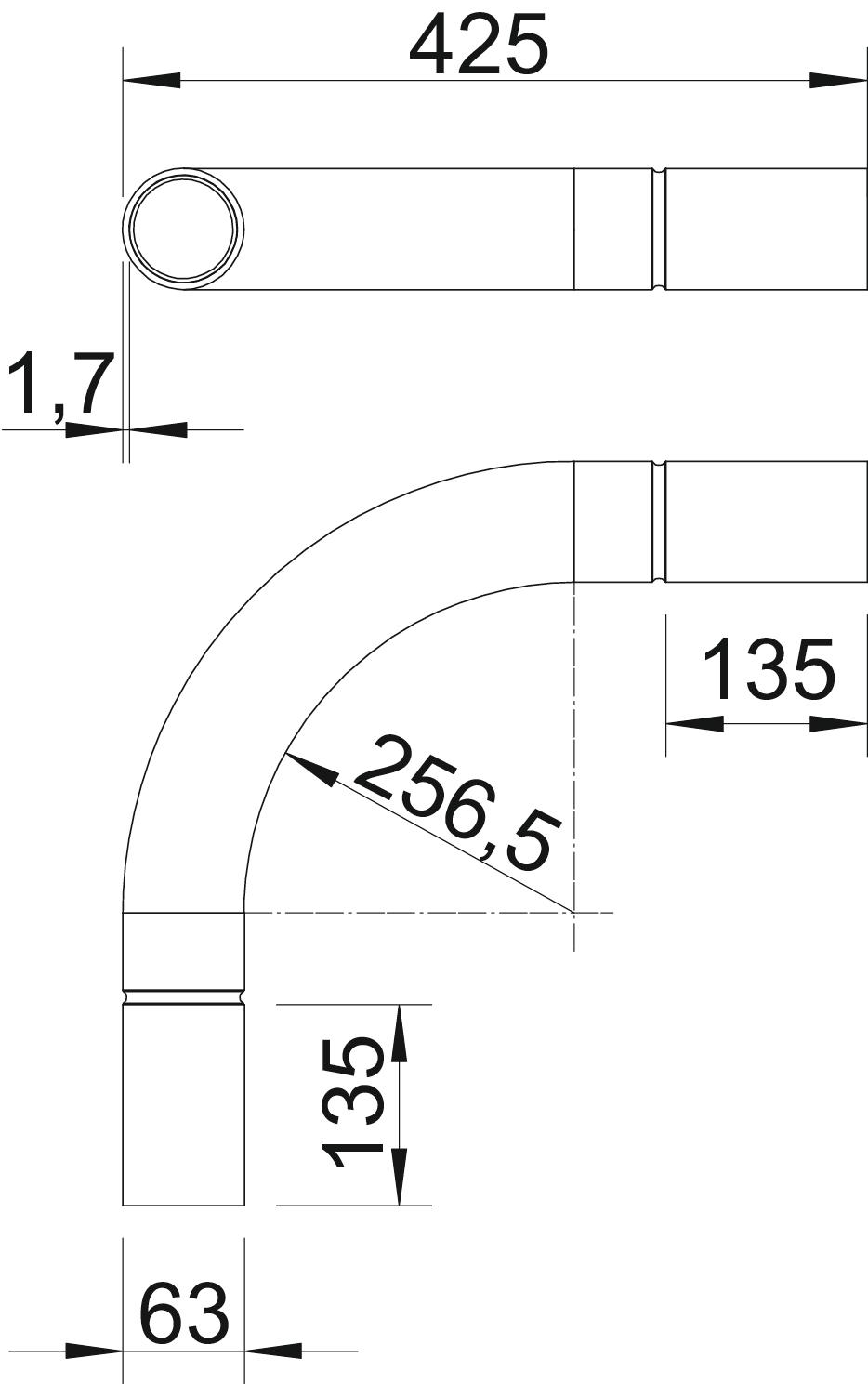

Angle of the bend 90 °
Brushed surface no
Dimension Ø63mm
Dimension A 135 mm
Dimension B 425 mm
Dimension D 63 mm
Dimension l 70 mm
Dimension m (mm) M63
Dimension R 225 mm
Dimension t 1,7 mm
Flexible no
For nominal pipe diameter 63 mm
Halogen-free no
Material Aluminium
Permitted temperature range, max. 250 °C
Permitted temperature range, min. -45 °C
Polished surface no
Two-part no
Version for Connector
With inspection opening and lid no
With sleeve yes
