- Product description
-
Product description

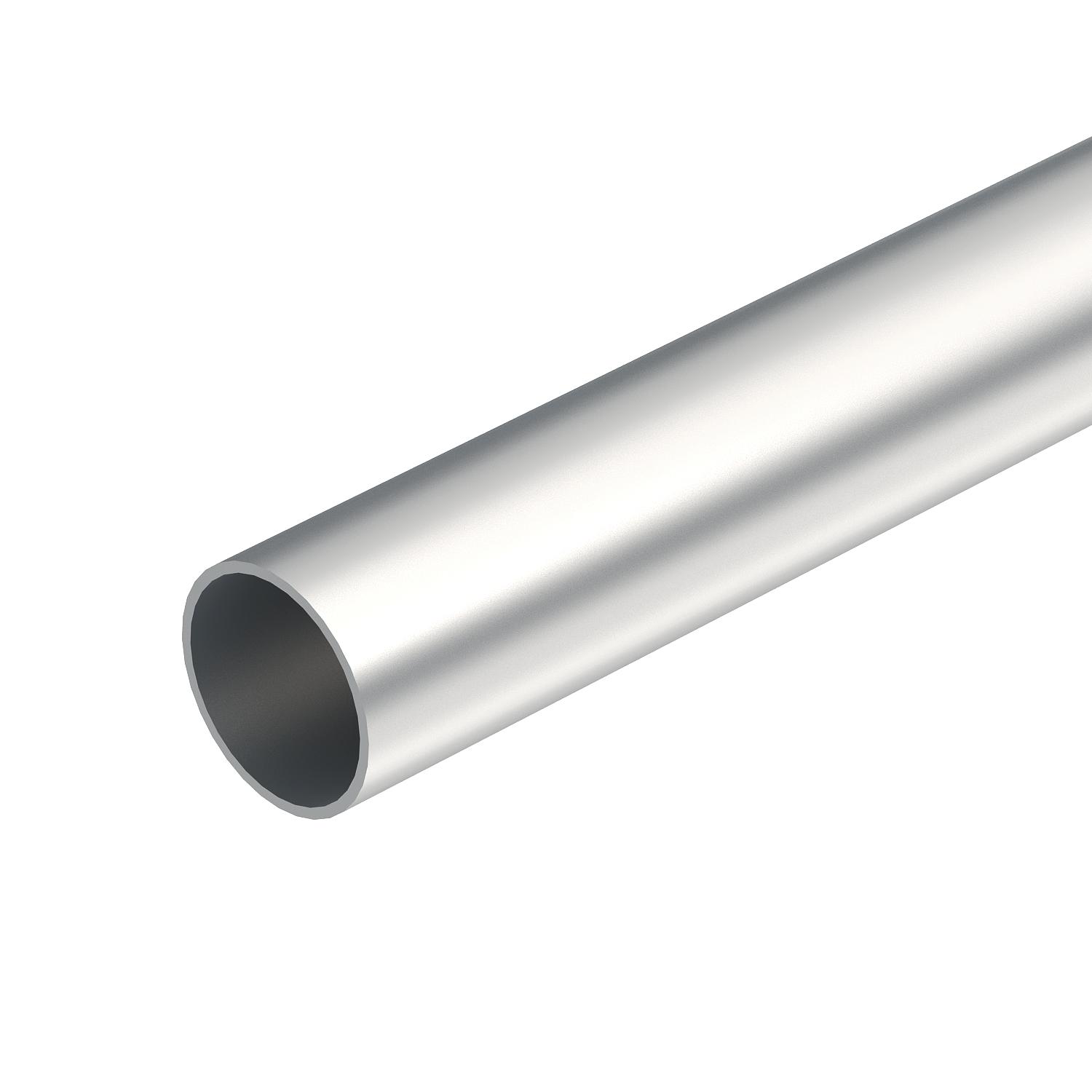

Electrical installation pipe without threaded ends to EN 61386-1 for mechanical protection of cables. With burr-free inner wall.
- Technical data
-
Technical data

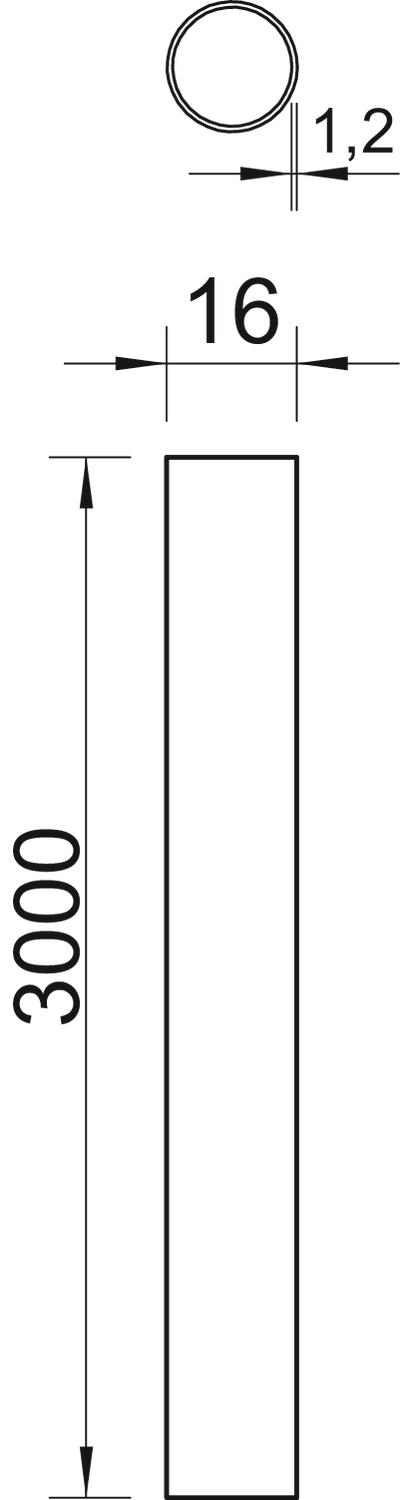

Brushed surface no Cavity wall installation yes Classification code 44561 Concealed no Concrete installation no Connection 1, installation pipe Pipe end Connection 2, installation pipe Pipe end Dimension Ø16, 3000mm Dimension D 16 mm Dimension L 3000 mm Dimension m (mm) M16 Dimension t 1,2 mm Installation in the earth no Installation on wood yes Installation outdoors yes Length 3000 mm Machines and system installation yes Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Pipe version Rigid without thread Polished surface no Surface-mounted yes Underfloor installation (bitumen, hot asphalt) yes Underfloor installation (screed) yes With sleeve no - All types
-
All types
- Downloads
-
Data sheet S16W ALU / 2046002 , 0.19MB , pdfDeclaration of conformity Declaration of conformity ,Declaration of conformity Declaration of conformity ,REACH Declaration of conformity S16W ALU / 2046002 , 0.12MB , pdfRoHS Declaration of conformity S16W ALU / 2046002 , 0.12MB , pdf
