- Product description
-

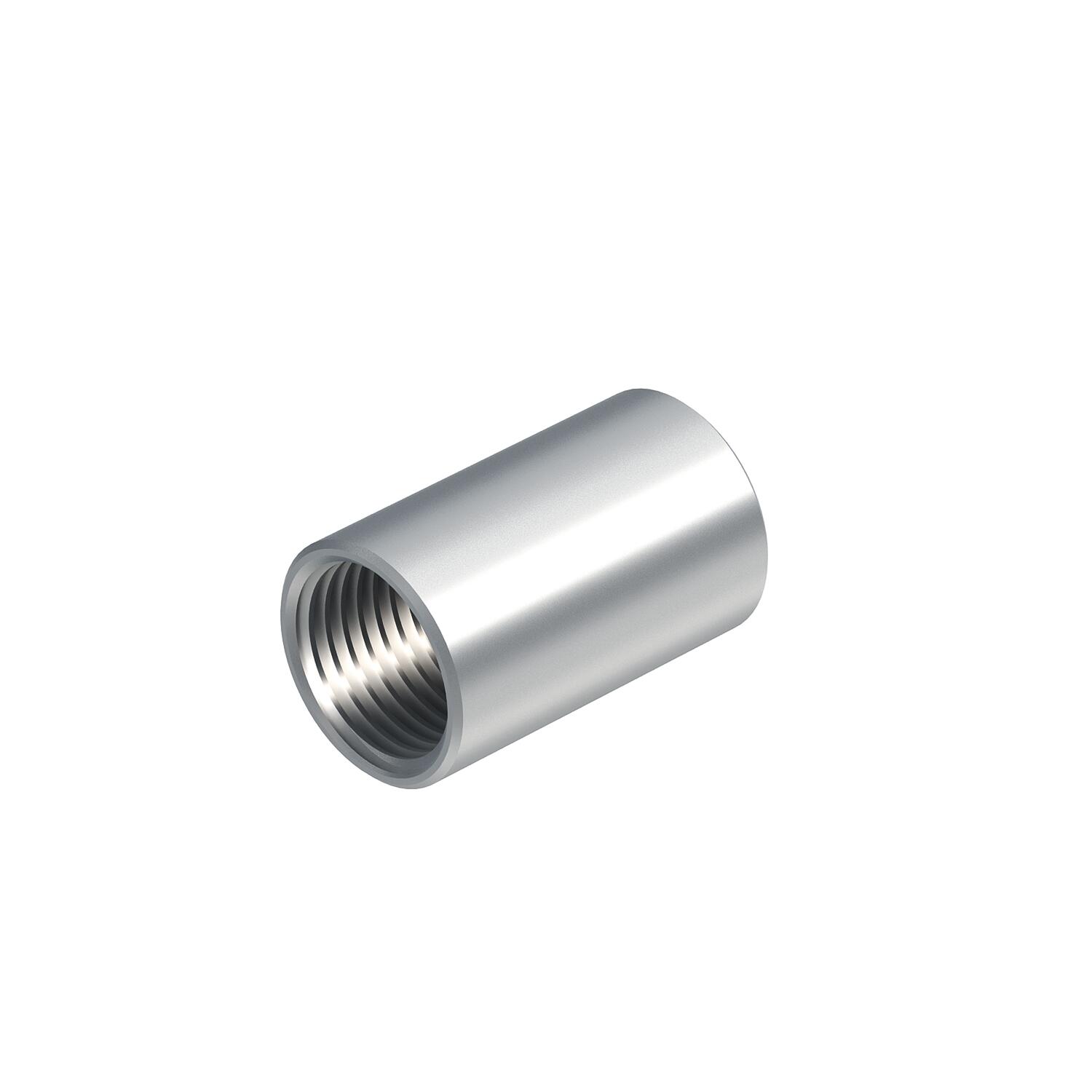

Product descriptionAccessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.
- Technical data
-
Technical data

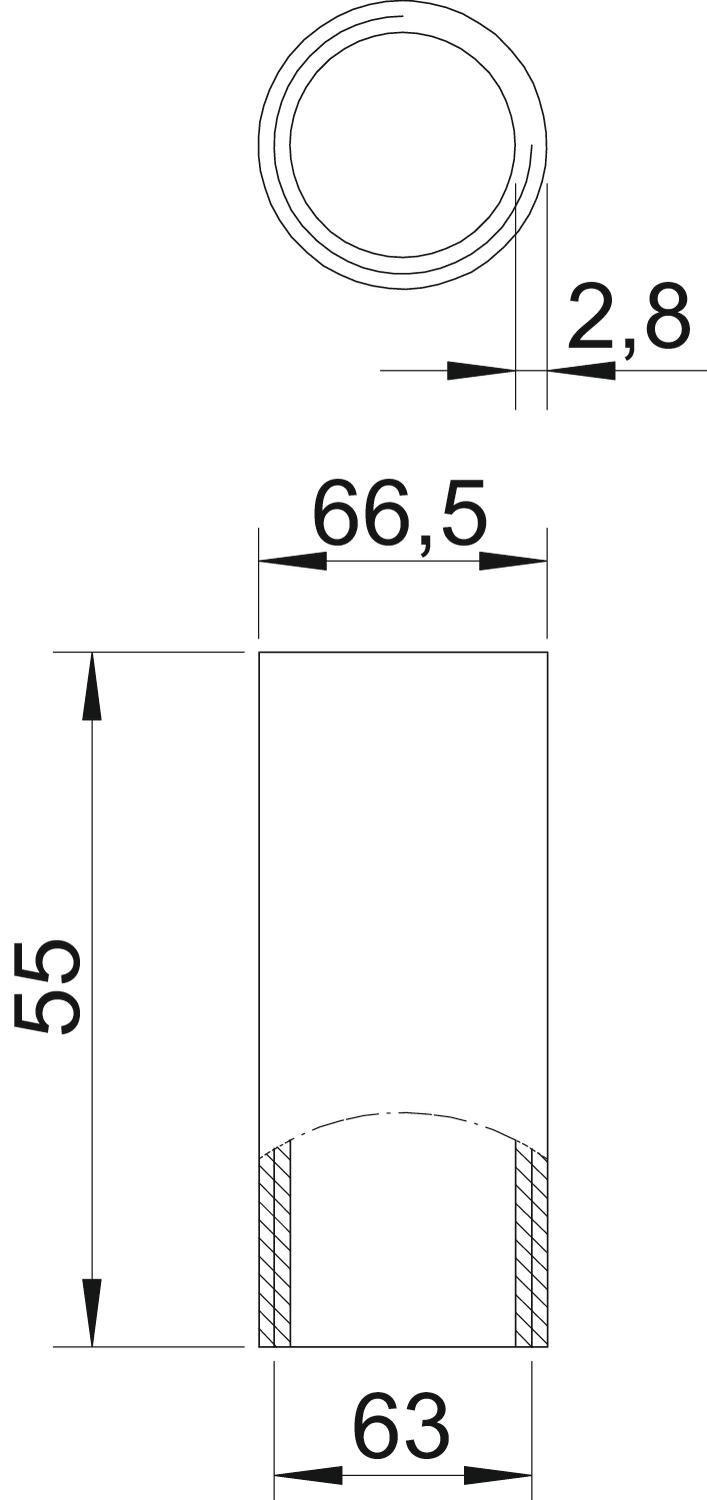

Brushed surface no Dimension M63x1,5 Dimension d 63 mm Dimension D 66,5 mm Dimension L 55 mm Dimension m (mm) M63 Dimension t 2,8 mm for pipe diameter 63 mm Halogen-free no Length 55 mm Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Polished surface no Size 63 Thread M63x1,5 Two-part no Version for Thread With inspection opening and lid no - All types
-
All types
- Downloads
-
Data sheet SVM63W ALU / 2046058 , 0.18MB , pdfEU declaration of conformity SVM63W ALU / 2046058 , 0.06MB , pdfREACH Declaration of conformity SVM63W ALU / 2046058 , 0.12MB , pdfRoHS Declaration of conformity SVM63W ALU / 2046058 , 0.12MB , pdf
