Aluminium sleeve, without thread
Item no. 2046024 | EAN 4012195926023
- Product description
-

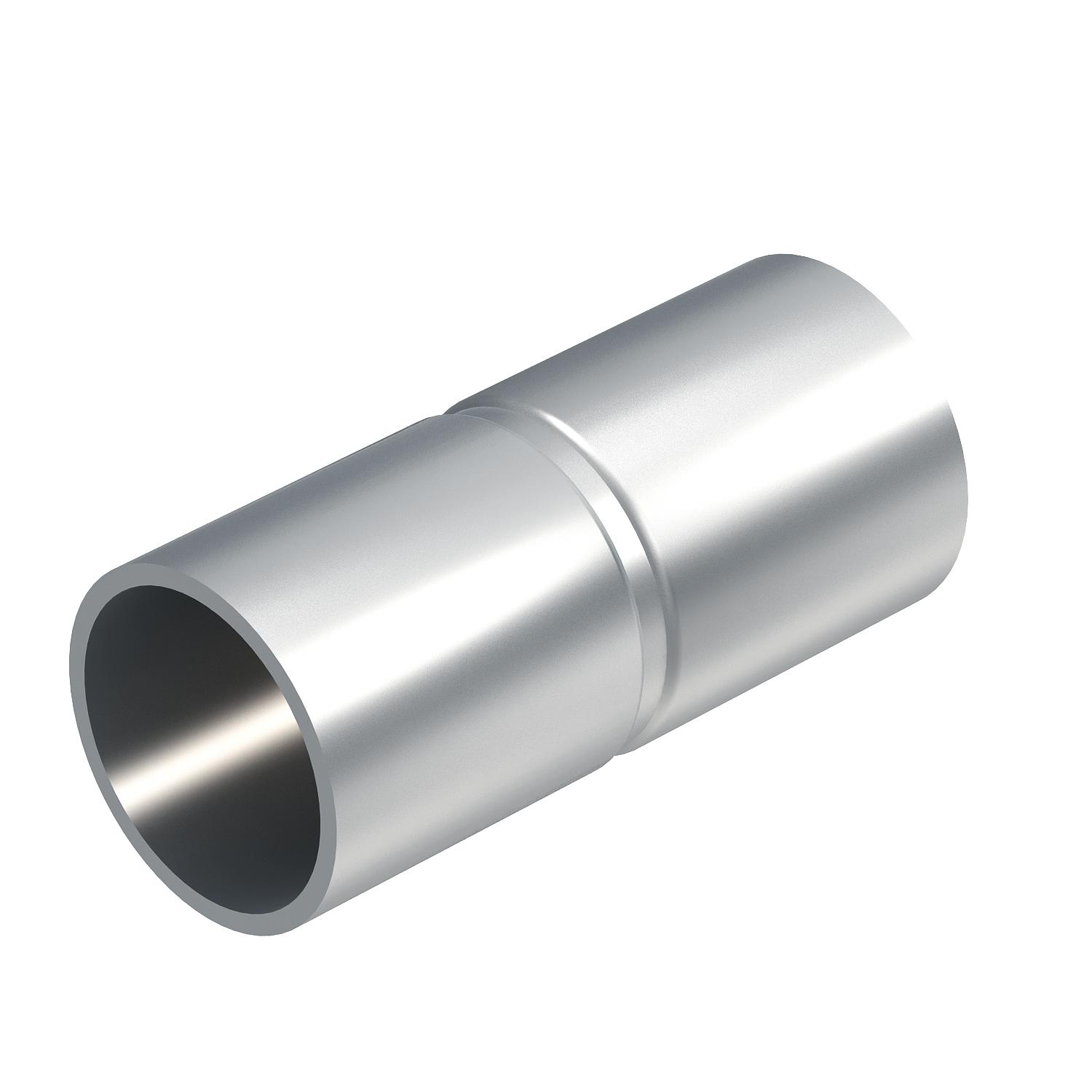

Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
-
- Technical data
-
Technical data

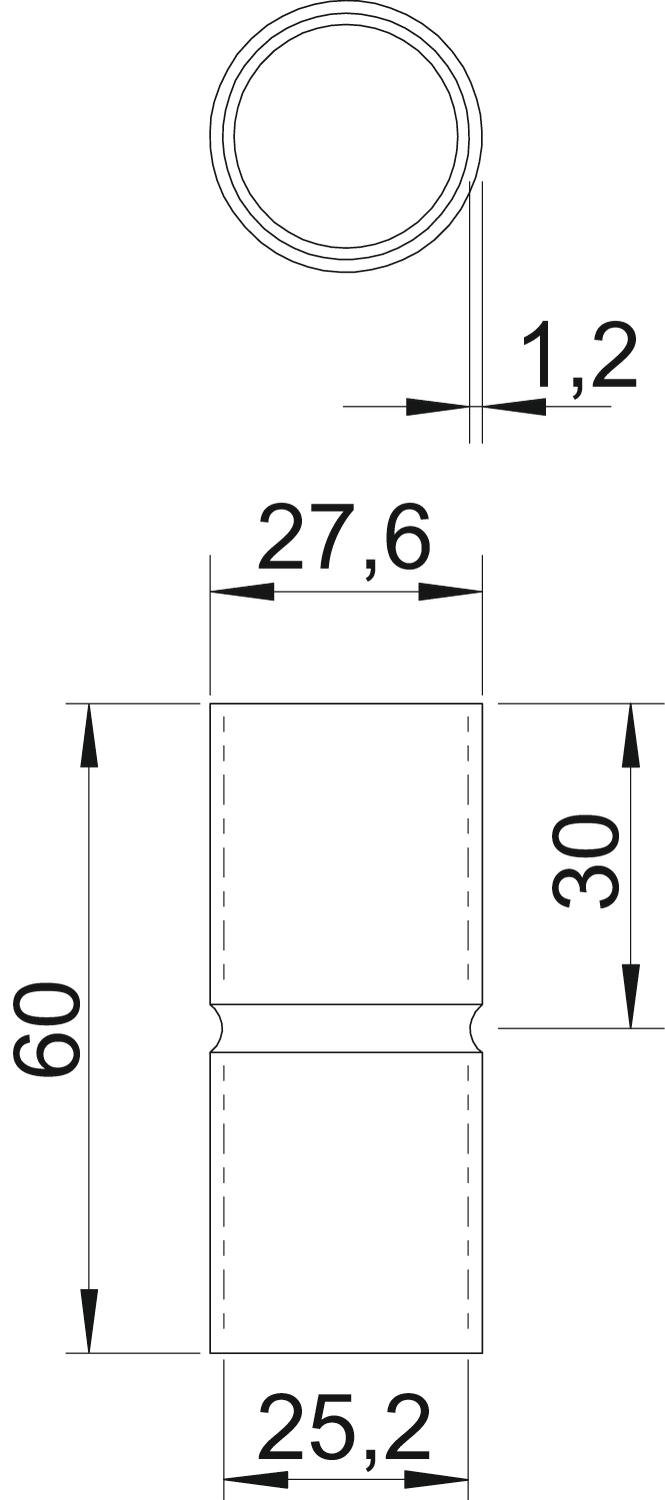

Brushed surface no Dimension Ø25mm Dimension D 27,6 mm Dimension d 25,2 mm Dimension L 60 mm Dimension l 30 mm Dimension m (mm) 25 Dimension t 1,2 mm for pipe diameter 25 mm Halogen-free yes Length 60 mm Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Polished surface no Size 25 Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV25W ALU / 2046024 , 0.16MB , pdfEU declaration of conformity SV25W ALU / 2046024 , 0.06MB , pdfREACH Declaration of conformity SV25W ALU / 2046024 , 0.12MB , pdfRoHS Declaration of conformity SV25W ALU / 2046024 , 0.12MB , pdf
