- Product description
-

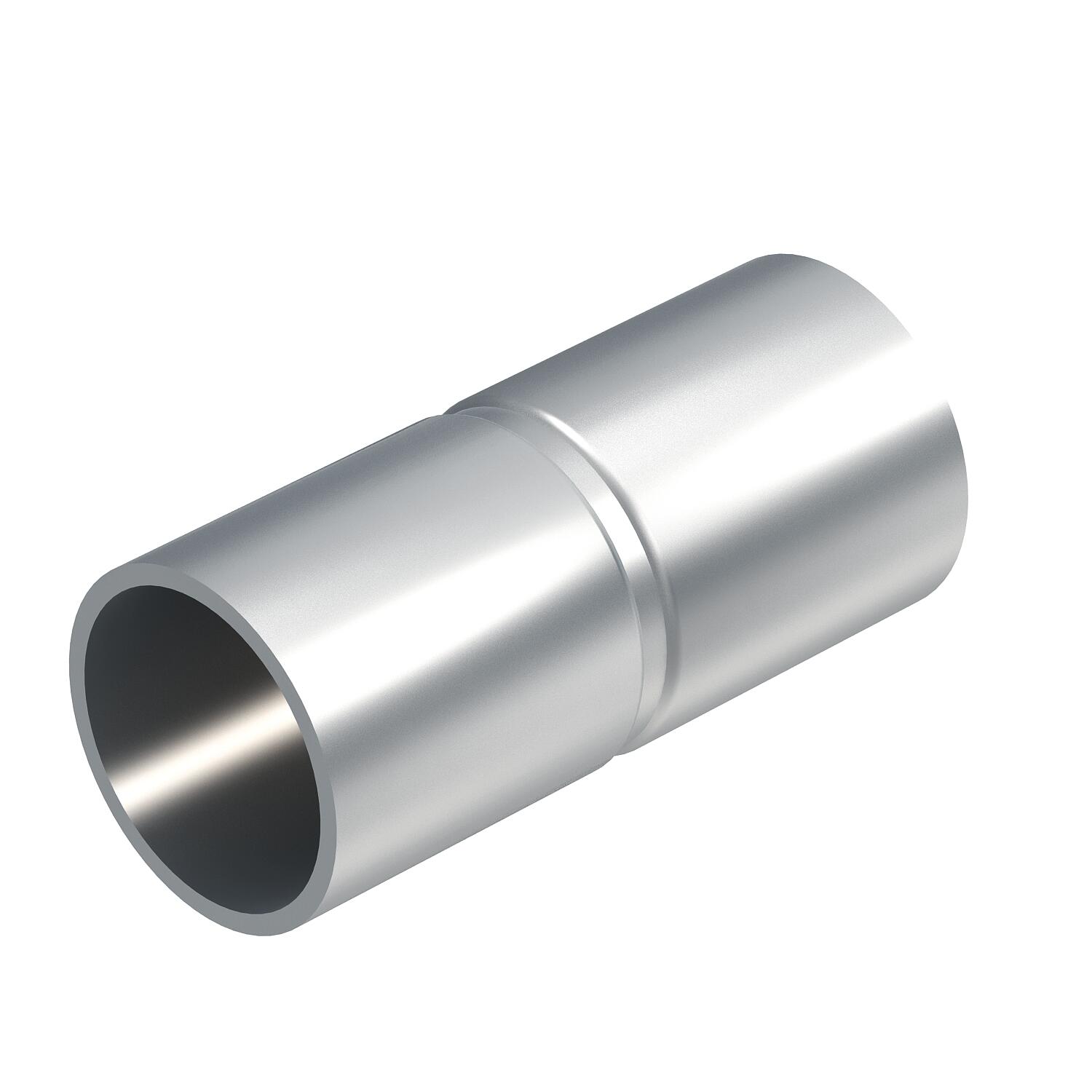

Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
- Technical data
-
Technical data

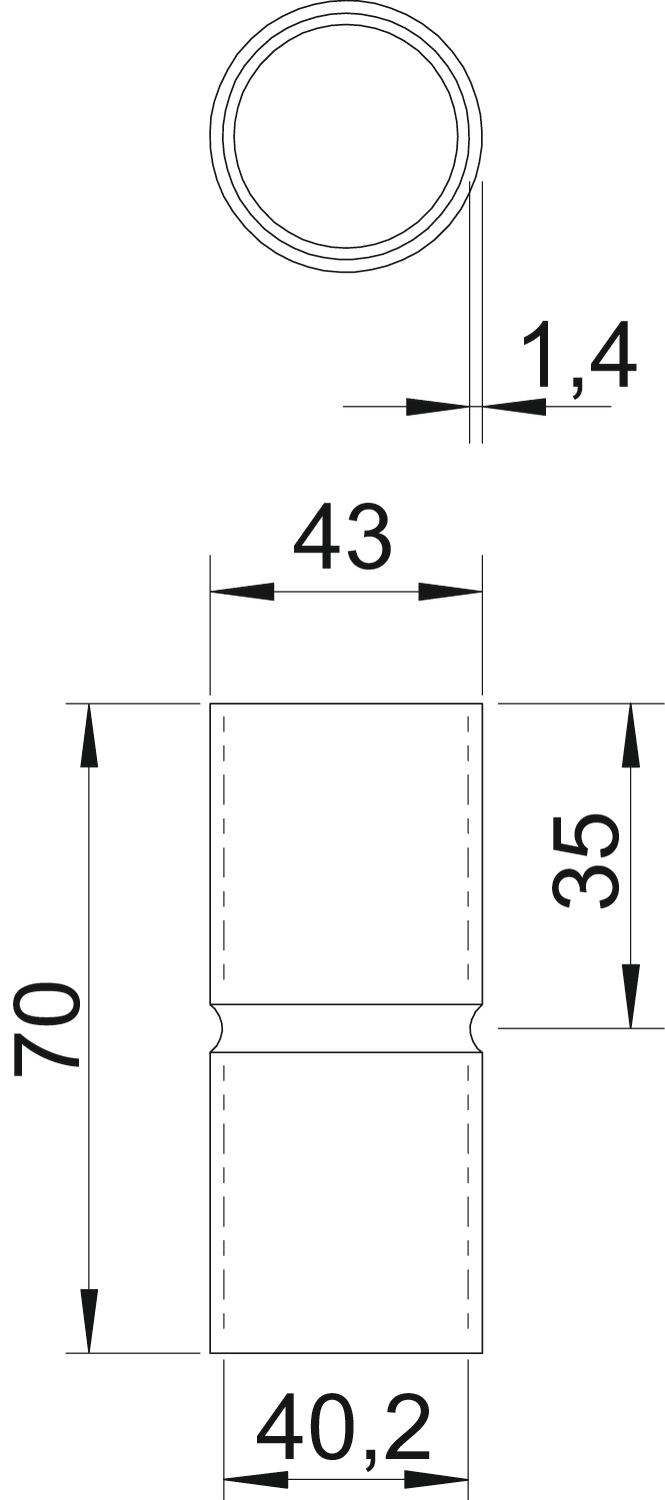

Brushed surface no Dimension Ø40mm Dimension d 40,2 mm Dimension D 43 mm Dimension L 70 mm Dimension l 35 mm Dimension m (mm) 40 Dimension t 1,4 mm for pipe diameter 40 mm Halogen-free yes Length 70 mm Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Polished surface no Size 40 Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV40W ALU / 2046026 , 0.15MB , pdfEU declaration of conformity SV40W ALU / 2046026 , 0.06MB , pdfREACH Declaration of conformity SV40W ALU / 2046026 , 0.12MB , pdfRoHS Declaration of conformity SV40W ALU / 2046026 , 0.12MB , pdf
