- Product description
-
Product description

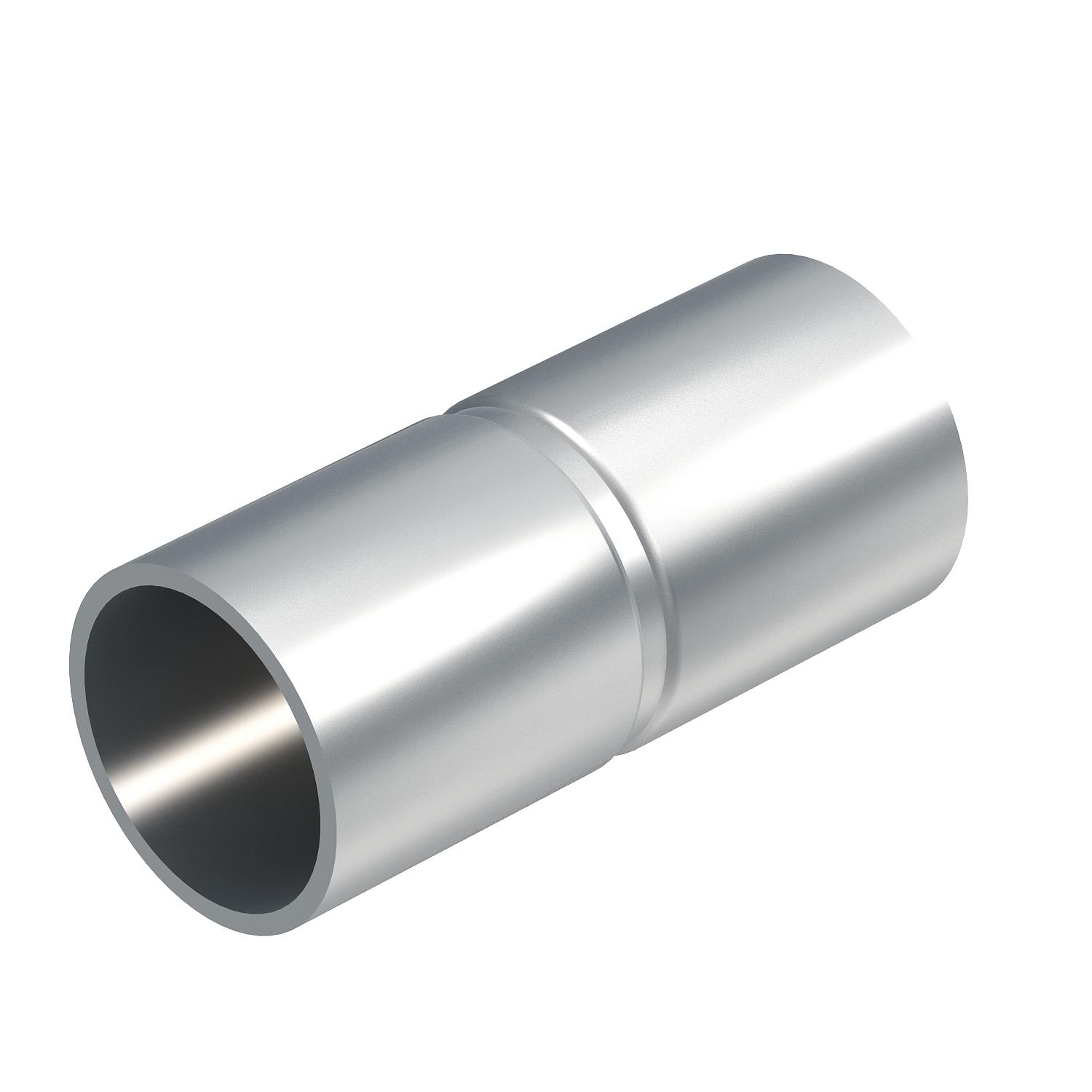

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
- Technical data
-
Technical data

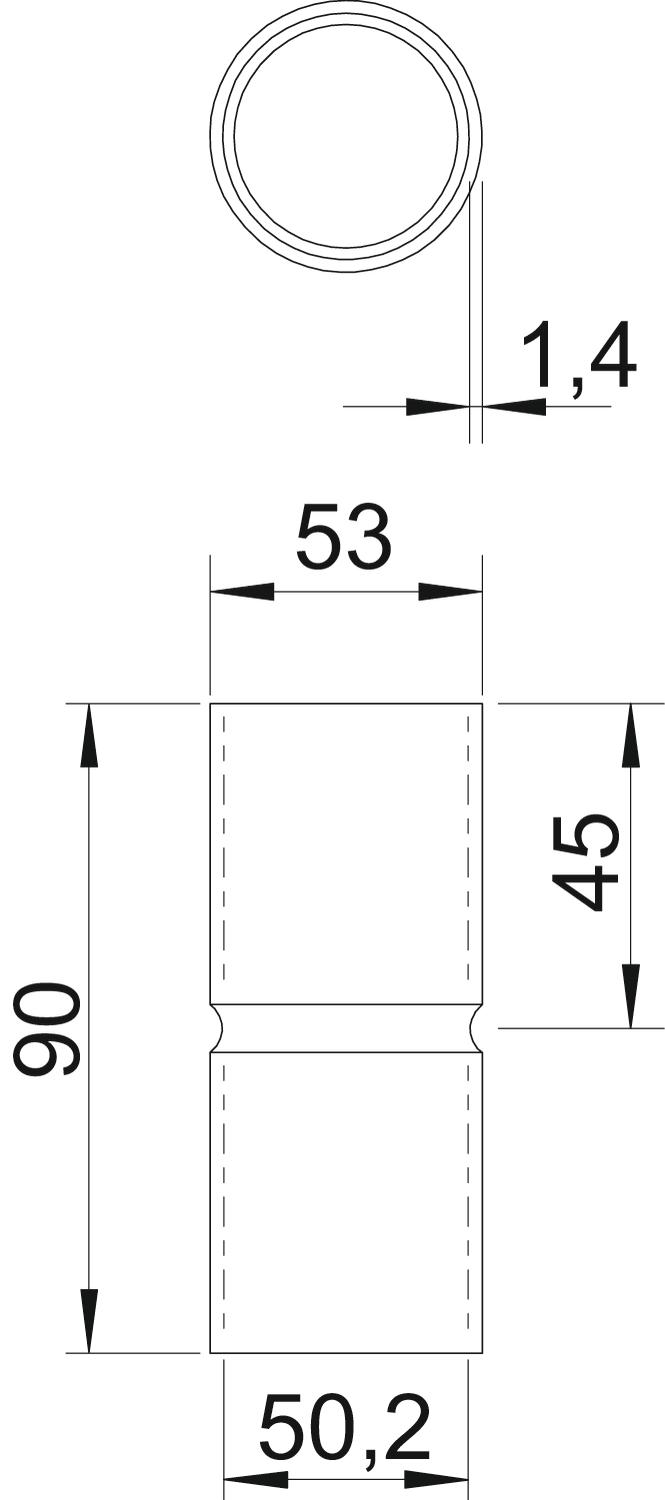

Brushed surface no Dimension Ø50mm Dimension D 53 mm Dimension d 50,2 mm Dimension l 45 mm Dimension L 90 mm Dimension m (mm) 50 Dimension t 1,4 mm for pipe diameter 50 mm Halogen-free yes Length 90 mm Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Polished surface no Size 50 Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV50W ALU / 2046027 , 0.17MB , pdfDeclaration of conformity SV50W ALU / 2046027 , 0.06MB , pdfREACH Declaration of conformity SV50W ALU / 2046027 , 0.12MB , pdfRoHS Declaration of conformity SV50W ALU / 2046027 , 0.12MB , pdf
