Aluminium wall cover, closed, 70110 178 | 138 | Pure white; RAL 9010
morepic-1 morepic-2 video-1

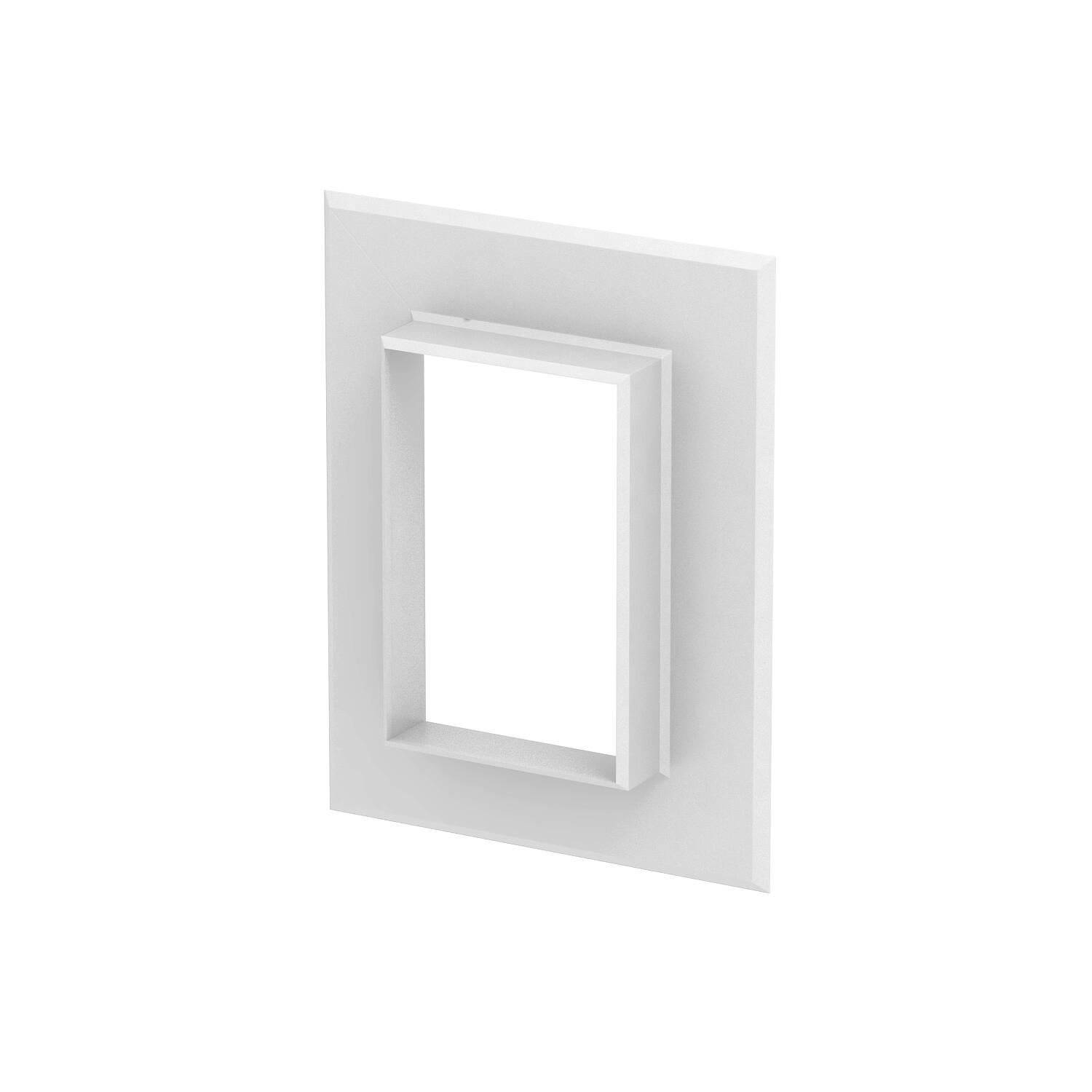

Aluminium wall cover, closed, 70110

Item no. 6278840 | EAN 4012195666929

6278840 / G-AWAG70110RW
178 mm
138 mm
Pure white; RAL 9010
Product description
Product description
Wall cover, closed, to close wall penetrations during panel mounting. In the respective dimensions, it is also suitable as a ceiling cover for ISS service poles.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010

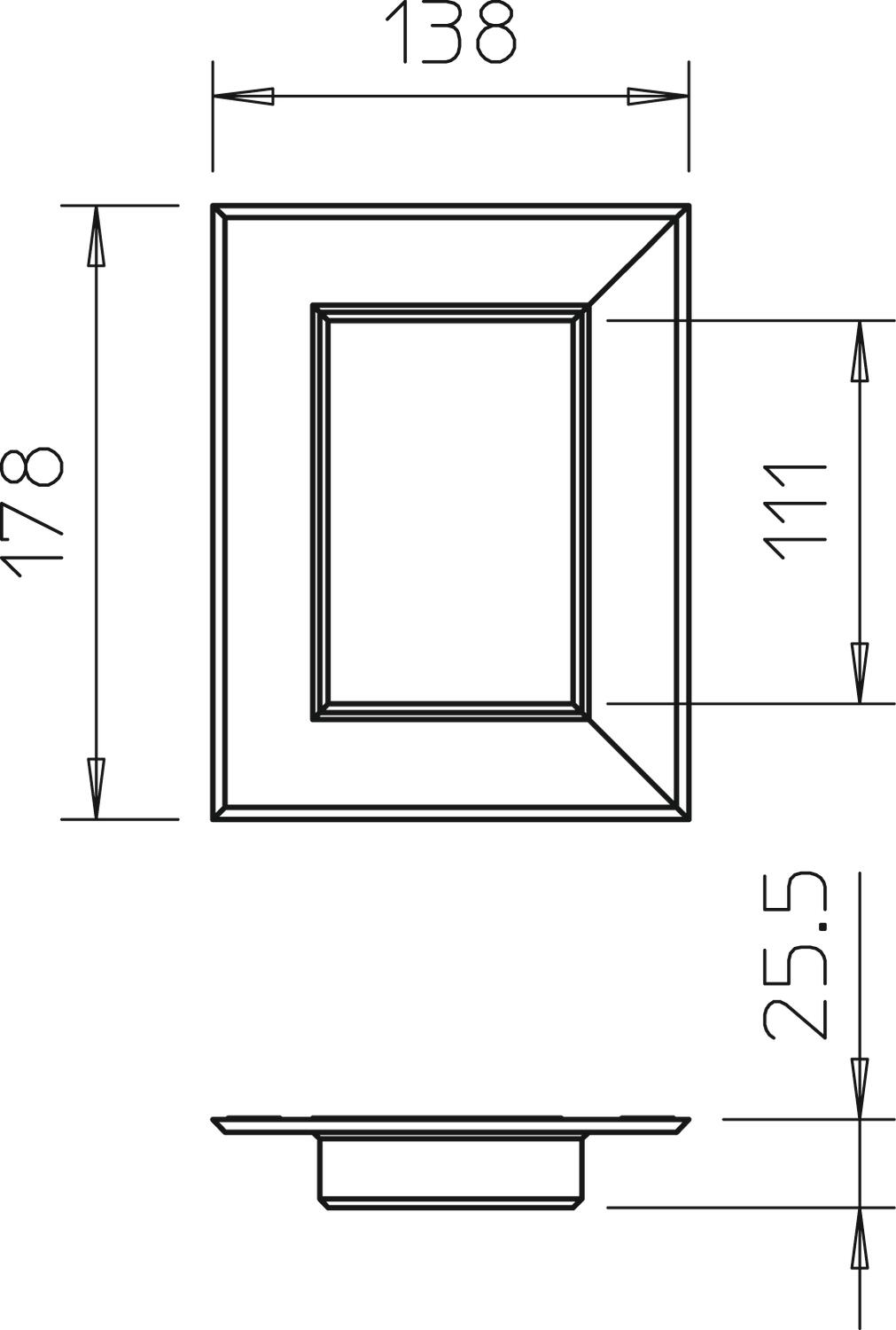

Dimension 138x178x25
Halogen-free yes
Height 138 mm
Length 25 mm
Material Aluminium
Mounting type of the trunking Wall
Trunking depth 70 mm
Version for Universal
Width 178 mm
All types

All types

Types Width Height Colour Item no. Quantity SSU
G-AWAG70110RW 178 mm 138 mm Pure white; RAL 9010 6278840
1 piece
Downloads

Download

Download

EU declaration of conformity G-AWAG70110RW / 6278840 , 0.13MB , pdf
Download
UK Declaration of Conformity G-AWAG70110RW / 6278840 , 0.14MB , pdf
Download

No invitation to tender text is available for this product.
