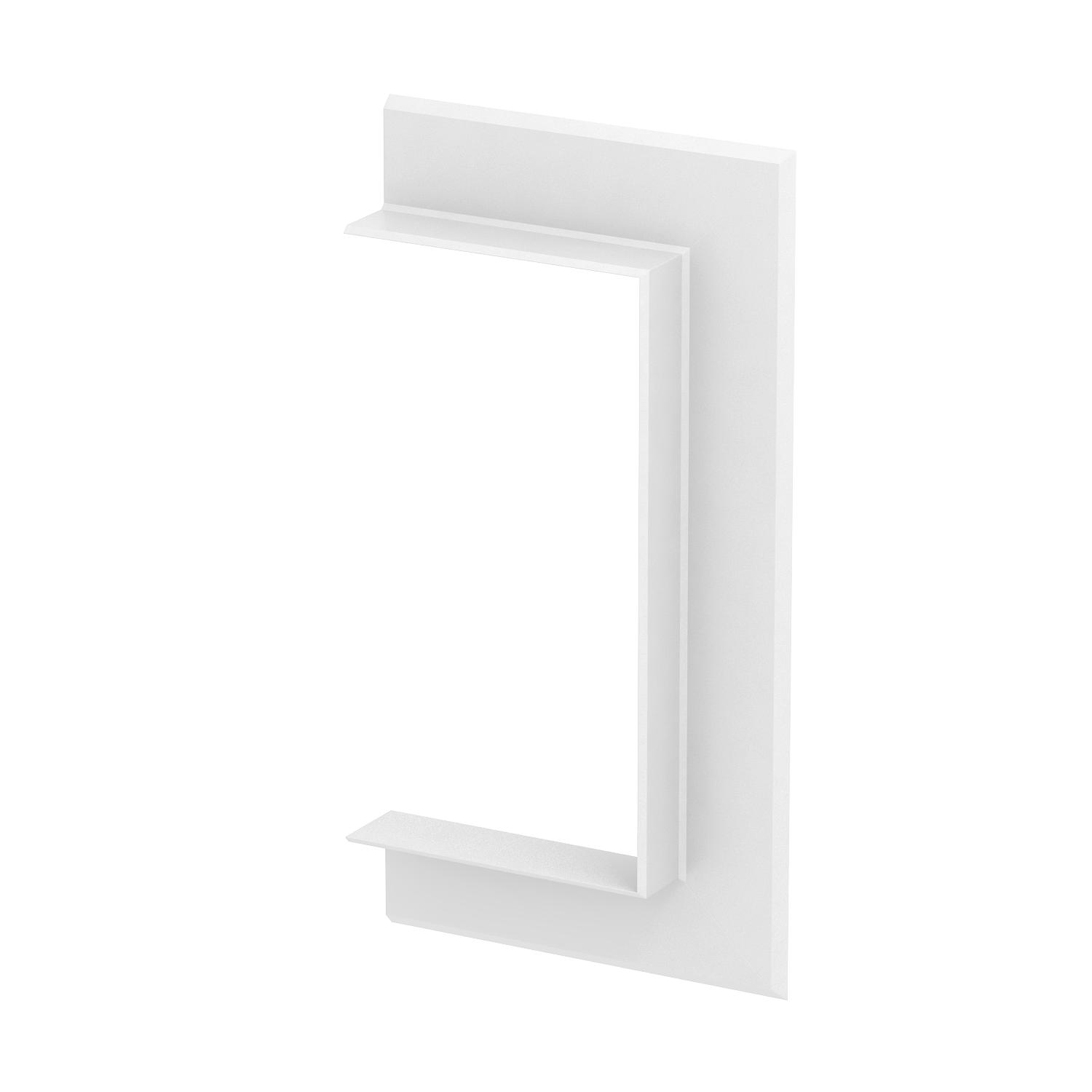

Aluminium wall cover, open, 90170

Item no. 6279000 | EAN 4012195667261

6279000 / G-AWAO90170RW
238 mm
124 mm
Pure white; RAL 9010
Product description
Product description
Wall cover, open, to close wall penetrations during wall mounting.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010

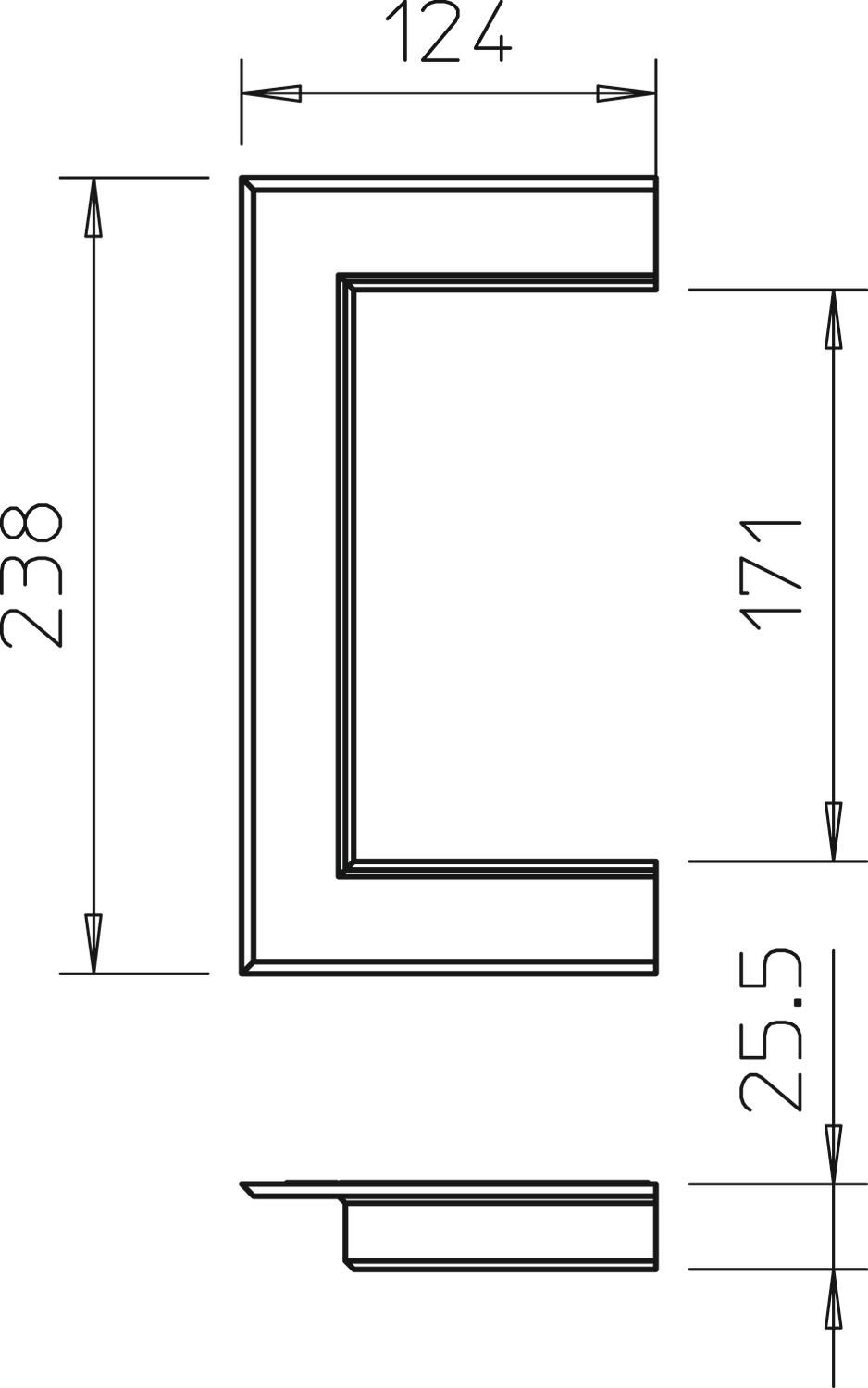

Dimension 124x238x25
Halogen-free yes
Height 124 mm
Length 25 mm
Material Aluminium
Mounting type of the trunking Wall
Trunking depth 90 mm
Version for Universal
Width 238 mm
All types

All types

Types Width Height Colour Item no. Quantity SSU
G-AWAO90170RW 238 mm 124 mm Pure white; RAL 9010 6279000
1 piece
Downloads

Download

EU declaration of conformity G-AWAO90170RW / 6279000 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
