- Product description
-
Product description

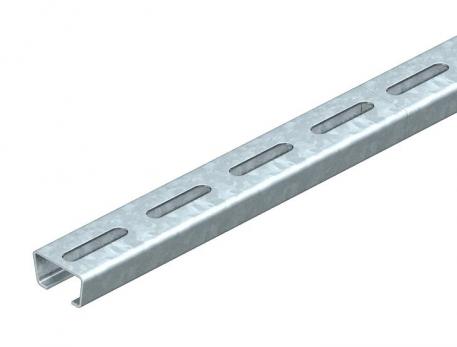

Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
-
- Technical data
-
Technical data

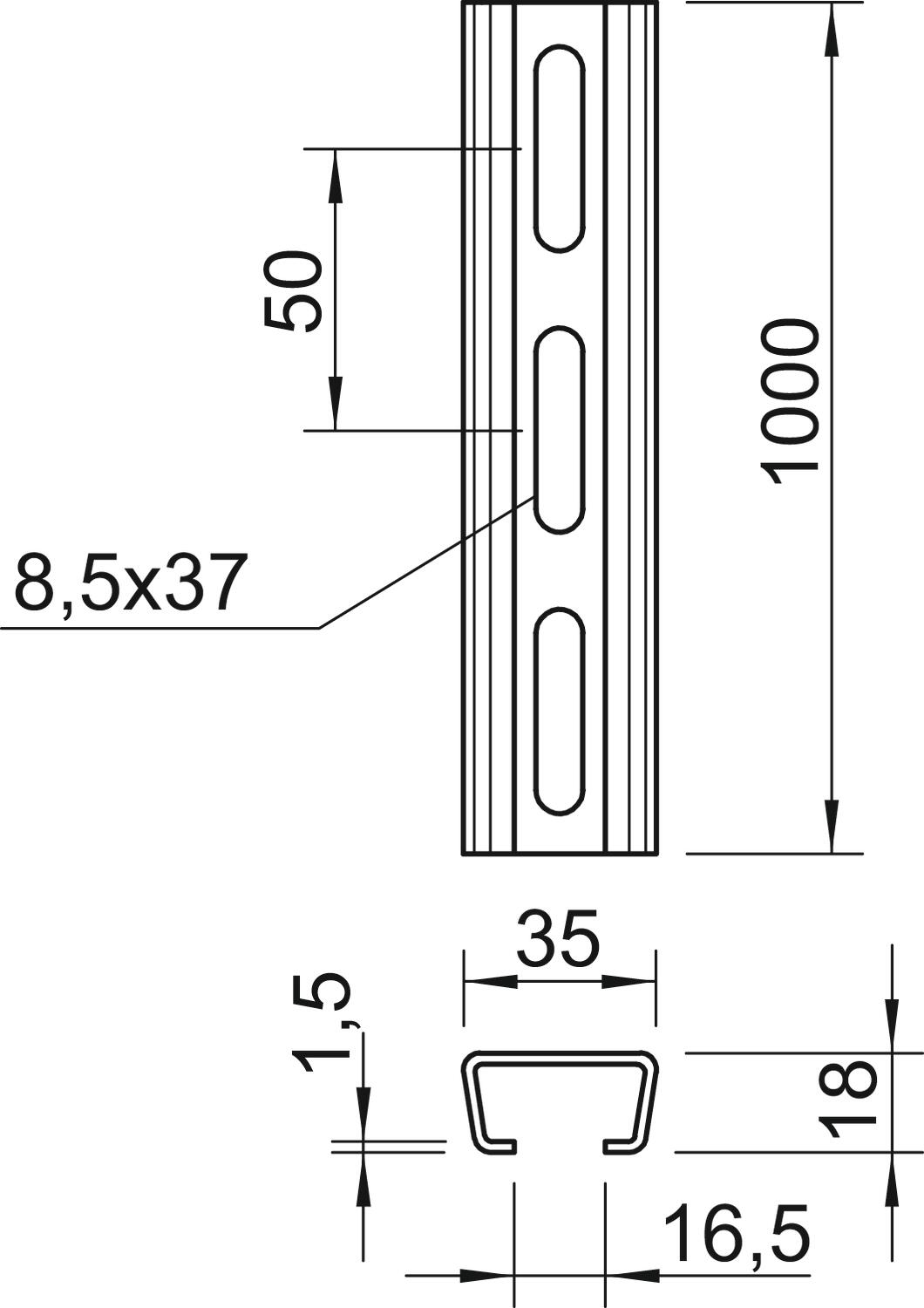

Breakable no Dimension 1000x35x18 Drill hole spacing, centre 50 mm Maintain electrical functions no Material Steel Material thickness 1,5 mm Profile shape C profile Slot width 16,5 mm Static value A 1,01 cm² Static value ly 0,44 cm Static value lz 1,84 cm Static value Wy 0,42 cm² Static value Wz 1,05 cm² Surface Strip galvanized Type of perforation Perforated back Version for Single profile With perforation yes With toothing no Dimensions
Dimension L 1000 mm Height 18 mm Length 1000 mm Width 35 mm - All types
-
All types
- Downloads
-
Data sheet AML3518P1000FS / 1119646 , 0.30MB , pdfBrochure Rail systems , 2.10MB , pdfDeclaration of conformity AML3518P1000FS / 1119646 , 0.06MB , pdfREACH Declaration of conformity AML3518P1000FS / 1119646 , 0.12MB , pdfRoHS Declaration of conformity AML3518P1000FS / 1119646 , 0.12MB , pdf
