AMS3518 anchor rail, slot 16.5 mm, BK, unperforated 2000 | 35 | 18 | 2 | Steel | Bright

AMS3518 anchor rail, slot 16.5 mm, BK, unperforated

Item no. 1112023 | EAN 4012195043157

Item no. / Types

Length

Width	35 mm

Height	18 mm

Material thickness	2 mm

Material	Steel

Surface

Product description

Product description

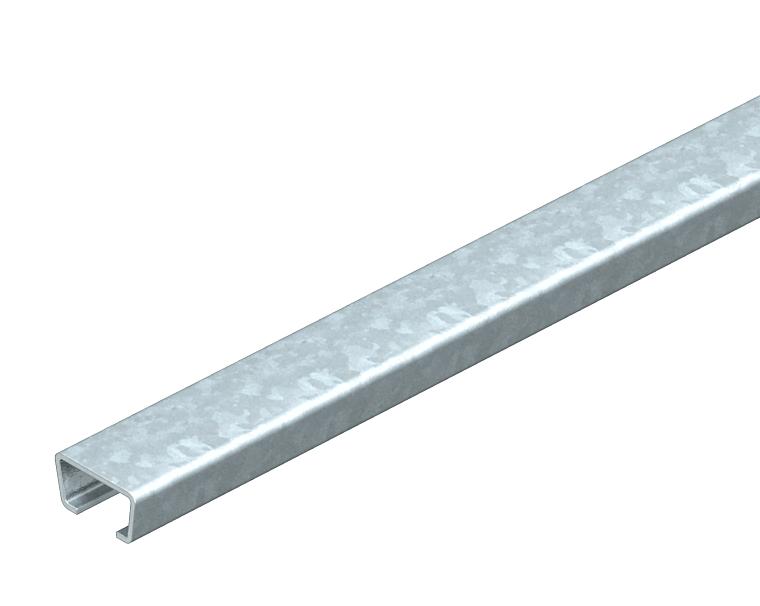

Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.

Technical data

Technical data

Breakable	no
Bundle	20 m

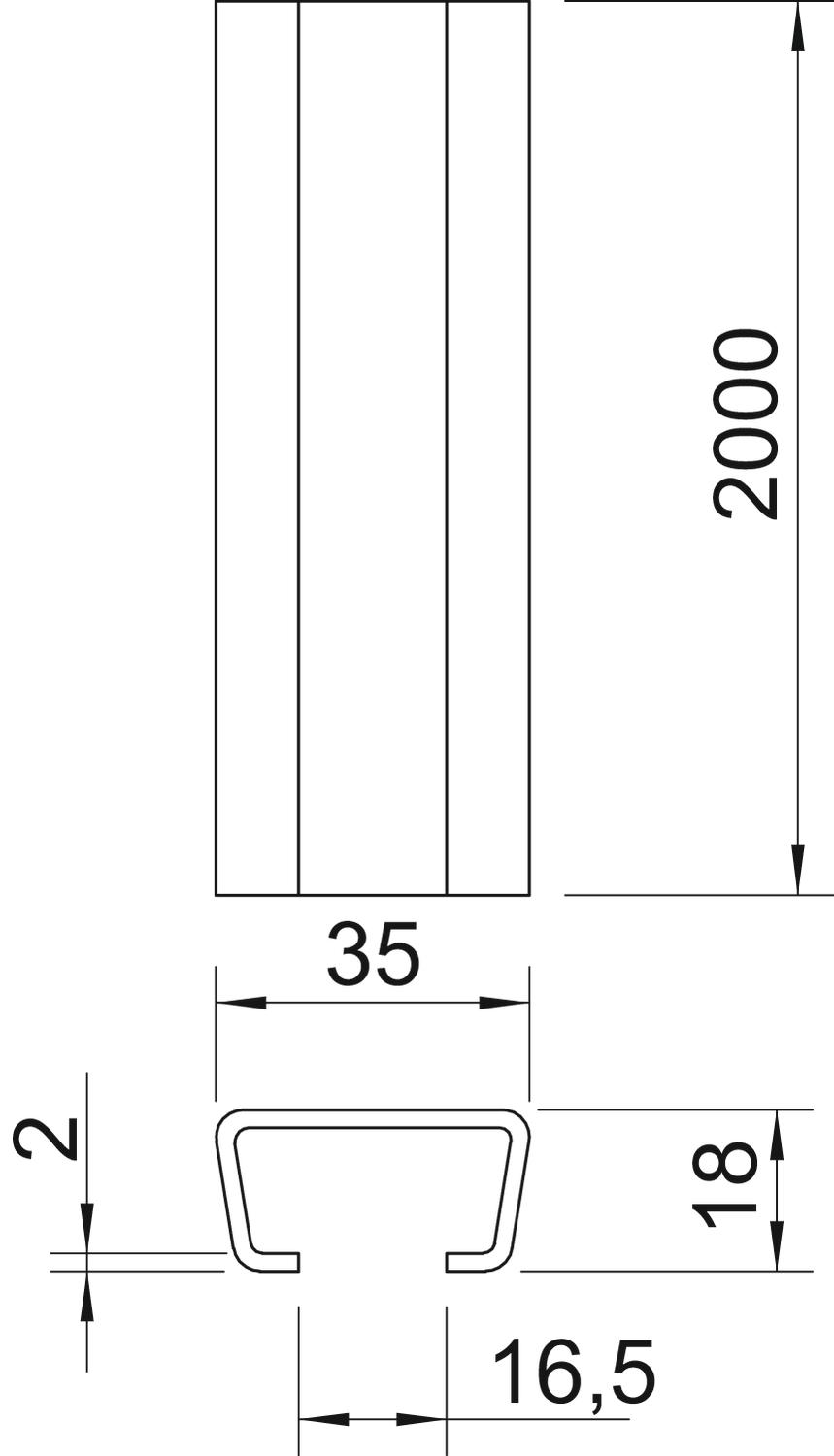

Dimension	2000x35x18
Maintain electrical functions	no
Material	Steel
Material thickness	2 mm
Profile shape	C profile
Slot width	16,5 mm
Static value A	1,48 cm²

Static value ly	0,6 cm
Static value lz	2,33 cm
Static value Wy	0,54 cm²
Static value Wz	1,33 cm²
Surface	Bright
Type of perforation	Without
Version for	Single profile
With perforation	no
With toothing	no

Dimensions

Dimension L	2000 mm
Height	18 mm

Length	2000 mm
Width	35 mm

All types

All types

Types	Length	Width	Height	Material thickness	Material	Surface	Item no.	Quantity	SSU
AMS3518UP2000BK	2000 mm	35 mm	18 mm	2 mm	Steel	Bright	1112023	m	2 m
AMS3518UP6000BK	6000 mm	35 mm	18 mm	2 mm	Steel	Bright	1112074	m	6 m
AMS3518UP2000FS	2000 mm	35 mm	18 mm	2 mm	Steel	Strip galvanized	1112120	m	2 m
AMS3518UP6000FS	6000 mm	35 mm	18 mm	2 mm	Steel	Strip galvanized	1112139	m	6 m
AMS3518UP2000FT	2000 mm	35 mm	18 mm	2 mm	Steel	Hot-dip galvanised	1112228	m	2 m
AMS3518UP6000FT	6000 mm	35 mm	18 mm	2 mm	Steel	Hot-dip galvanised	1112244	m	6 m
