Angle connector 60 FS
Item no. 6043062 | EAN 4012196050178
- Product description
-
Product description

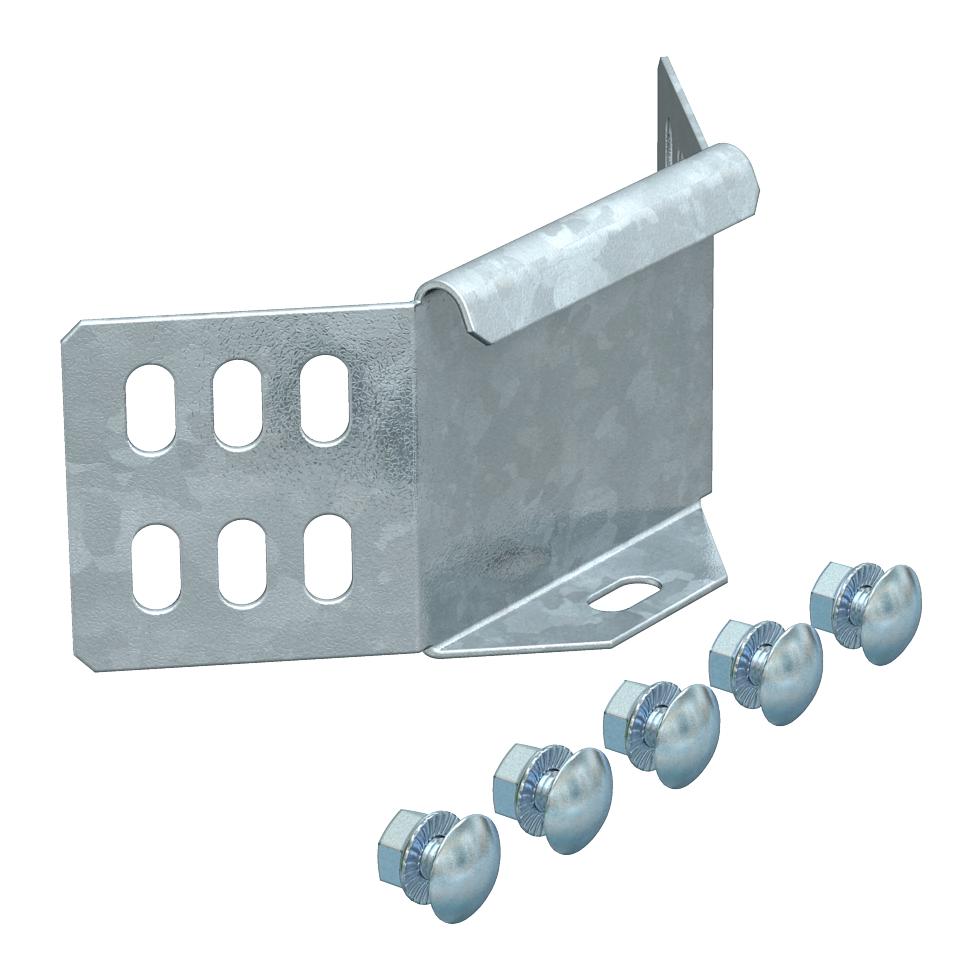

Angle connector for cable trays with a side height of 60 mm.
-
- Technical data
-
Technical data

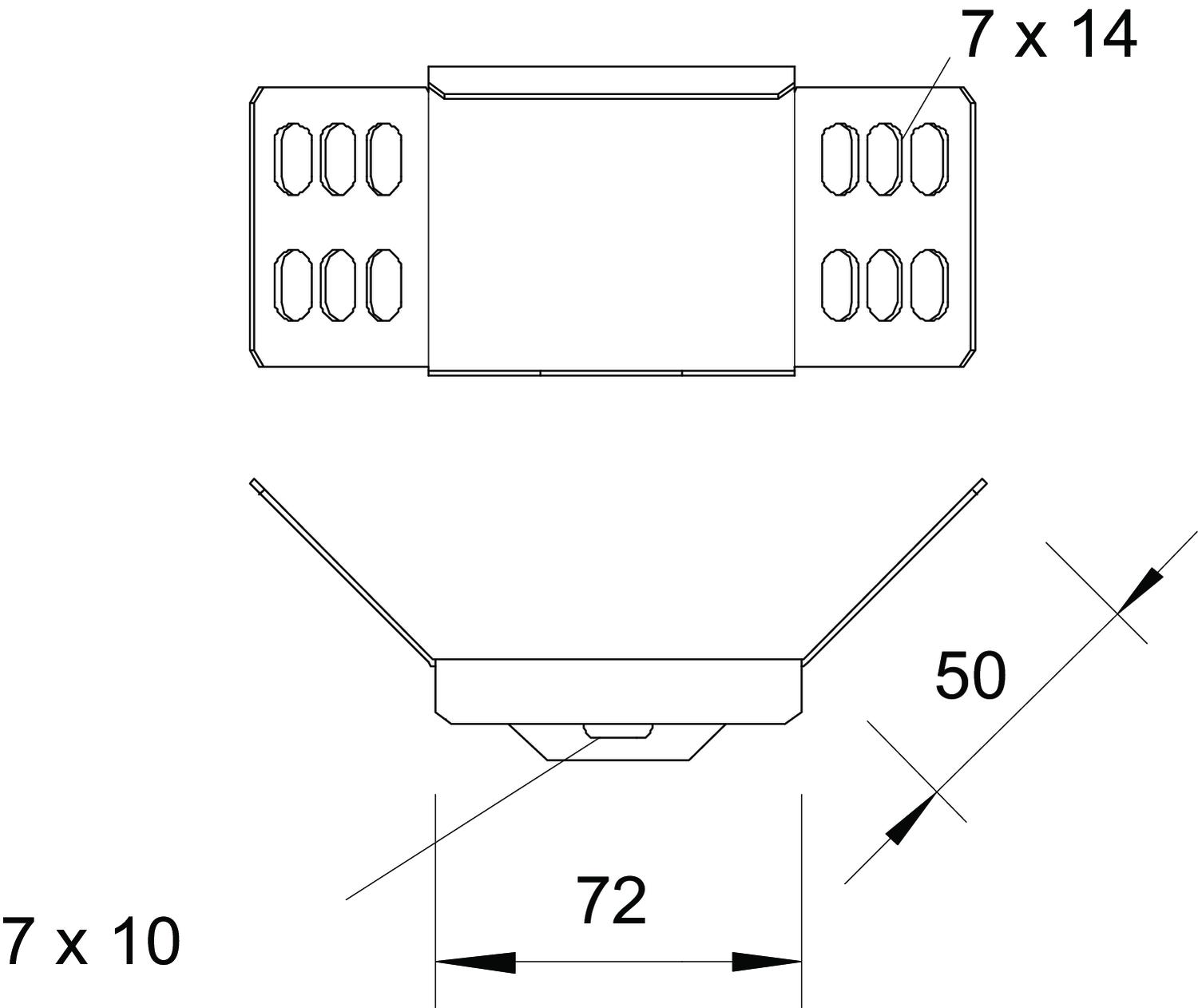

Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Height 2 in Height 62 mm Length 72 mm Maintain electrical functions no Material Steel Plate thickness 1,25 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 60 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Angle connector Width 50 mm - All types
- Downloads
-
Data sheet WKV 60 FS / 6043062 , 0.21MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity WKV 60 FS / 6043062 , 0.11MB , pdfUK Declaration of Conformity WKV 60 FS / 6043062 , 0.09MB , pdfREACH Declaration of conformity WKV 60 FS / 6043062 , 0.12MB , pdfRoHS Declaration of conformity WKV 60 FS / 6043062 , 0.12MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
