Angle profile WESP 50 FT

Item no. / Types	7105673 / WESP 50 40 FT

Length	3000 mm

Plate thickness	4 mm

Product description

Product description

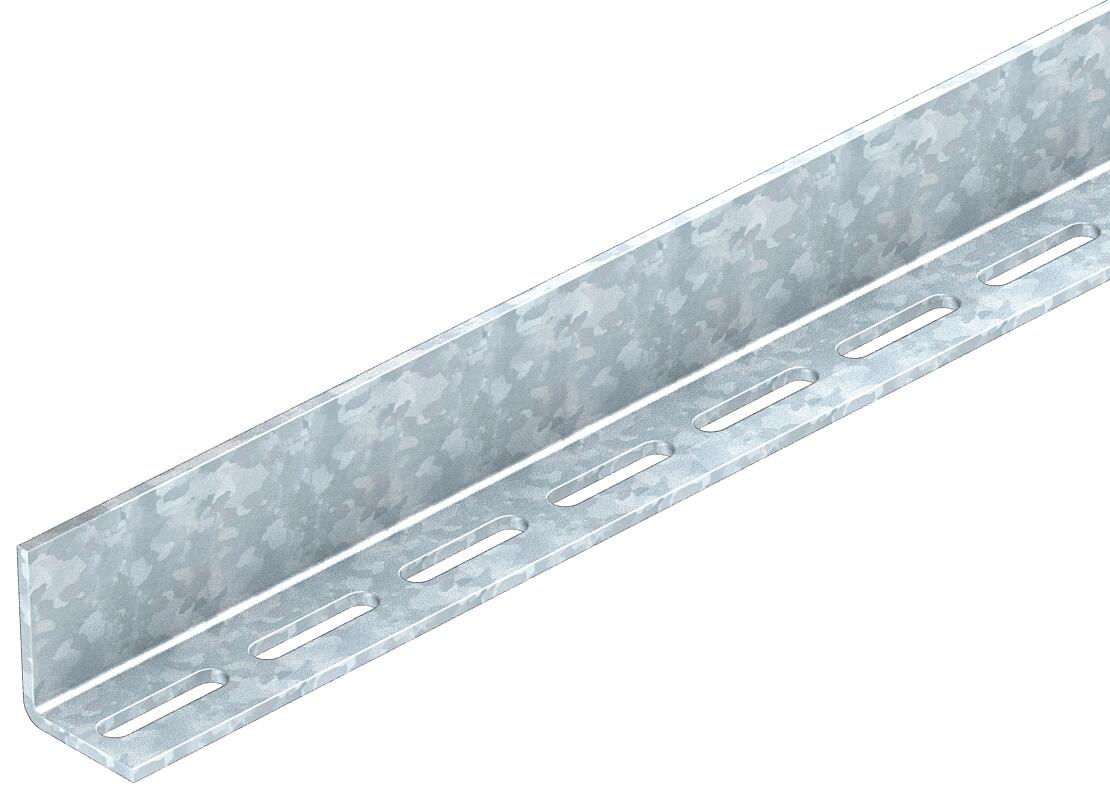

Angle profile with longitudinal perforation row to create suspension and support constructions.

Technical data

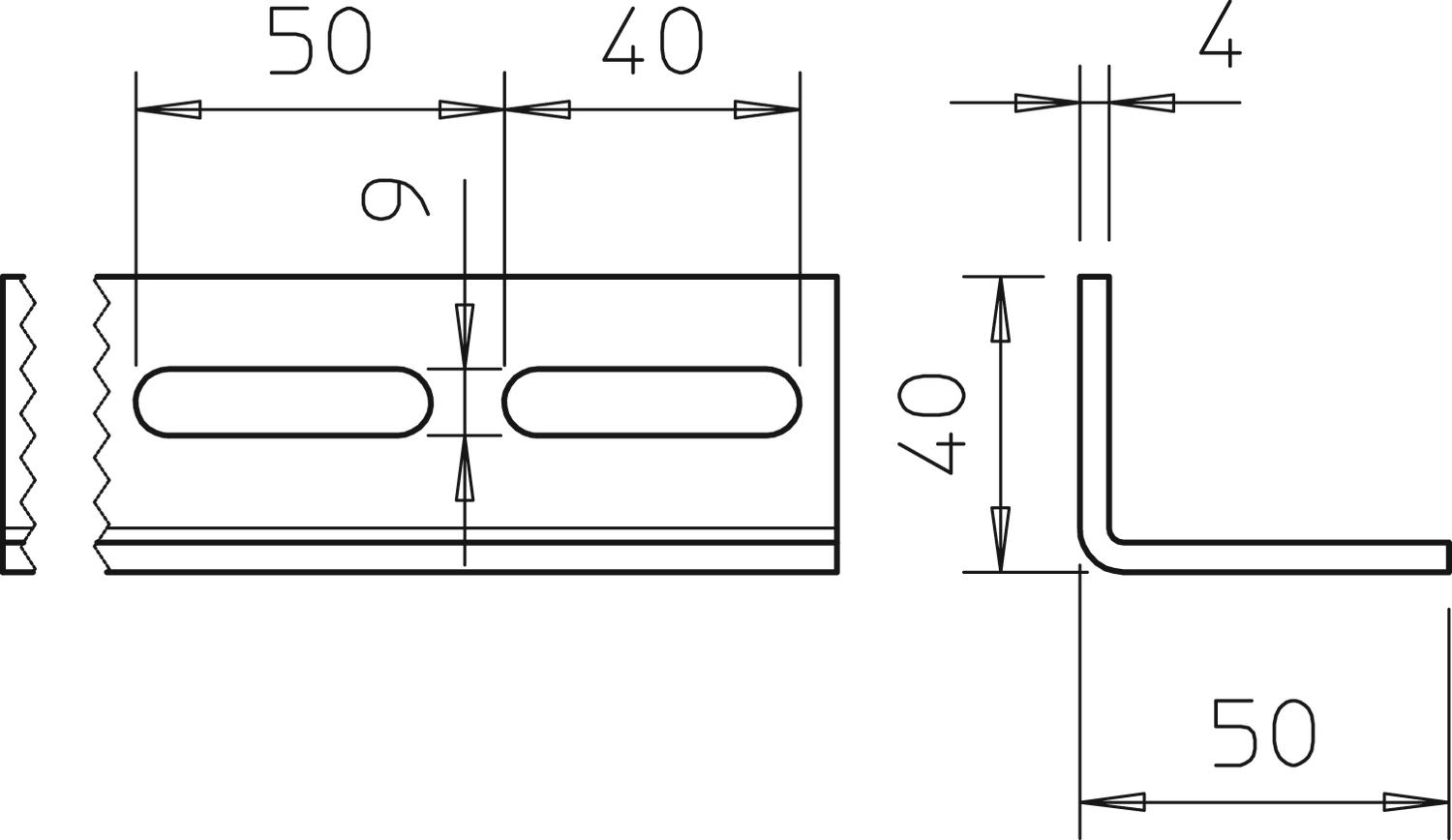

Dimension	40x50x3000
Material	Steel

Plate thickness	4 mm
Surface	Hot-dip galvanised

Height	40 mm
Length	3000 mm

Width	50 mm

All types

Types	Length	Plate thickness	Item no.	Quantity	SSU
WESP 50 40 FT	3000 mm	4 mm	7105673	m	3 m

Downloads

Data sheet WESP 50 40 FT / 7105673 , 0.17MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Solutions for ship construction , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity WESP 50 40 FT / 7105673 , 0.17MB , pdf

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf
