Angle profile WP30/35
Item no. 6373100 | EAN 4012196199754
- Product description
-
Product description

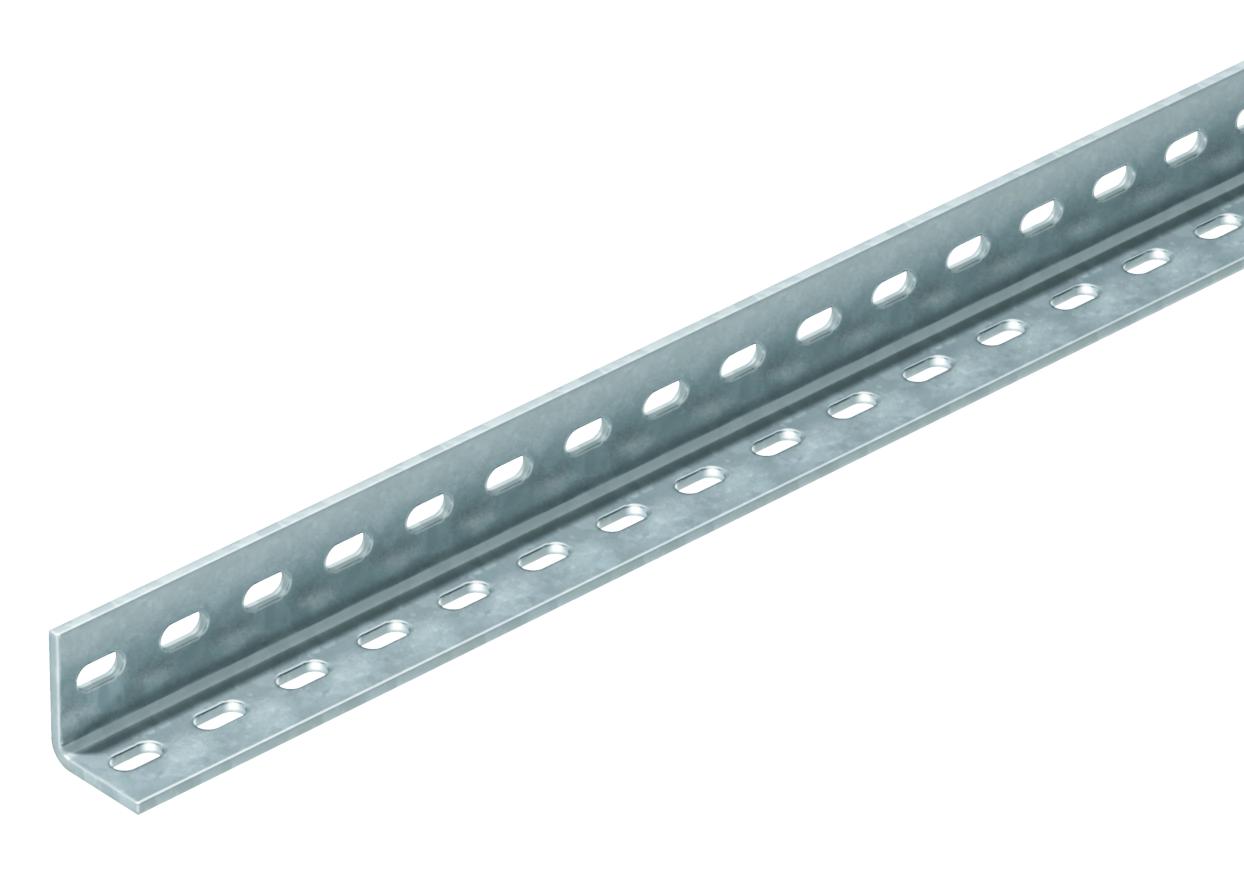

Perforated angle profile for creation of special support structures.
-
- Technical data
-
Technical data

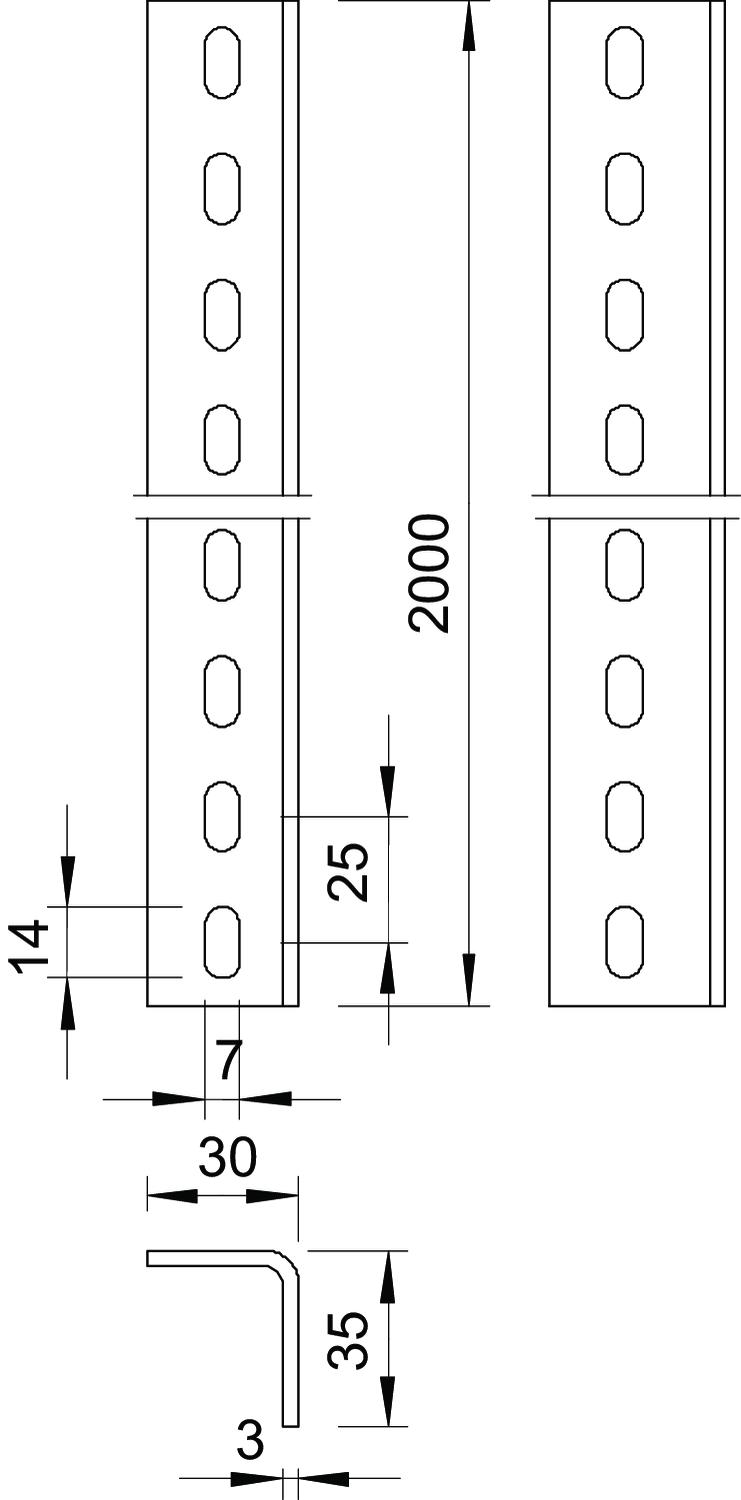

Breakable no Dimension 30x35x2000 Height 30 mm Length 2000 mm Maintain electrical functions no Material Steel Mounting perforation in base yes Plate thickness 3 mm Profile shape L profile Side perforation yes Static value A 1,38 cm² Static value ly 1,82 cm Static value lz 1,29 cm Static value Wy 0,75 cm² Static value Wz 0,59 cm² Surface Hot-dip galvanised Type of perforation 2 sides perforated Version for Single profile Width 35 mm With toothing no - All types
