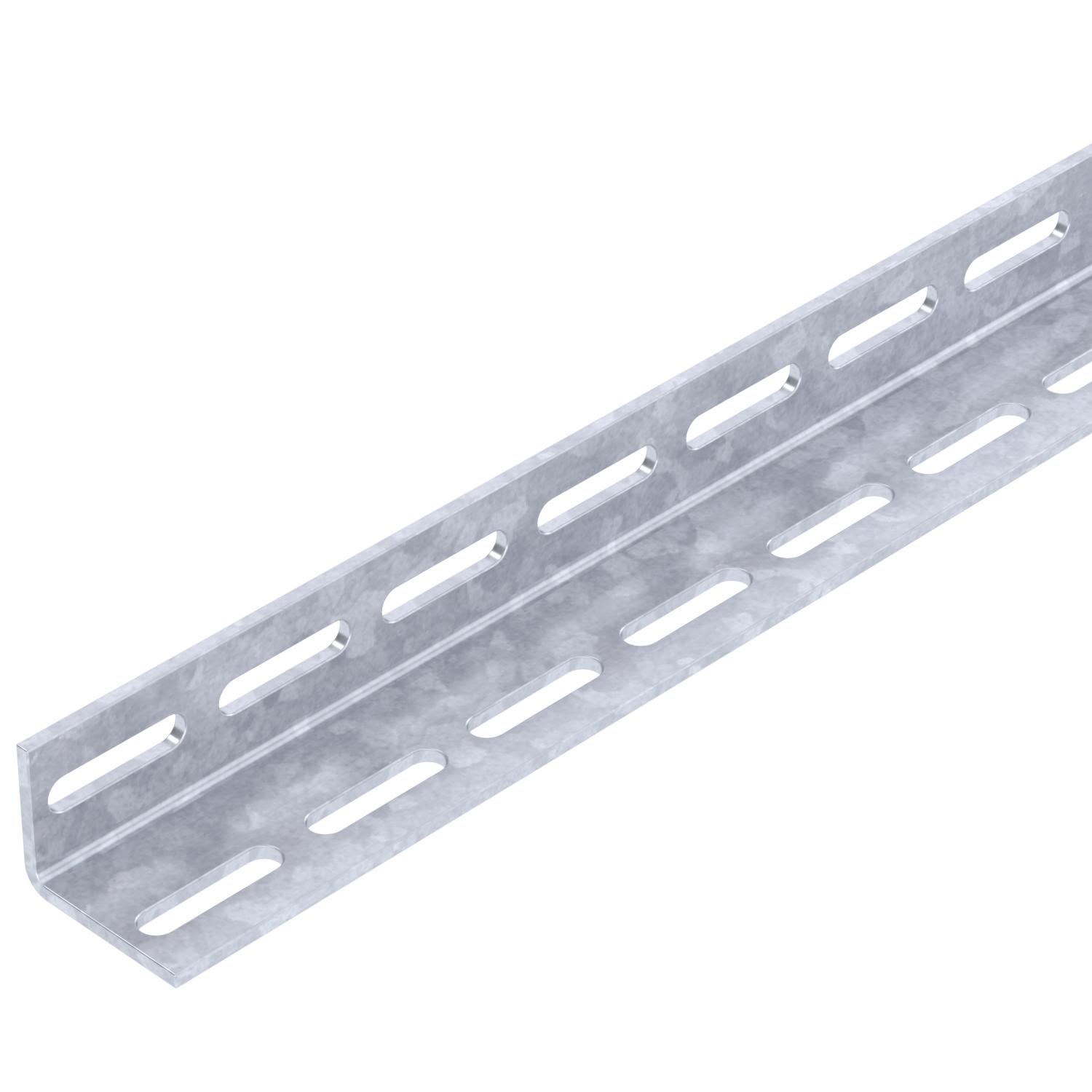

Angle profile WP40/50
Item no. 6373200 | EAN 4012196169160
- Product description
-
Product description
Perforated angle profile for the creation of special support structures.
-
- Technical data
-
Technical data

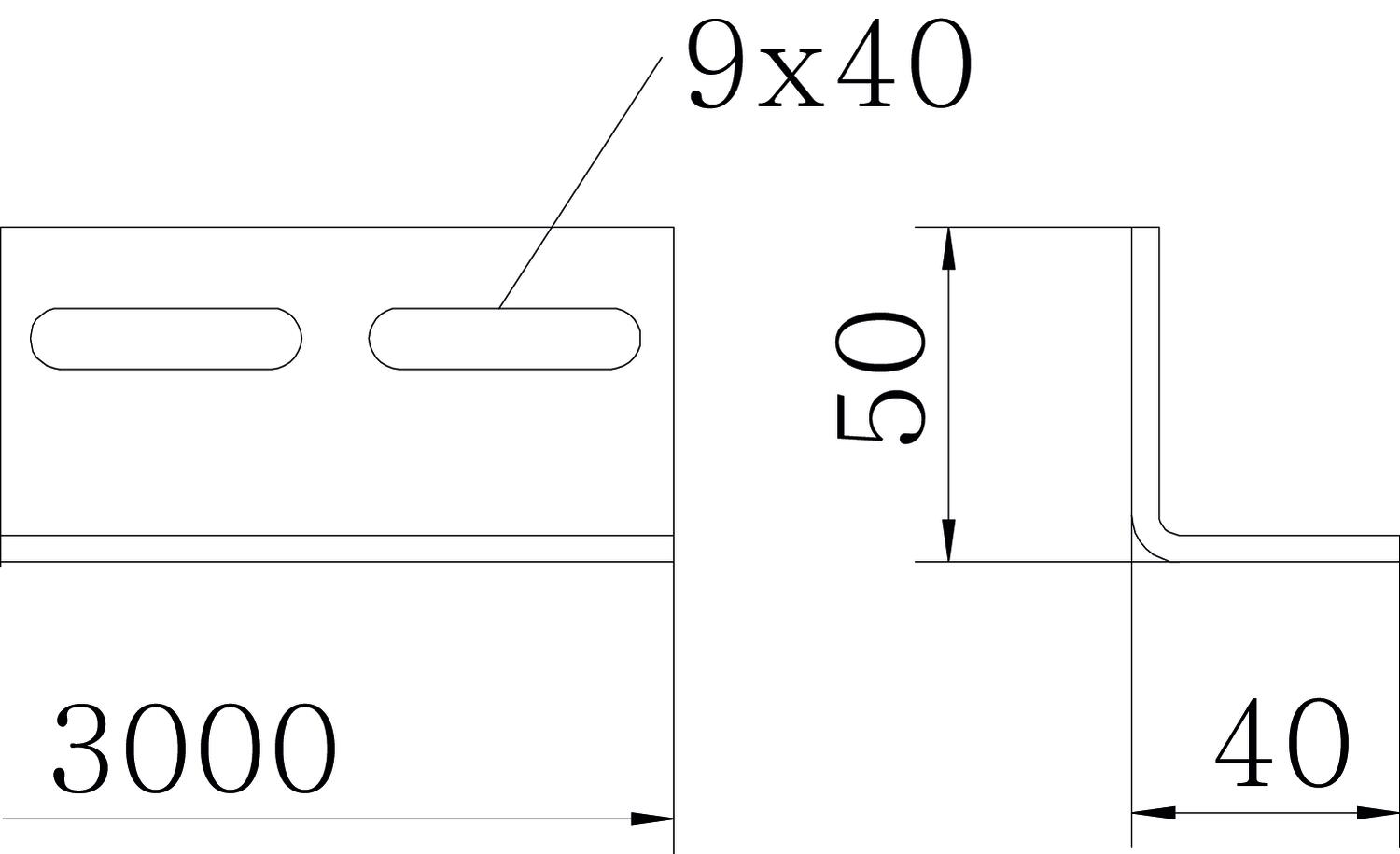

Breakable no Dimension 40x50x3000 Maintain electrical functions no Material Steel Mounting perforation in base yes Plate thickness 4 mm Profile shape L profile Side perforation yes Surface Hot-dip galvanised Type of perforation 2 sides perforated Version for Single profile With toothing no Dimensions
Height 40 mm Length 3000 mm Width 50 mm - All types
- Downloads
-
Data sheet WP 40 50 3000 FT / 6373200 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity WP 40 50 3000 FT / 6373200 , 0.17MB , pdfREACH Declaration of conformity WP 40 50 3000 FT / 6373200 , 0.12MB , pdfRoHS Declaration of conformity WP 40 50 3000 FT / 6373200 , 0.12MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdf
