Angle profile WP40/65
Item no. 6373070 | EAN 4012196199693
- Product description
-
Product description

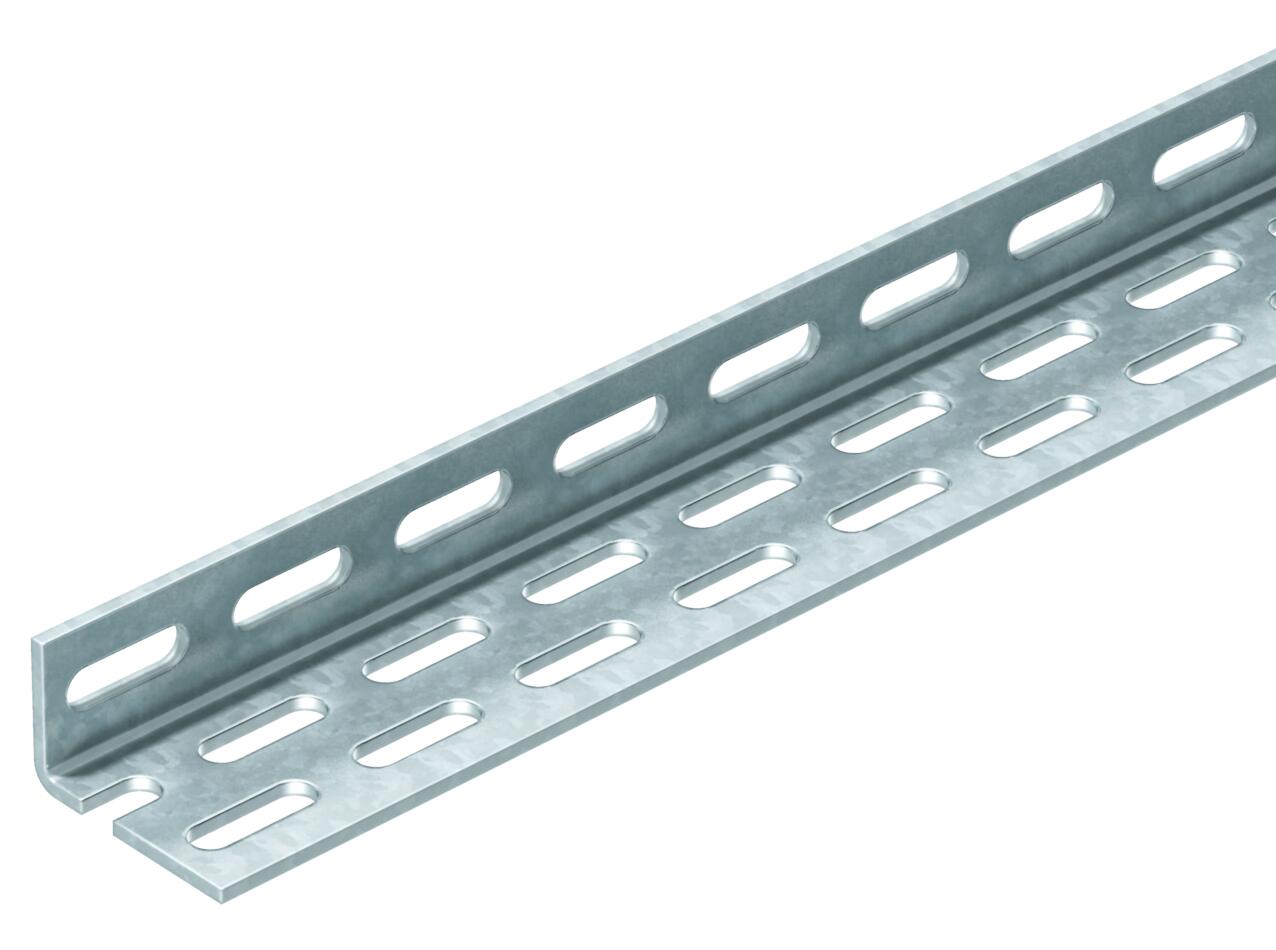

Perforated angle profile for creation of special support structures.
-
- Technical data
-
Technical data

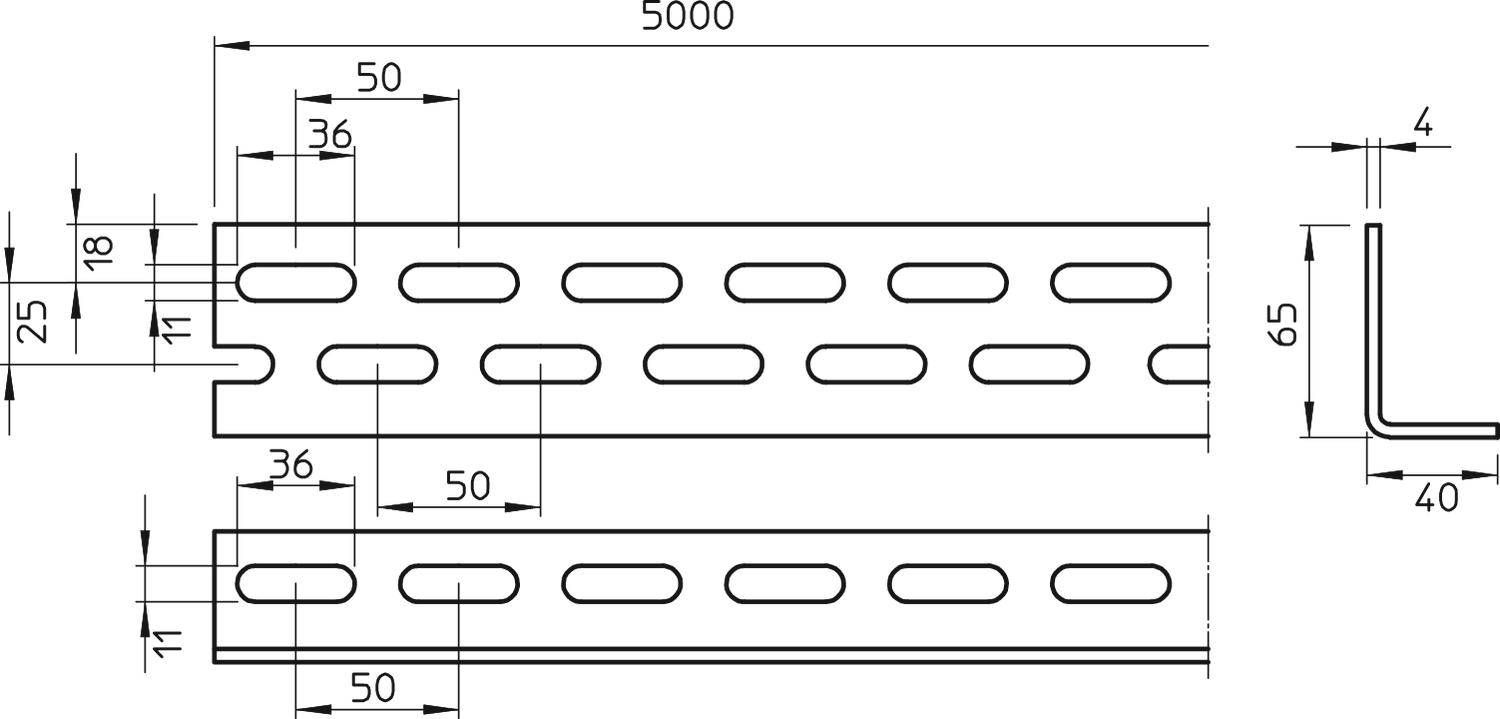

Breakable no Dimension 40x65x5000 Height 40 mm Length 5000 mm Maintain electrical functions no Material Steel Mounting perforation in base yes Plate thickness 4 mm Profile shape L profile Side perforation yes Surface Hot-dip galvanised Type of perforation 2 sides perforated Version for Single profile Width 65 mm With toothing no - All types
- Downloads
-
Data sheet WP 40 65 5000 FT / 6373070 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity WP 40 65 5000 FT / 6373070 , 0.11MB , pdfREACH Declaration of conformity WP 40 65 5000 FT / 6373070 , 0.12MB , pdfRoHS Declaration of conformity WP 40 65 5000 FT / 6373070 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
