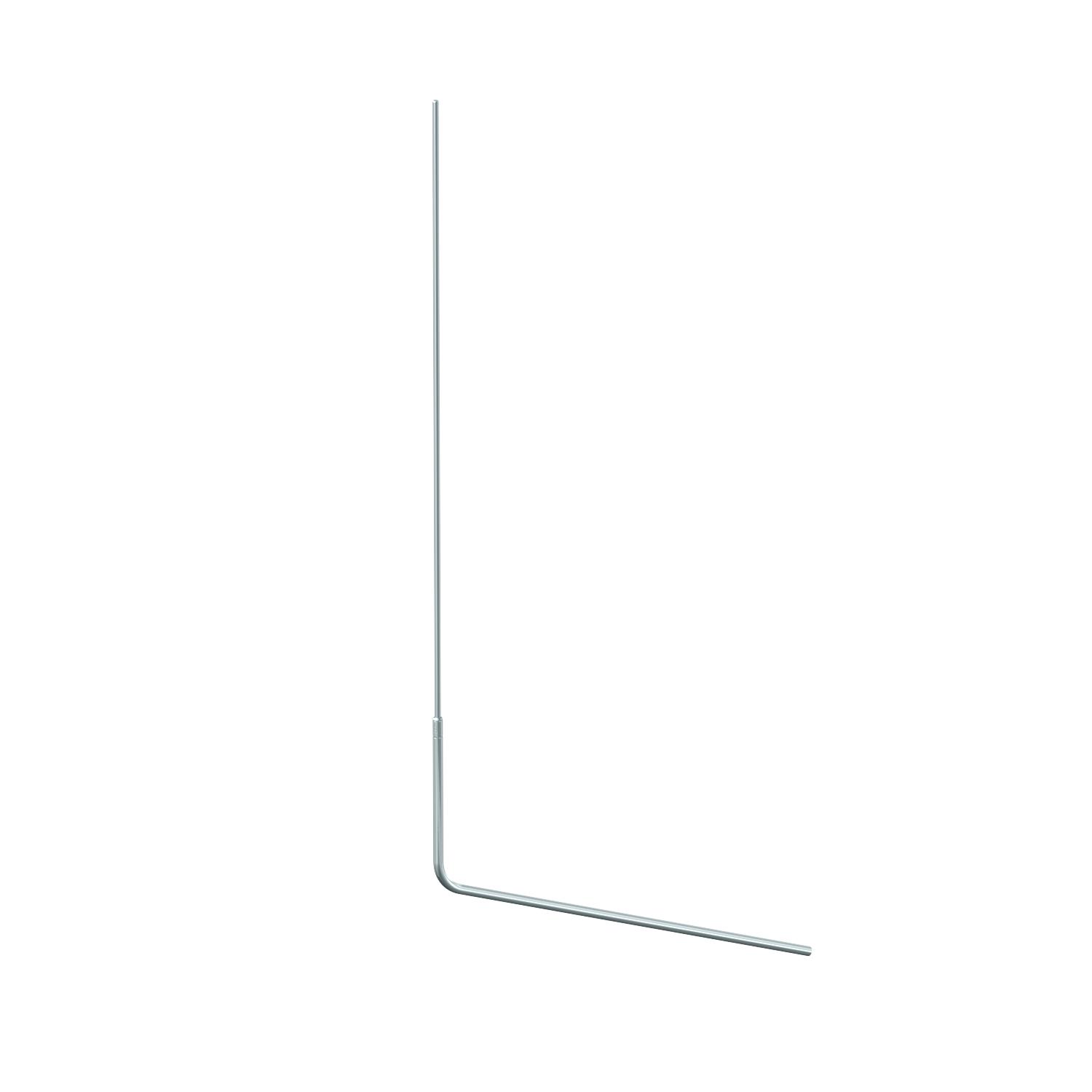

Angled air-termination rod for PV frames

Item no. 5401950 | EAN 4012196691593

5401950 / 101 VL2000 112
2000 mm
10/16 mm
Product description

Product description

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Last metre is tapered from Ø 16 mm to Ø 10 mm, material: AlMgSi
• Angled to 112°
Technical data

Technical data

Connection Round conductor

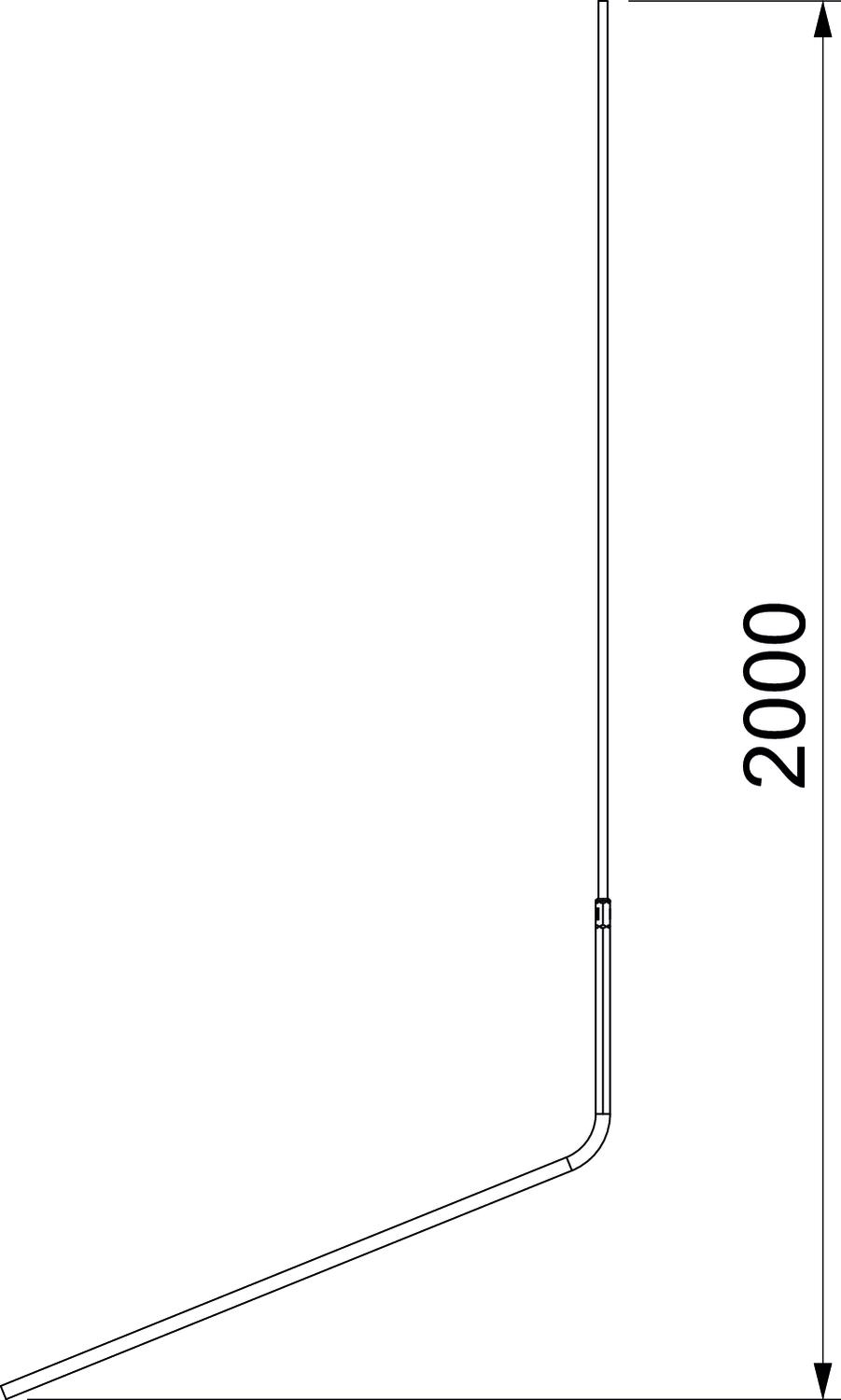

Dimension 2000
High voltage-resistant, insulated version no
Length 2000 mm
Material Aluminium
Nominal size Ø 10/16 mm
Version for Tapered air-termination rod
All types

All types

Types Length Nominal size Ø Item no. Quantity SSU
101 VL2000 112 2000 mm 10/16 mm 5401950
10 piece
