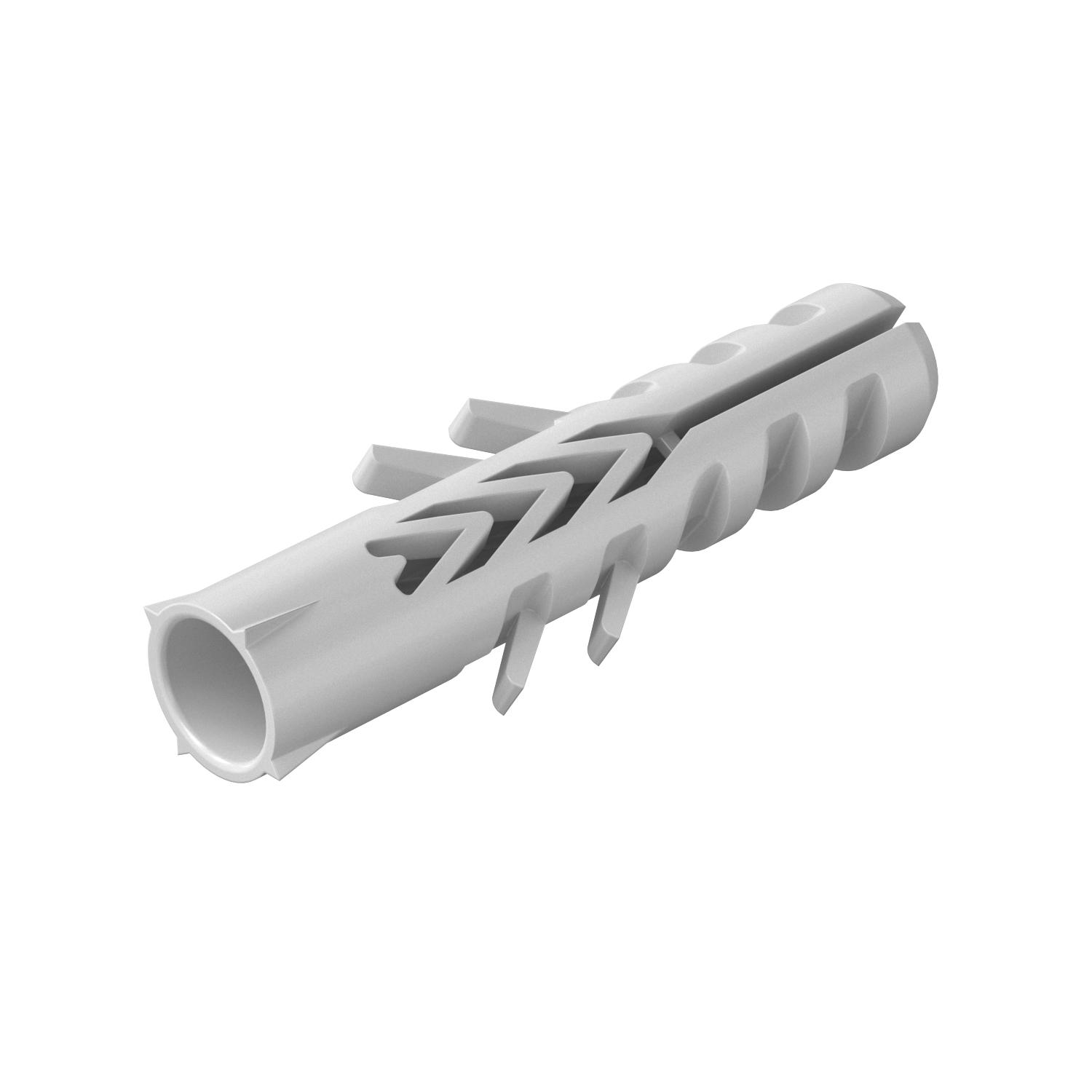

Angler spreading anchor

Item no. 2349486 | EAN 4012196788644

Item no. / Types

Length

Diameter

Drill hole depth

Drill hole diameter, min.

Product description

Product description

Required minimum screw length = anchor length + component thickness + 1 x screw Ø.
Withdrawal force applies to wood screws of the largest screw diameter, required safety values must be taken into account.

Technical data

Technical data

Colour	Light grey
Diameter	10 mm

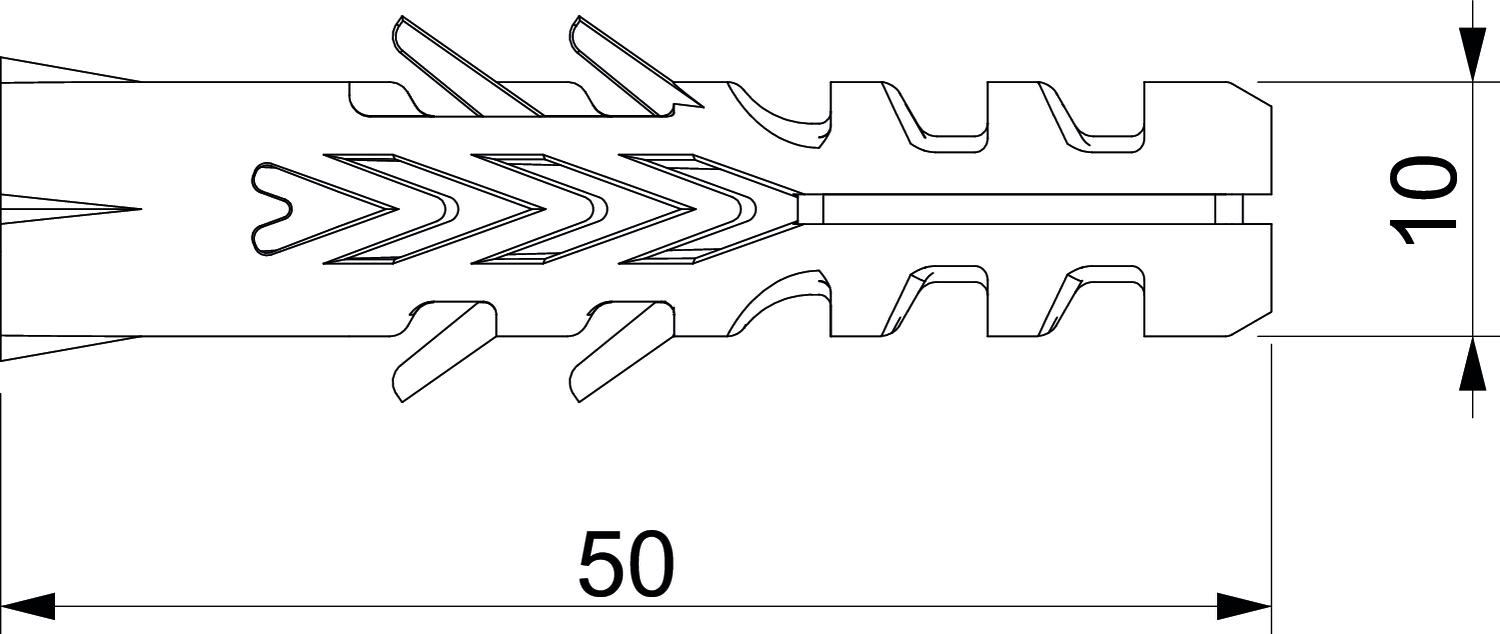

Dimension	10x50
Dimension D	10 mm
Dimension L	50 mm
Length	50 mm

Material	Polyamide
Suitable for fastening with cable ties	no
Suitable for hexagonal wood screw	yes
Version for	Universal anchor
With bolts	no
Wood screws	6-8

All types

All types

Types	Length	Diameter	Drill hole depth	Drill hole diameter, min.	Item no.	Quantity	SSU
910 F 5x25	25 mm	5 mm	30 mm	5 mm	2349480	piece	100 piece
910 F 6x30	30 mm	6 mm	-	-	2349482	piece	100 piece
910 F 8x40	40 mm	8 mm	-	-	2349484	piece	100 piece
910 F 10x50	50 mm	10 mm	-	-	2349486	piece	50 piece
910 F 12x60	60 mm	12 mm	-	-	2349488	piece	25 piece
