Antenna connection, 1 module, TV / radio / SAT, antenna socket, black-grey Black-grey; RAL 7021

morepic-1

morepic-2

Antenna connection, 1 module, TV / radio / SAT, antenna socket, black-grey

Item no. 6105284 | EAN 4012196164769

Item no. / Types

Colour

Product description

Product description

Socket for antenna, BK and satellite reception systems with connection for TV and radio.

Frequency: 5–2150 MHz

Heat attenuation: 5-862 MHz - 1dB

950-2150 MHz - 2 dB

Return channel attenuation: 14 dB

EMC protection class A
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Technical data

Technical data

Colour	Black-grey; RAL 7021
Dimension	45 x 45
Dimension	45x45mm

Material	Polycarbonate
Version for	Socket

All types

All types

Types	Colour	Item no.	Quantity	SSU
ANT-3SD RW1	Pure white; RAL 9010	6105282	piece	1 piece
ANT-3SD SWGR1	Black-grey; RAL 7021	6105284	piece	1 piece
ANT-3SD AL1	Aluminium painted	6105286	piece	1 piece

Downloads

Data sheet ANT-3SD SWGR1 / 6105284 , 0.21MB , pdf

Catalogue Installation systems , 28.45MB , pdf

Declaration of conformity ANT-3SD SWGR1 / 6105284 , 0.06MB , pdf

Download

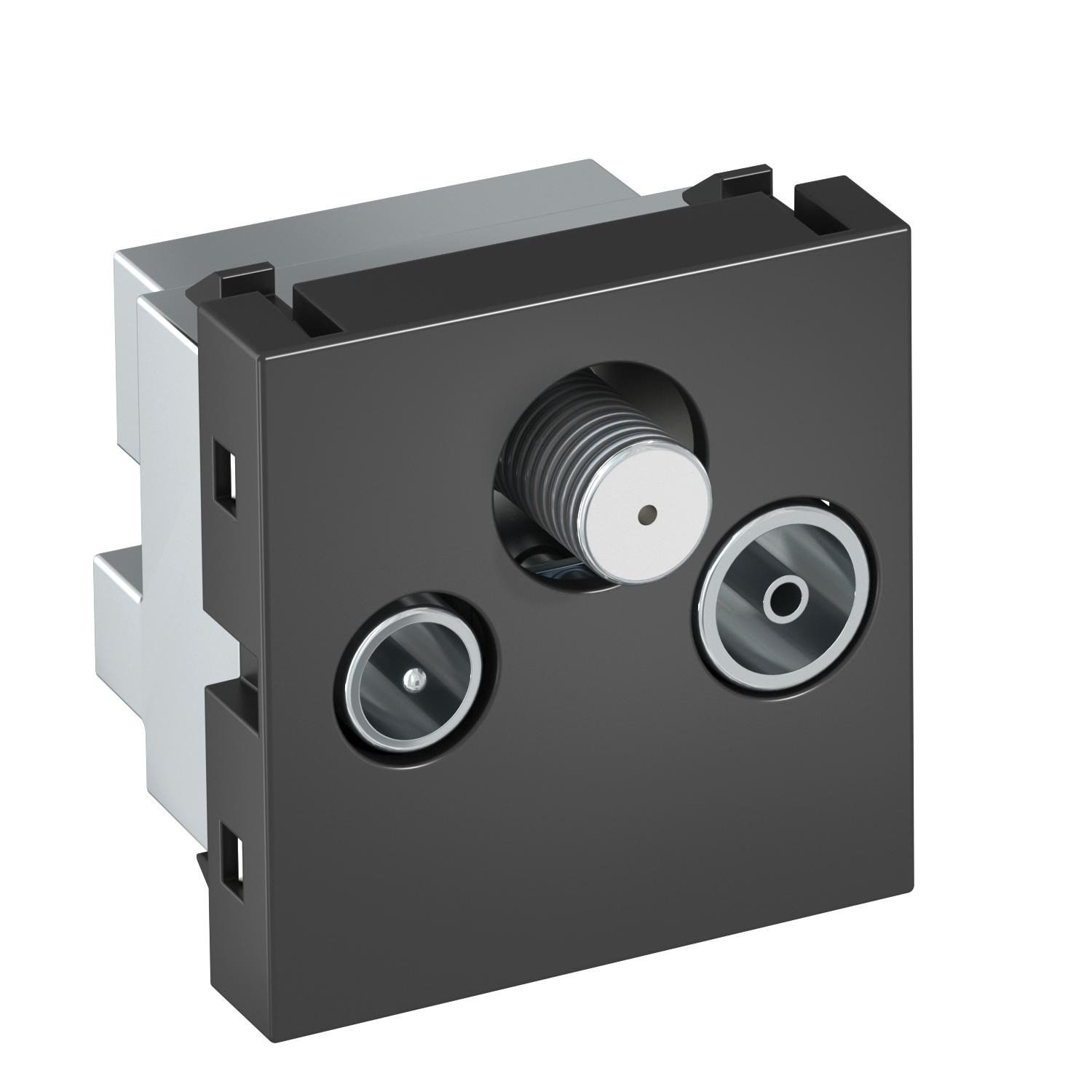

Product graphic ANT-3SD SWGR1 / 6105284, 68.90 kB, jpg

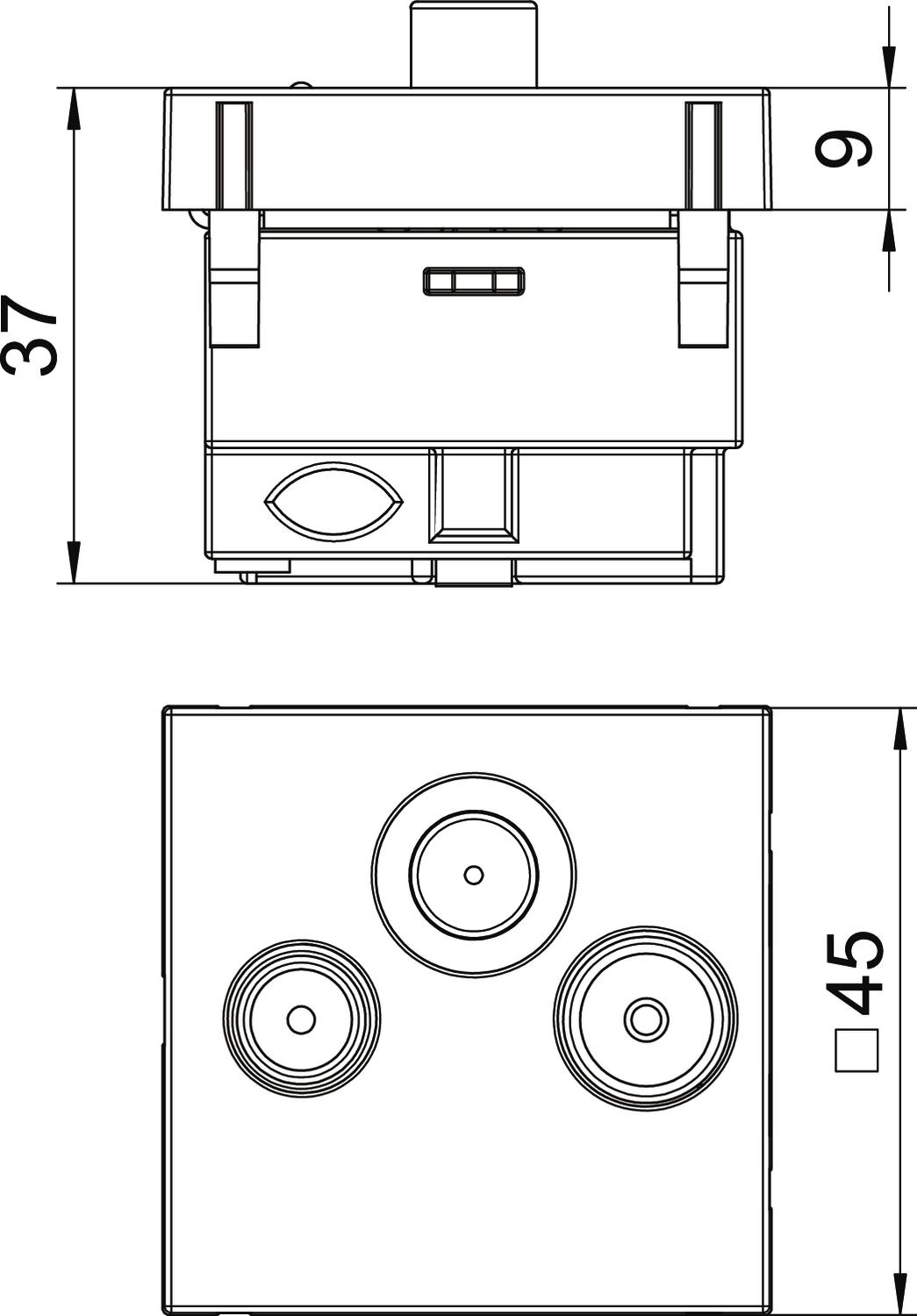

Scale drawing ANT-3SD SWGR1 / 6105284, 89.26 kB, jpg

No invitation to tender text is available for this product.
