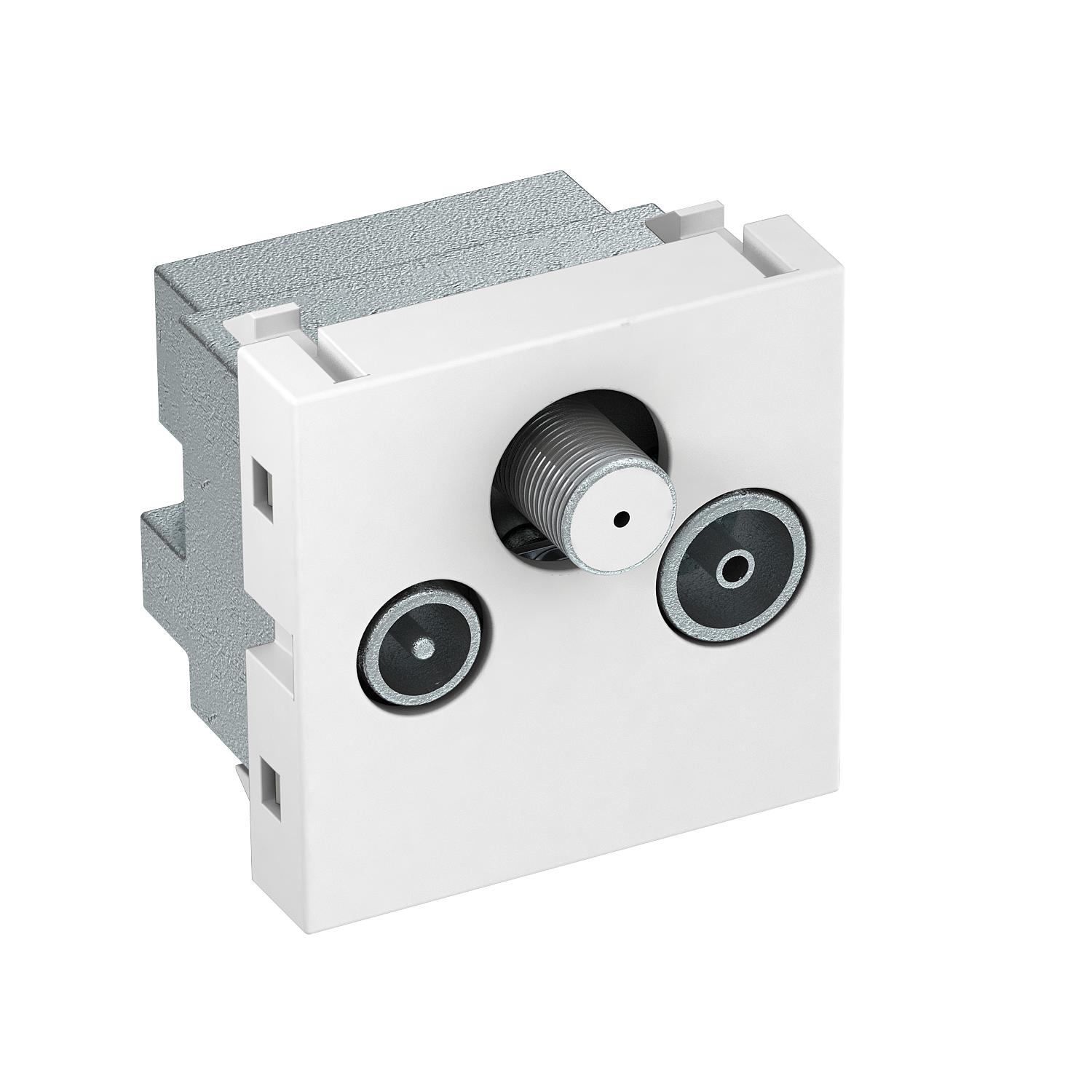

Antenna connection, 1 module, TV/radio/SAT, antenna socket, pure white
Item no. 6105282 | EAN 4012196164752
- Product description
-
Product descriptionSocket for antenna, BK and satellite reception systems with connection for TV and radio.
Frequency: 5–2150 MHz
Heat attenuation: 5-862 MHz - 1dB
950-2150 MHz - 2 dB
Return channel attenuation: 14 dB
EMC protection class A
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
- Technical data
-
Technical data

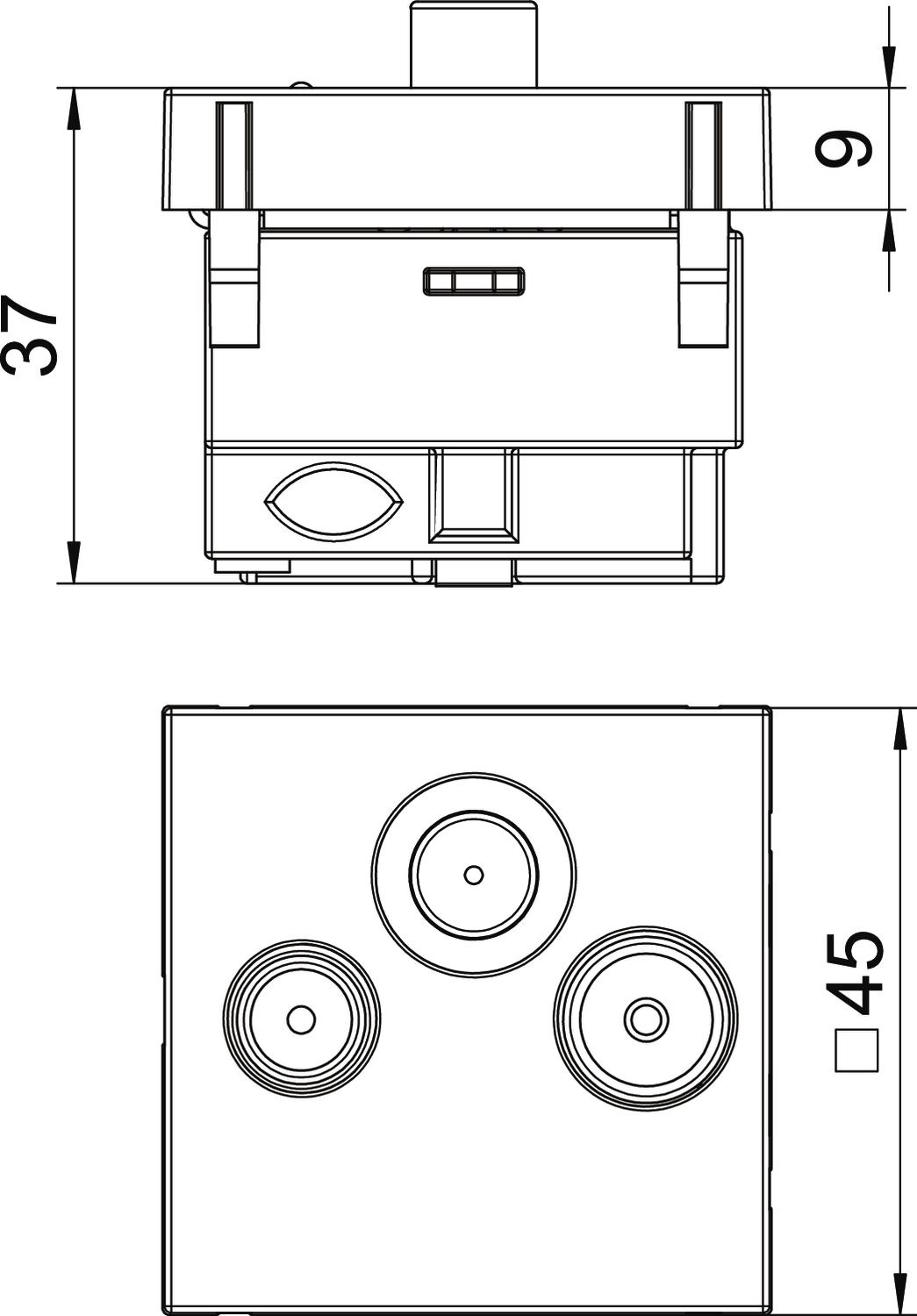

Colour Pure white; RAL 9010 CO₂ Footprint (GWP) Cradle-to-Gate 0,315 kg CO₂e / 1 Piece Dimension 45 x 45 Dimension 45x45mm Material Polycarbonate Number of units 1 Version for Socket - All types
- Downloads
-
Data sheet ANT-3SD RW1 / 6105282 , 0.19MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity ANT-3SD RW1 / 6105282 , 0.13MB , pdfNo invitation to tender text is available for this product.
