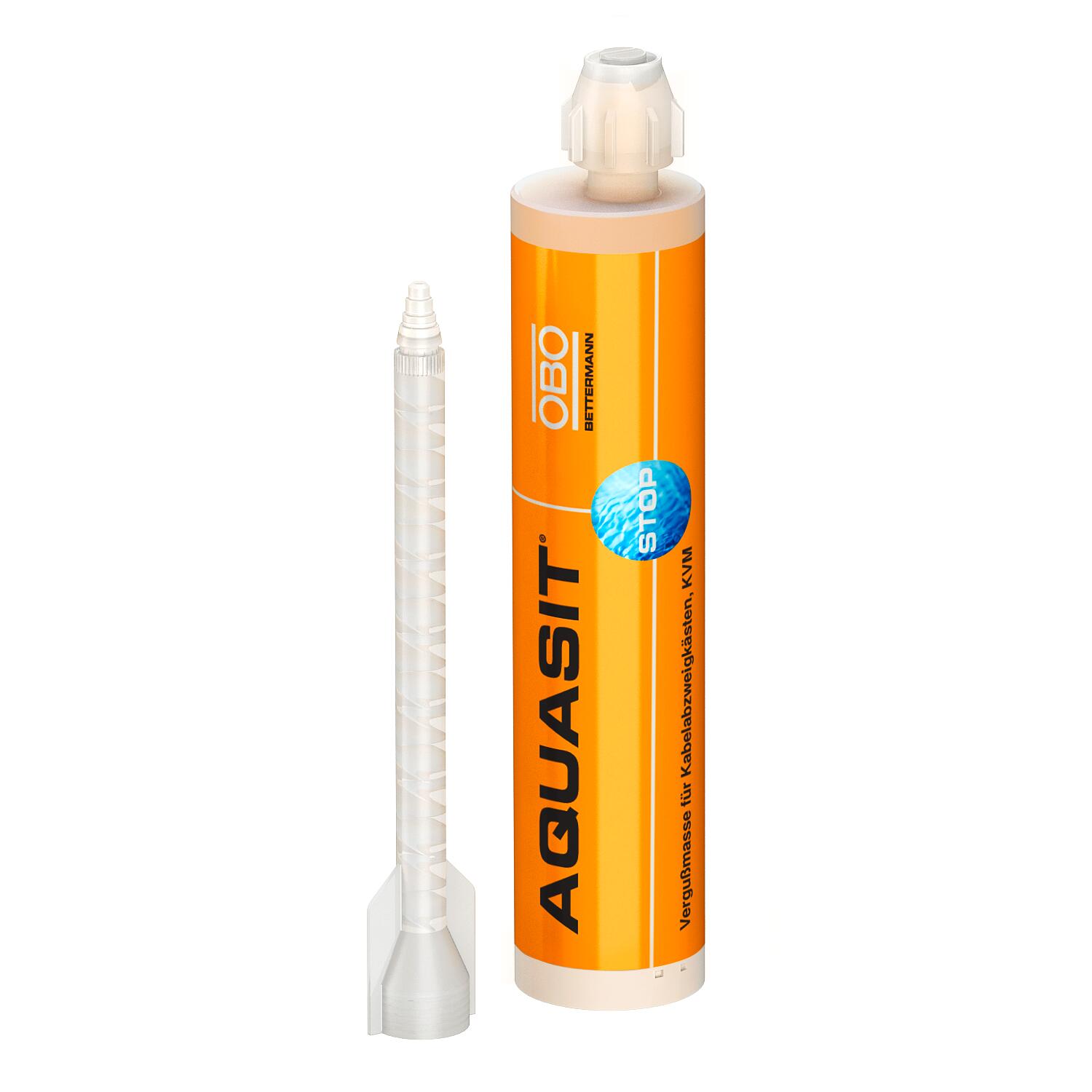

Aquasit cold casting compound, cartridge

Item no. 2363044 | EAN 4012197333522

2363044 / KVM 250
250 ml
Product description

Product description

Two-component casting compound Aquasit in a cartridge for filling junction boxes in outdoor areas exposed to high levels of and long-lasting dampness. Also applicable for use against mechanical shock.

Can be used with standard cartridge pistols. Processing time within 24 hours of opening and mixing. Can be stored unopened at 0 to 40 °C up to 24 months from date of production. Practical experience, tests and approvals only apply in conjunction with OBO junction boxes.

Protection rating with appropriate junction box: IP68

Rated voltage: 400 V

Penetration resistance: >25 kV/mm to VDE 0291 Part 2

Operating temperature: –40 to +80 °C

Processing temperature: 5 to +40 °C

Halogen-free, silicon-free, isocyanate-free

Environmentally friendly and without the need to be labelled
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Nominal voltage 400 V
Technical data

Technical data

Contents 250 ml

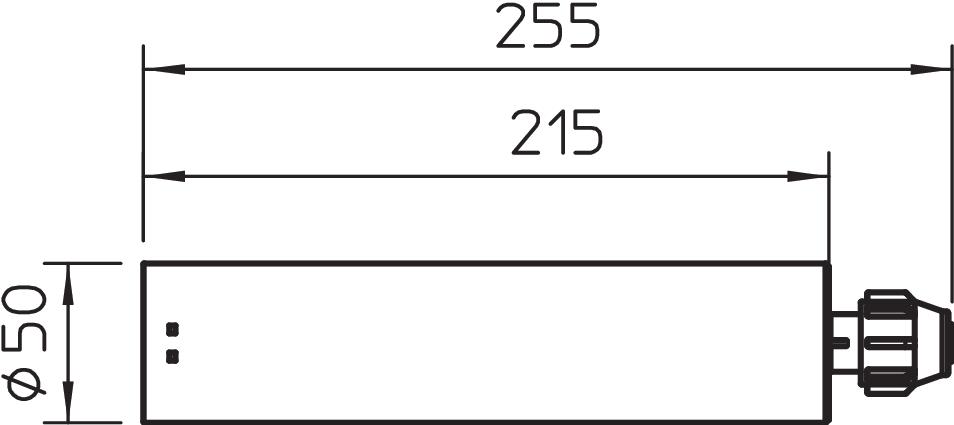

Dimension 250 ml
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Material cable resin Two-component polyurethane resin
All types

All types

Types Contents Item no. Quantity SSU
KVM 250 250 ml 2363044
1 piece
