AR45 socket unit, single
Item no. 6119401 | EAN 4012195889113
- Product description
-

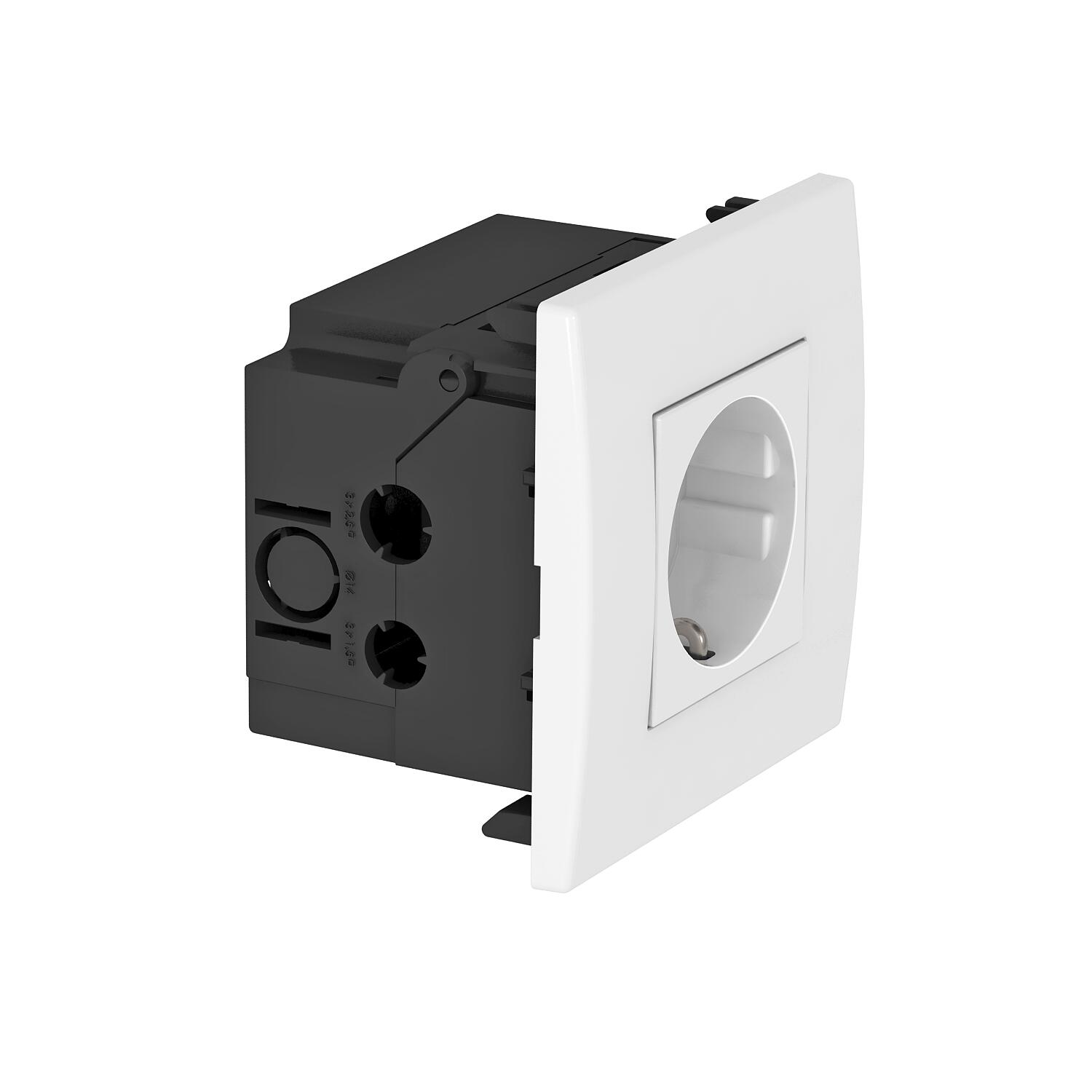

Product descriptionPre-terminated socket unit without labelling panel, suitable for installation in Rapid 80 device installation trunking systems.
Socket unit, consisting of:
- Accessory mounting box, single, type 71GD8-2
- Protective contact socket, single, 0° connection direction, colour: see table
- Cover frame AR45, single, without labelling panel, colour: pure white
For installation in Rapid 80 device installation trunking and ISS service poles.
- Technical data
-
Technical data

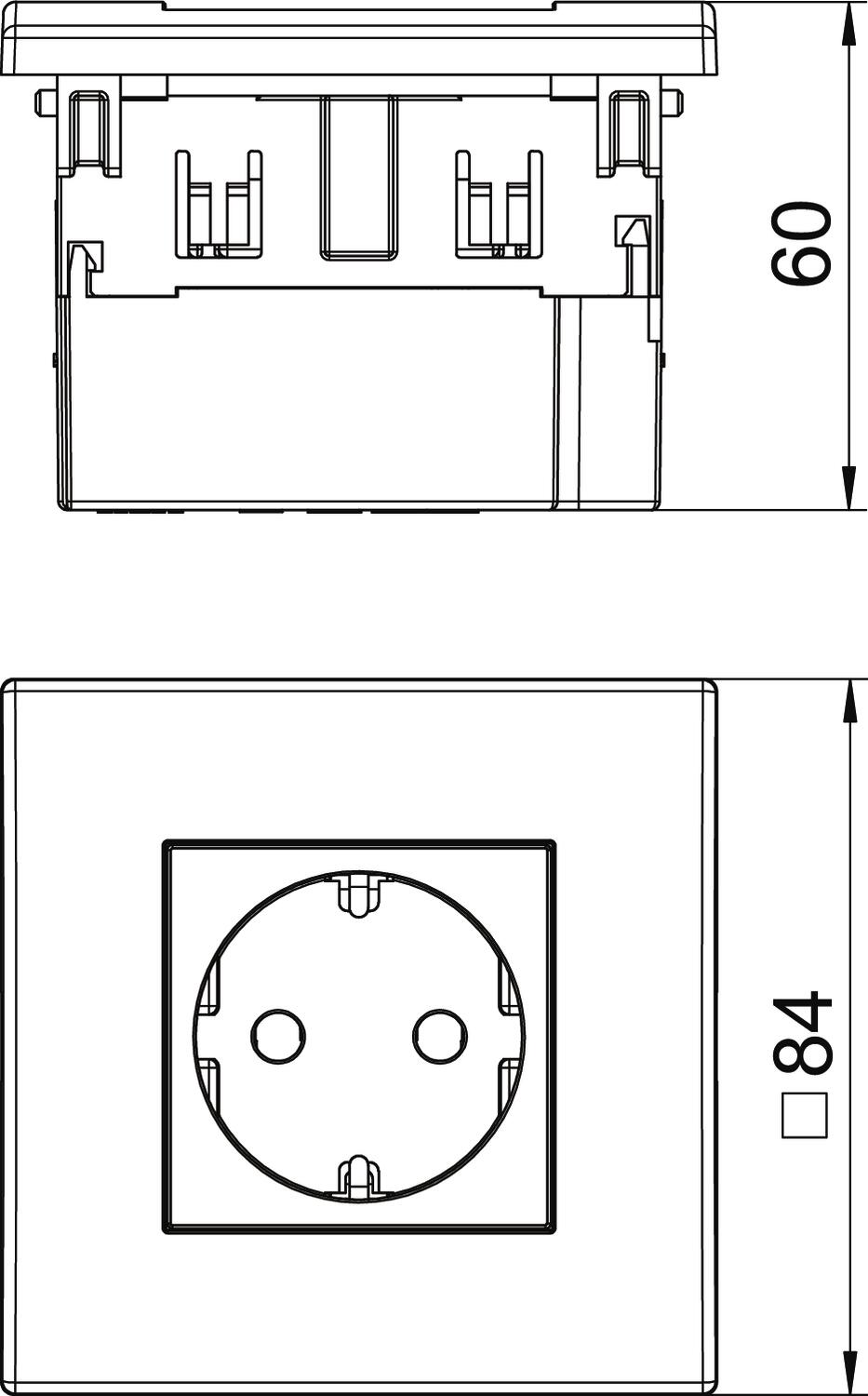

Closable no Coding no Colour Pure white; RAL 9010 Connection type Screwless terminal Cover Complete housing CO₂ Footprint (GWP) Cradle-to-Gate 0,576 kg CO₂e / 1 Piece Depth 60 mm Dimension 84x84x59mm Ejection mechanism no Error current protection no Fastening type Lock For more difficult conditions (according to VDE) no Halogen-free yes Height 84 mm Hinged cover no increased touch protection yes Insulated installation no Labelling panel no Material Polycarbonate Mounting type Device installation duct Nominal current 16 A Nominal voltage 250 V Number of poles 2 Number of units 1 Power reserve no Printed label/coding Without printing Protection rating Other Rotated central insert no Socket angle 0° Socket version Protective contact Special power supply Without special power supply Surface version Matt Surge protection no Transparent no Version for Single 0° Warning light no Width 84 mm With fine-wire fuse no With functional lighting no With on/off switch no With orientation lighting no - All types
- Downloads
-
Data sheet SDE-RW D0RW1 / 6119401 , 0.27MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity SDE-RW D0RW1 / 6119401 , 0.06MB , pdfREACH Declaration of conformity SDE-RW D0RW1 / 6119401 , 0.12MB , pdfRoHS Declaration of conformity SDE-RW D0RW1 / 6119401 , 0.12MB , pdfNo invitation to tender text is available for this product.
