Product description

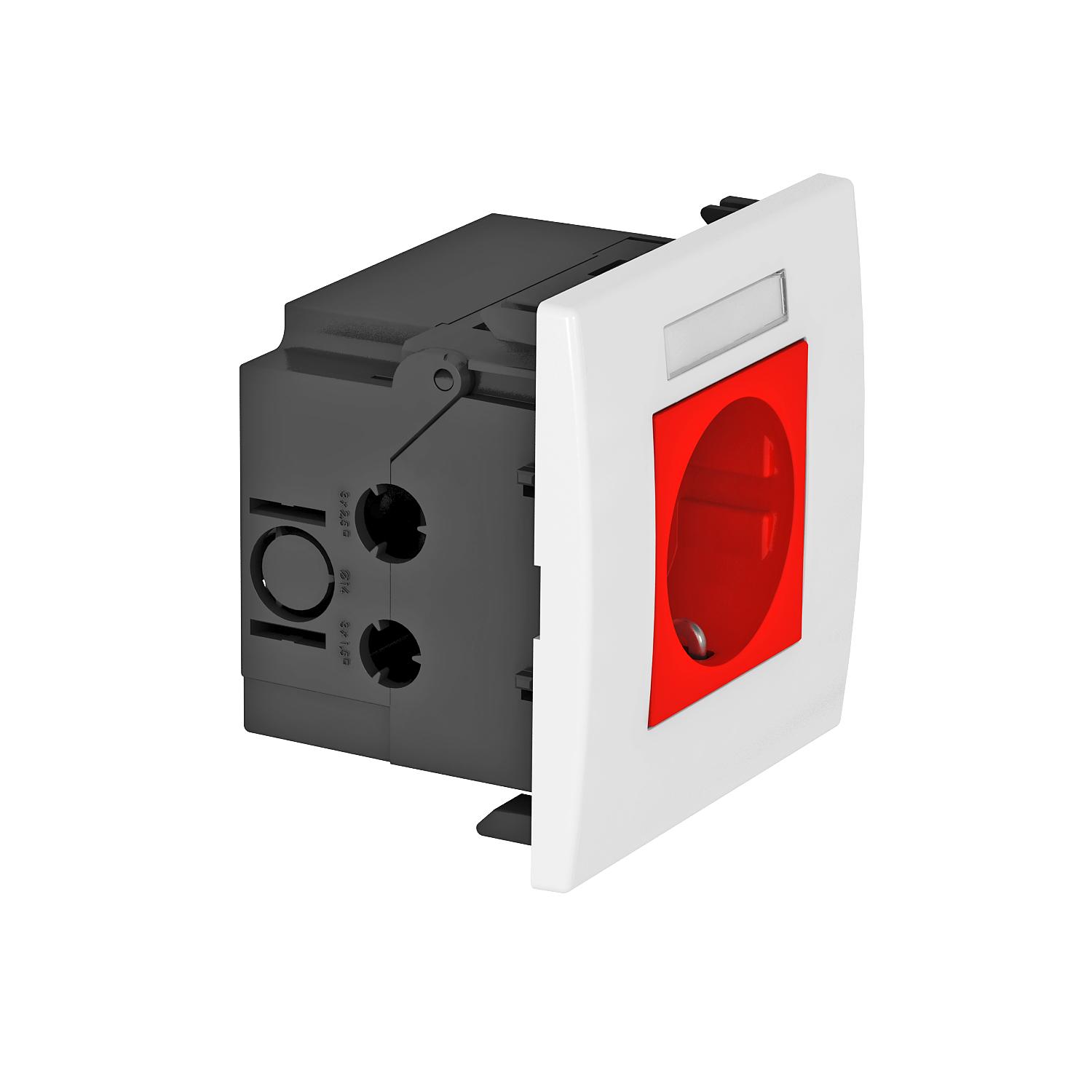

Pre-terminated socket unit with labelling panel, suitable for installation in Rapid 80 device installation trunking systems.
Socket unit, consisting of:
- Accessory mounting box, single, type 71GD8-2
- Protective contact socket, single, 0° connection direction, colour: see table
- Cover frame AR45, single, with labelling panel, type AR45-BF.., colour: pure white
For installation in Rapid 80 device installation trunking and ISS service poles.
- Technical data
-
Technical data
Closable no Coding no Colour Signal red; RAL 3001 Connection type Screwless terminal Cover Complete housing Depth 60 mm Dimension 84x84x59mm Ejection mechanism no Error current protection no Fastening type Lock For more difficult conditions (according to VDE) no Halogen-free yes Hinged cover no increased touch protection yes Insulated installation no Labelling panel yes Material Polycarbonate Mounting type Device installation duct Nominal current 16 A Nominal voltage 250 V Number of poles 2 Number of units 1 Power reserve no Printed label/coding Without printing Protection rating Other Rotated central insert no Socket angle 0° Socket version Protective contact Special power supply Without special power supply Surface version Matt Surge protection no Transparent no Version for Single 0° Warning light no With fine-wire fuse no With functional lighting no With on/off switch no With orientation lighting no Dimensions

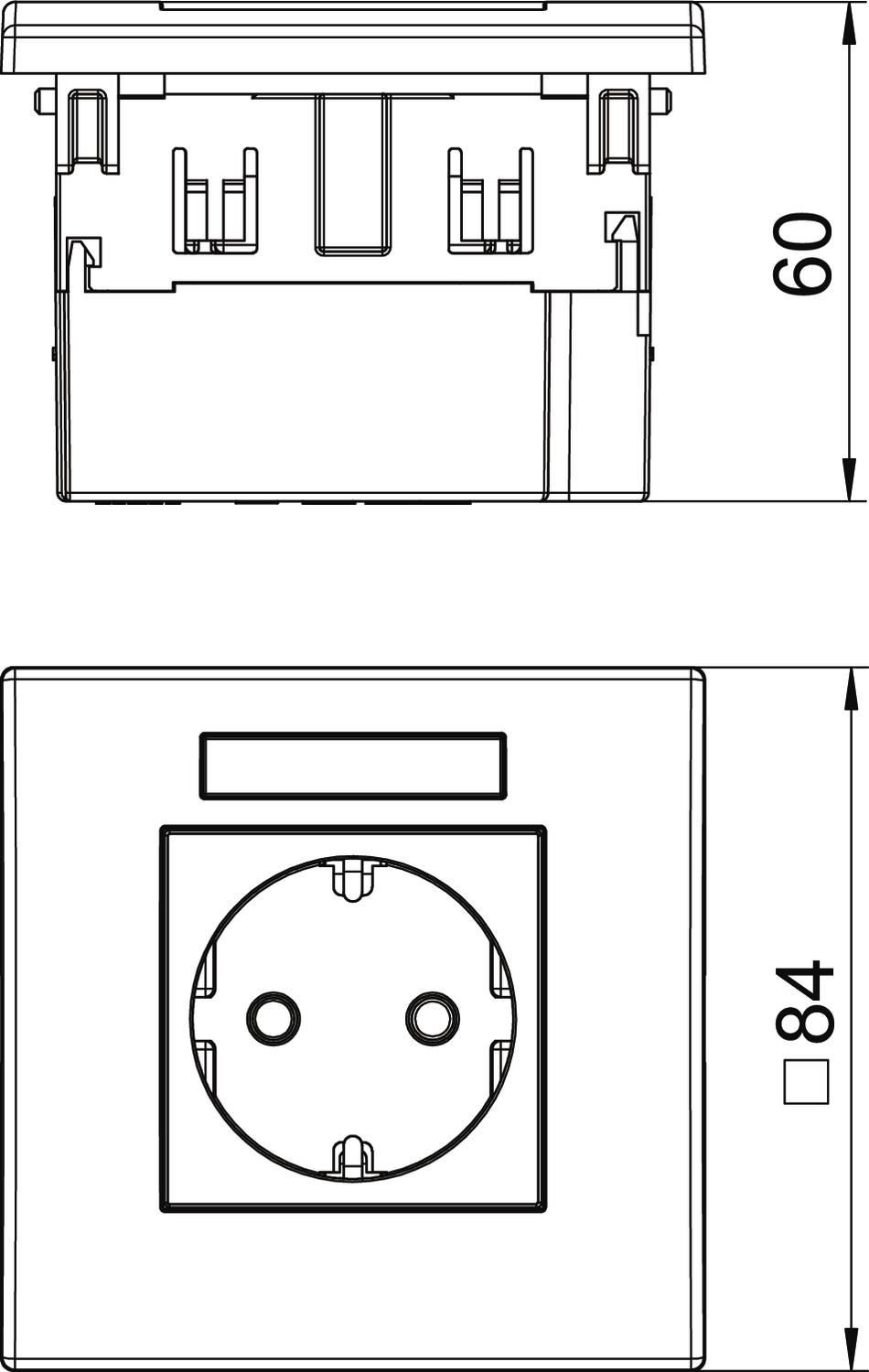

Height 84 mm Width 84 mm - All types
- Downloads
-
Data sheet SDE-RW D0RT1B / 6119423 , 0.24MB , pdfCatalogue Installation systems , 28.45MB , pdfDeclaration of conformity SDE-RW D0RT1B / 6119423 , 0.06MB , pdfREACH Declaration of conformity SDE-RW D0RT1B / 6119423 , 0.12MB , pdfRoHS Declaration of conformity SDE-RW D0RT1B / 6119423 , 0.12MB , pdf
