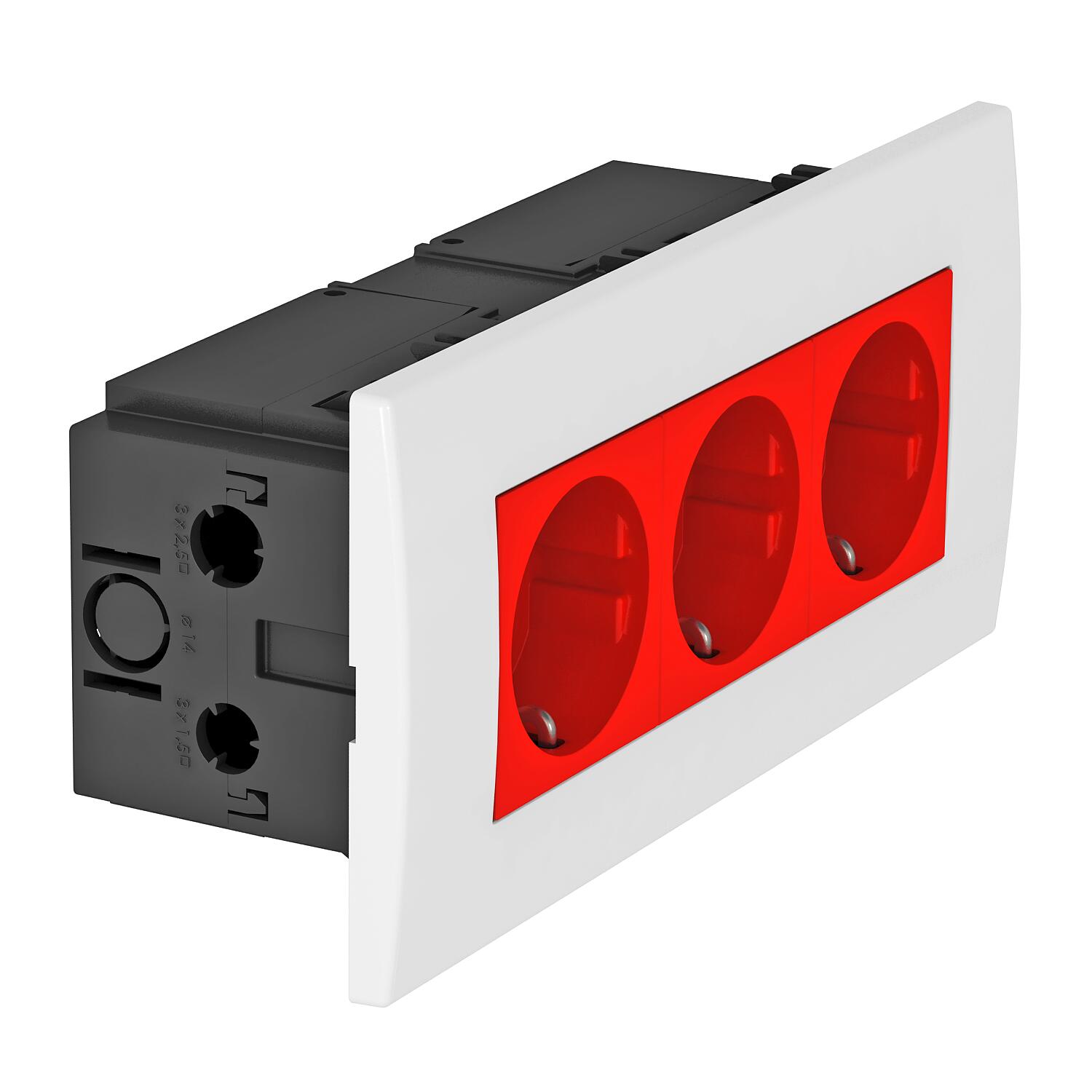

AR45 socket unit, triple

Name: AR45 socket unit, triple
Brand: OBO Bettermann
SKU: 6119413

Item no. 6119413 | EAN 4012195889236

Product description

Product description

Pre-terminated socket unit without labelling panel, suitable for installation in Rapid 80 device installation trunking systems.

Socket unit, consisting of:
- Service outlet, triple, type 71GD9-2
- Protective contact socket, triple, 0° connection direction, colour: see table
- Cover frame AR45, triple, without labelling panel, colour: pure white
For installation in Rapid 80 device installation trunking and ISS service poles.

Technical data

Technical data

Closable	no
Coding	no
Colour	Signal red; RAL 3001
Connection type	Screwless terminal
Cover	Complete housing
CO₂ Footprint (GWP) Cradle-to-Gate	1,177 kg CO₂e / 1 Piece

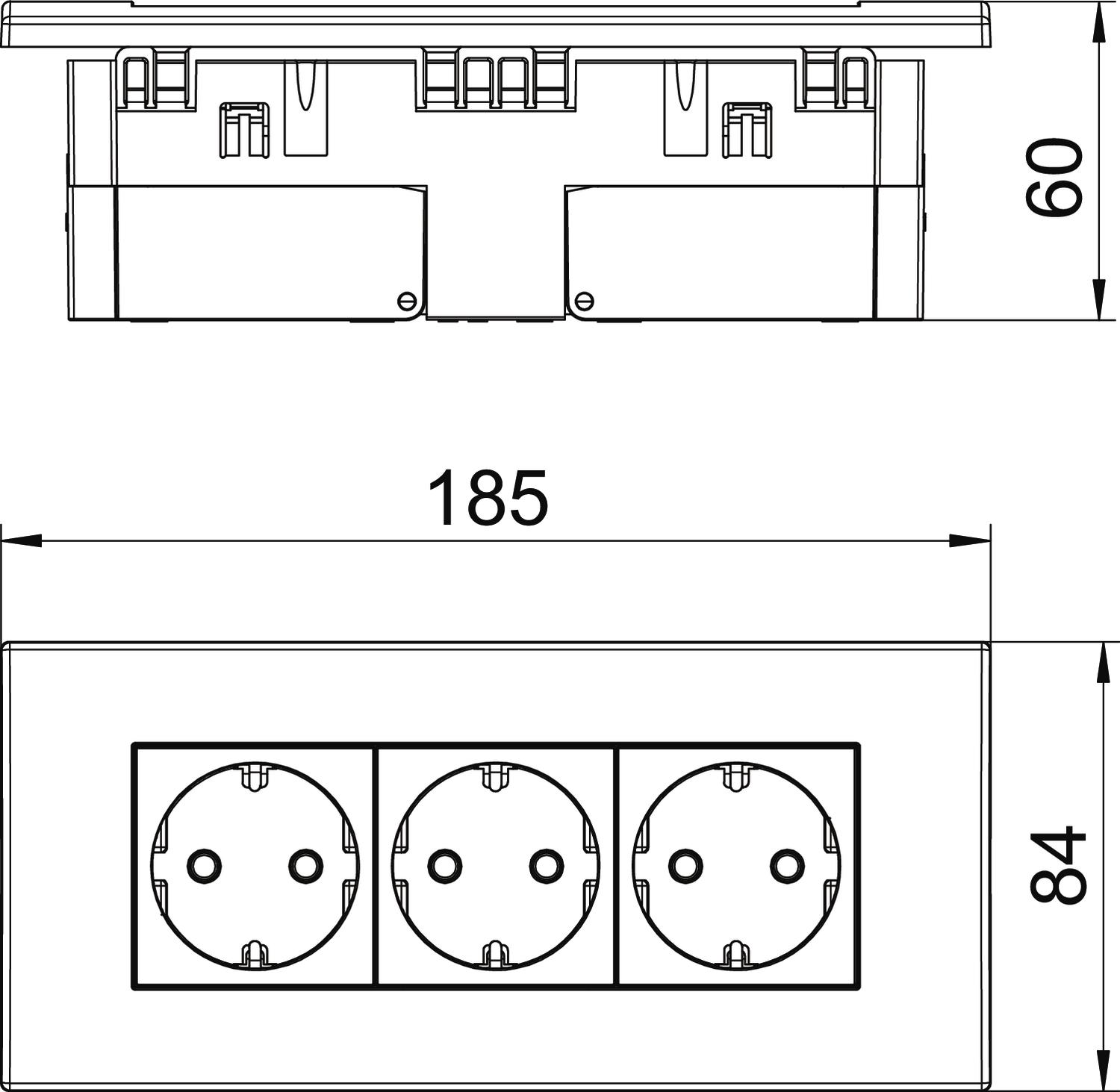

Depth	60 mm
Dimension	84x185x59mm
Ejection mechanism	no
Error current protection	no
Fastening type	Lock
For more difficult conditions (according to VDE)	no
Halogen-free	yes
Height	84 mm
Hinged cover	no
increased touch protection	yes
Insulated installation	no
Labelling panel	no
Material	Polycarbonate
Mounting type	Device installation duct
Nominal current	16 A

Nominal voltage	250 V
Number of poles	2
Number of units	3
Power reserve	no
Printed label/coding	Without printing
Protection rating	Other
Rotated central insert	no
Socket angle	0°
Socket version	Protective contact
Special power supply	Without special power supply
Surface version	Matt
Surge protection	no
Transparent	no
Version for	Triple 0°
Warning light	no
Width	185 mm
With fine-wire fuse	no
With functional lighting	no
With on/off switch	no
With orientation lighting	no
