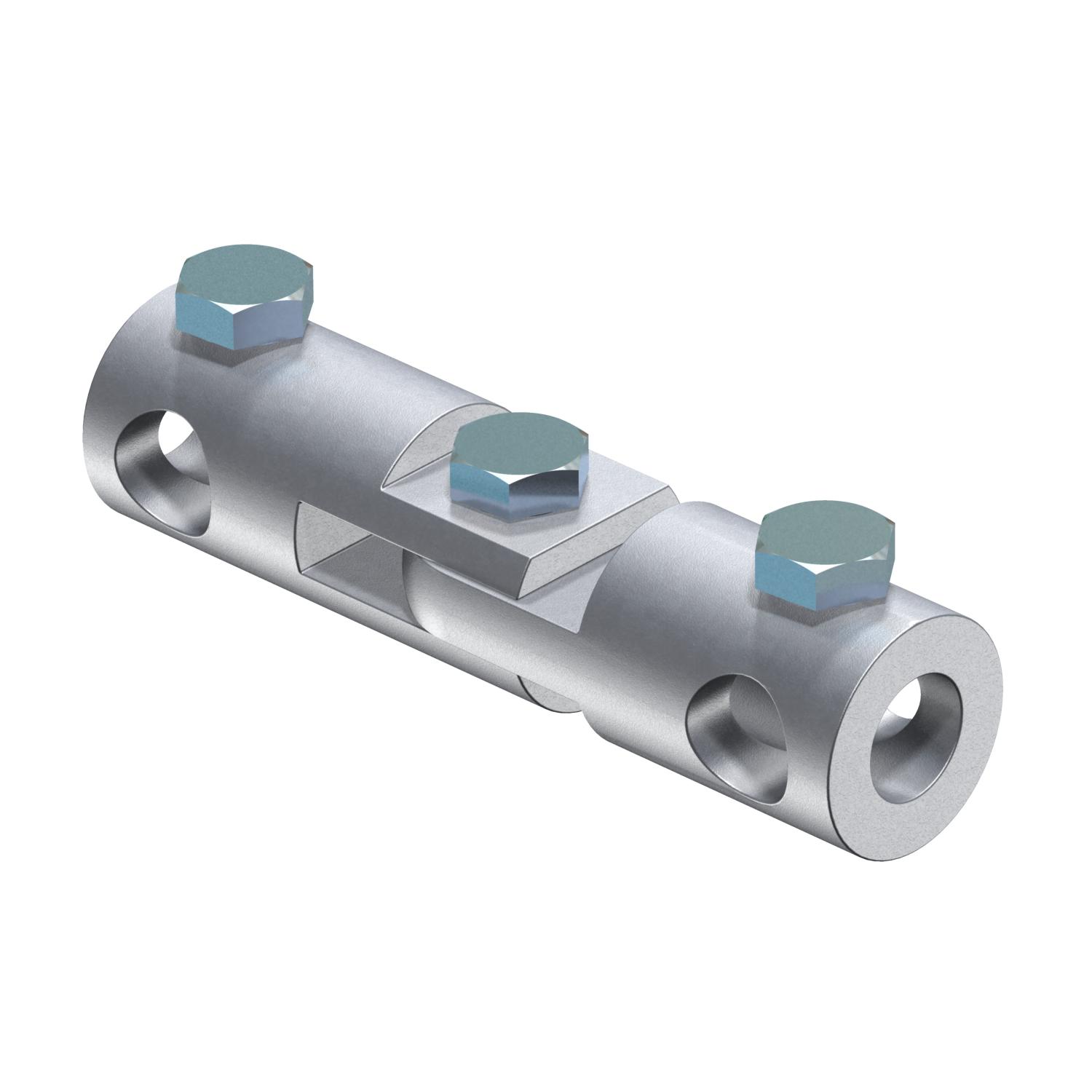

Articulated connector

Item no. 5408630 | EAN 4012195613312

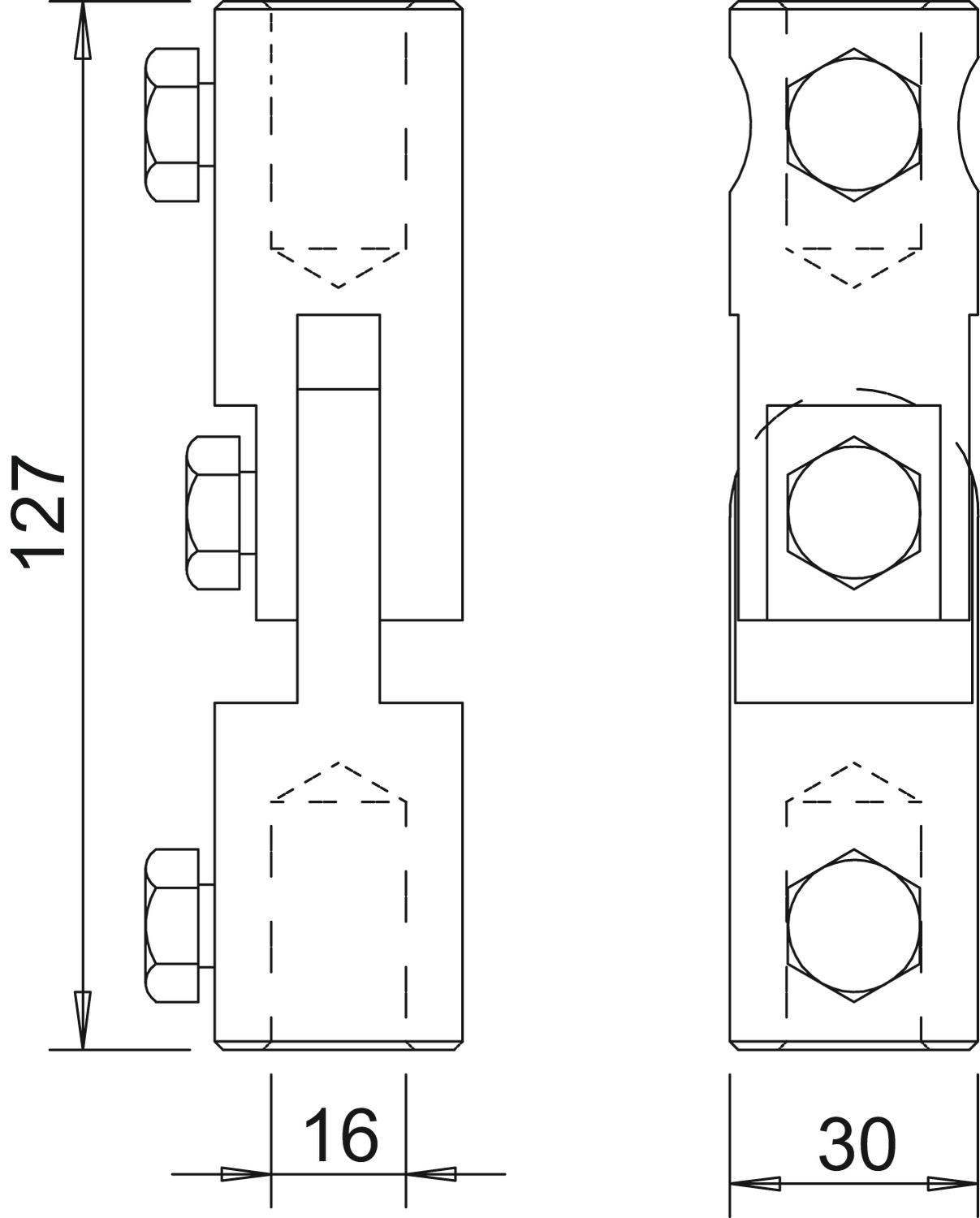

5408630 / 101 IGL-16
30 mm
16 mm
127 mm
Product description

Product description

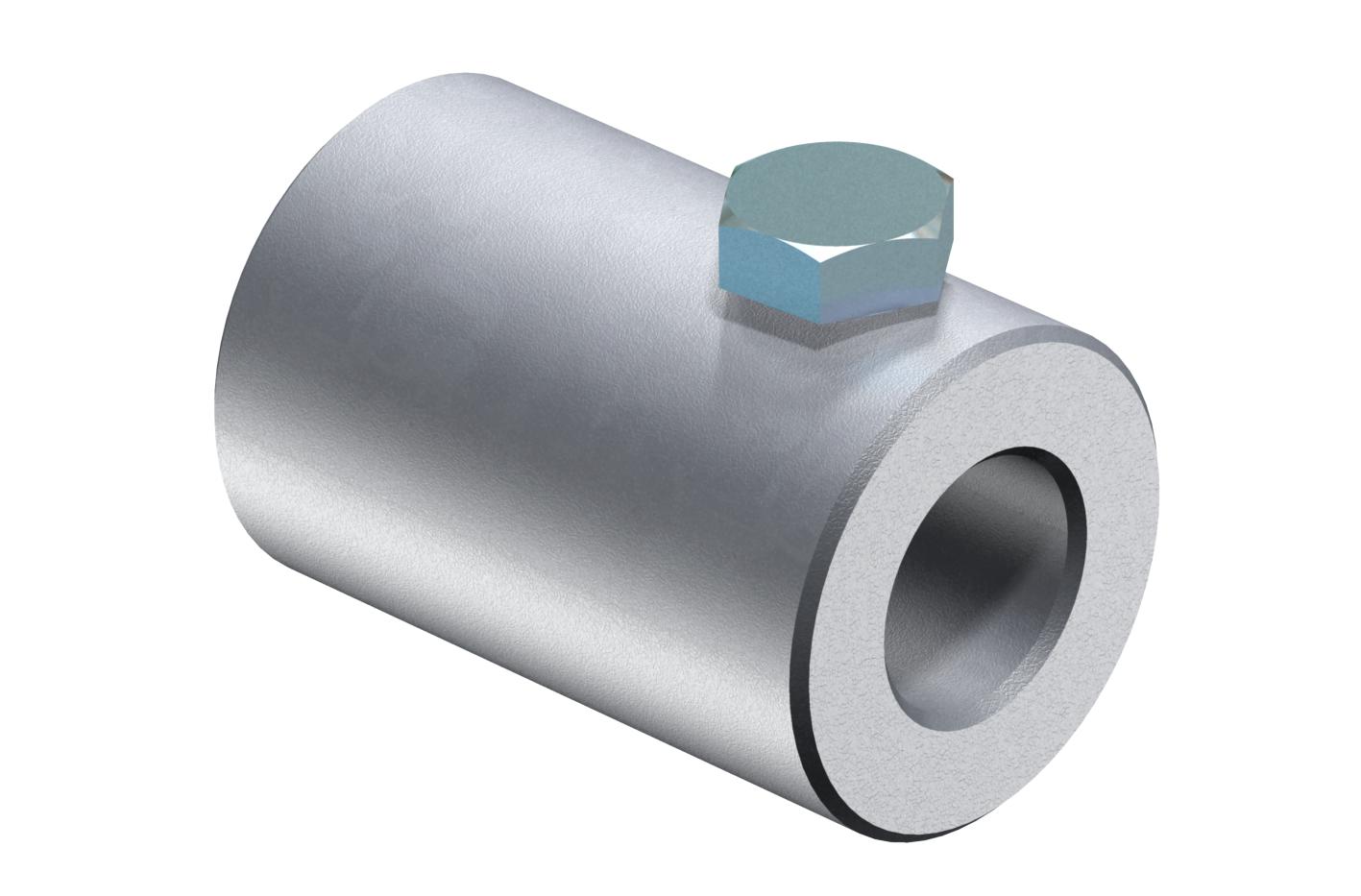

101/IW-M10: Wall connection

• With M8 internal thread
• To mount insulating rod on structures or walls
• With M10 x 12 bolts
Technical data

Technical data

Connection Round conductor
Dimension 16mm
Dimension d min. 30 mm
Dimension d Ø 16 mm
Dimension L 127 mm
Length 127 mm
Material Aluminium
All types

All types

Types Dimension d min. Dimension d Ø Dimension L Item no. Quantity SSU
101 IGL-16 30 mm 16 mm 127 mm 5408630
10 piece
