Audio cinch connection, 1 module, straight outlet, as 1:1 coupling, pure white Cinch | Pure white; RAL 9010

Audio cinch connection, 1 module, straight outlet, as 1:1 coupling, pure white

Item no. 6105066 | EAN 4012195900542

Item no. / Types

Use	Cinch

Colour

Product description

Product description

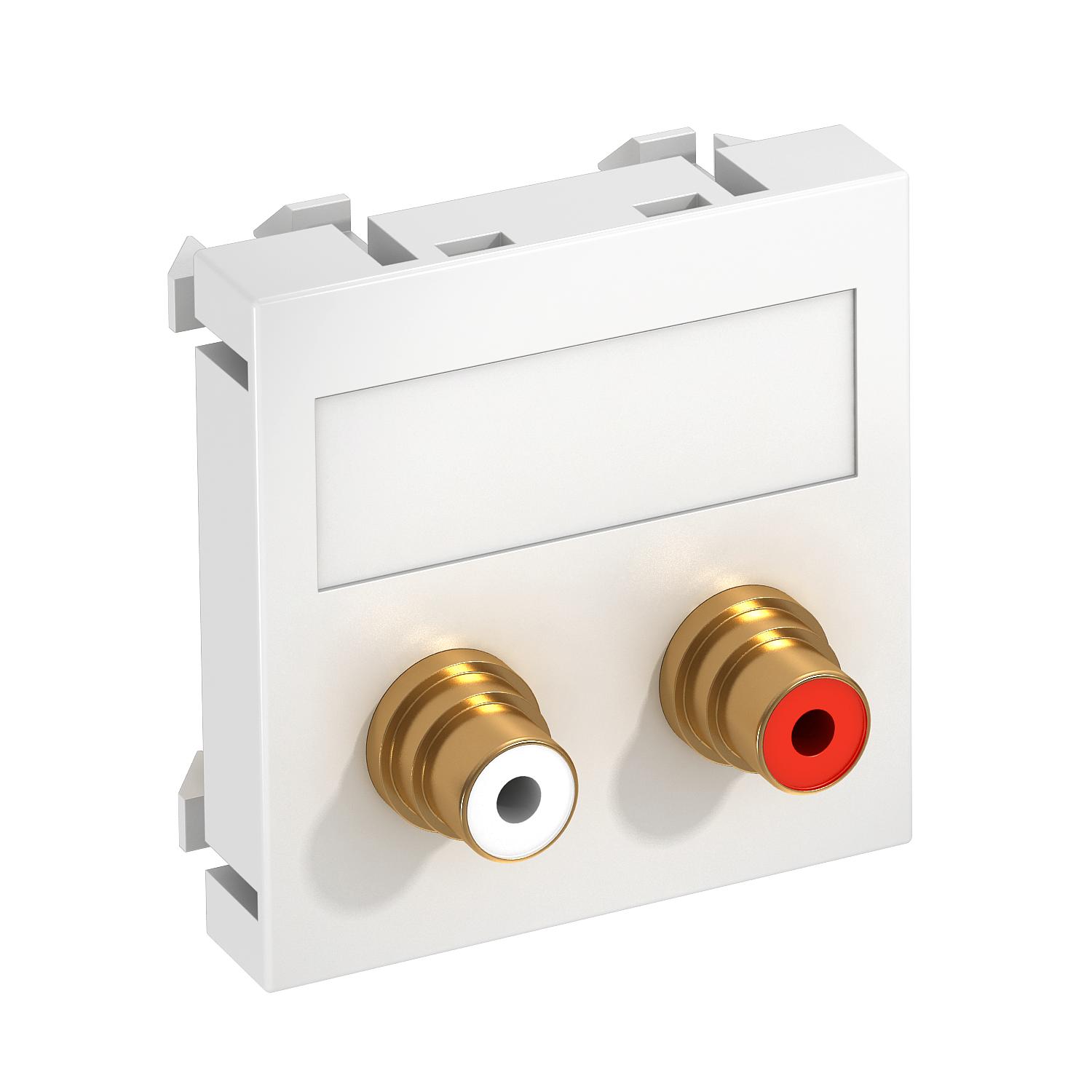

Multimedia support with two cinch connection sockets for audio R/L, straight cable outlet, with labelling panel, two cinch couplings (RCA), socket-socket version, colour coding red/white. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Technical data

Technical data

Colour	Pure white; RAL 9010
Combination	Basic element with central cover plate

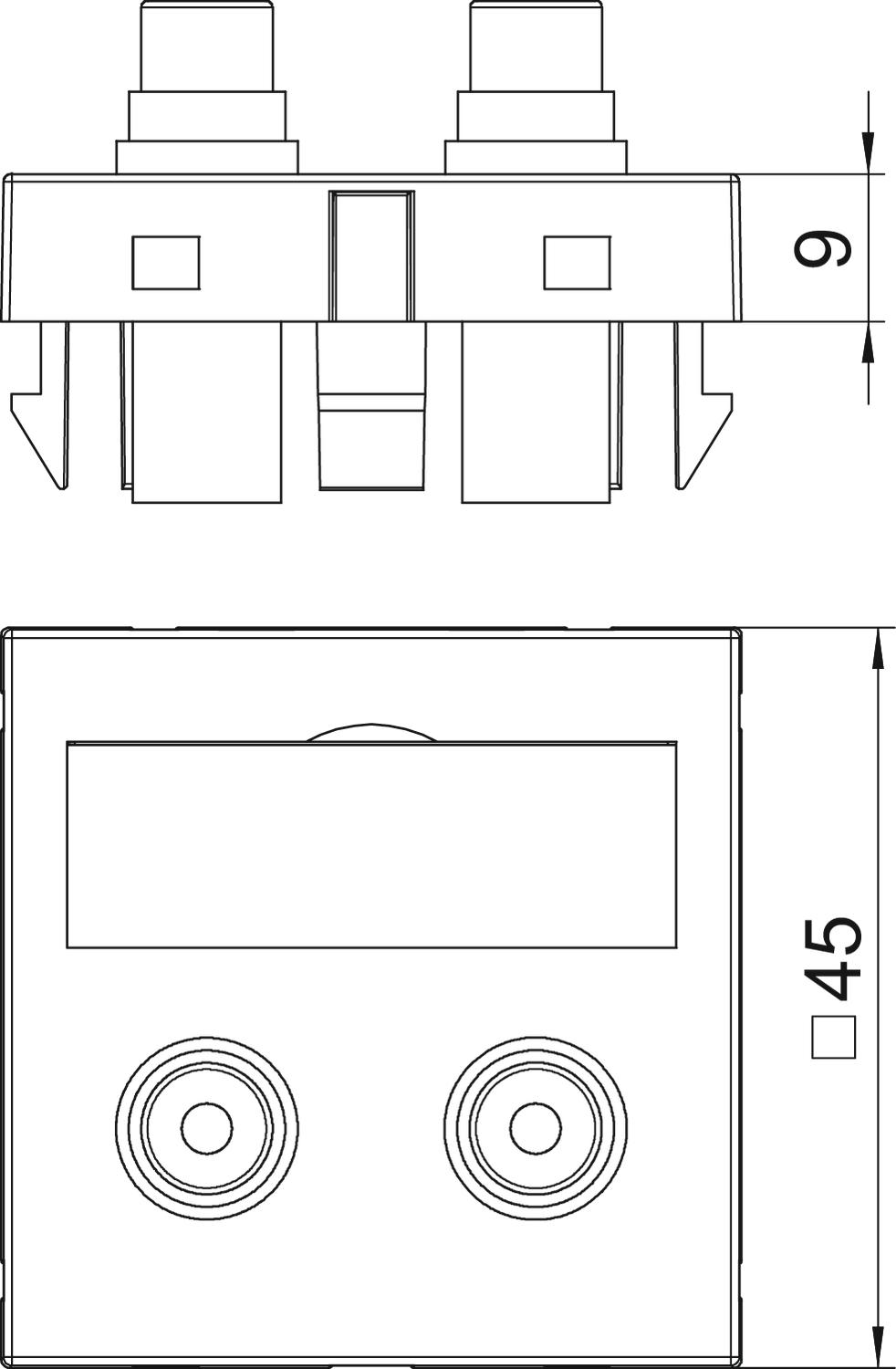

Depth	9 mm
Dimension	45x45mm
Fastening type	Lock
Halogen-free	yes
Height	45 mm
Hinged cover	no
Lamp-wire connector	no
Material	Polycarbonate

Number of units	1
Protection rating	IP20
Strain relief option	no
Support ring	no
Surface version	Matt
Transparent	no
Use	Cinch
Width	45 mm
With dust protection	no
With printed label	no

All types

All types

Types	Use	Colour	Item no.	Quantity	SSU
MTG-2R F RW1	Cinch	Pure white; RAL 9010	6105066	piece	5 piece
MTG-2R F SWGR1	Cinch	Black-grey; RAL 7021	6105069	piece	5 piece
MTG-2R F AL1	Cinch	Aluminium painted	6105072	piece	5 piece
