Automated fitted unit BRK AEE3-1 406 | Light grey; RAL 7035
morepic-1

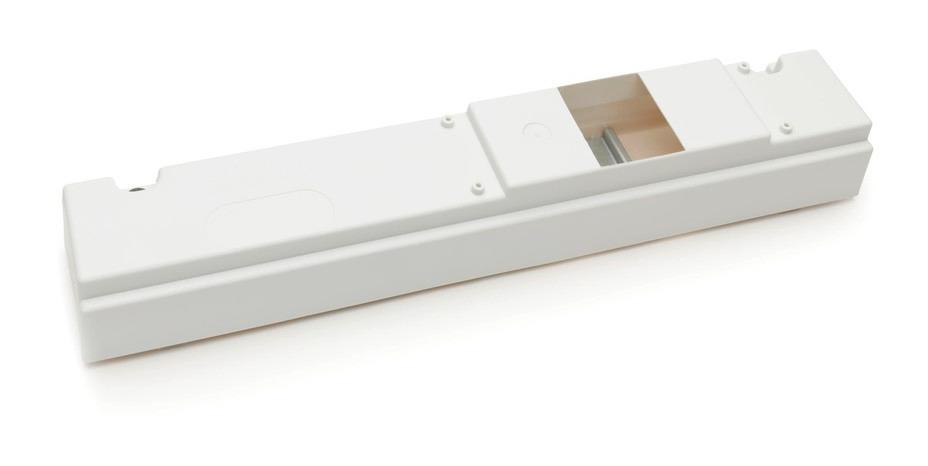

Automated fitted unit BRK AEE3-1

Item no. 6133602 | EAN 4012196716999

6133602 / BRK AEE3-1
406 mm
Light grey; RAL 7035
Product description

Product description

Automated fitted unit with 3 part units for the installation of miniature circuit breakers.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Cable entry yes
Colour Light grey; RAL 7035
Dimension 59x70x406
DIN rail yes
Extension option no
Halogen-free yes
Material Polypropylene
Number of rows 1
Number of units 3
Suitable for duct depth 70
Transparent lid yes
Type of cover Transparent
With mounting plate no

Dimensions

Height 59 mm
Length 406 mm
Width 70 mm
All types

All types

Types Length Colour Item no. Quantity SSU
BRK AEE3-1 406 mm Light grey; RAL 7035 6133602
1 piece
Downloads

Download

Declaration of conformity BRK AEE3-1 / 6133602 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
