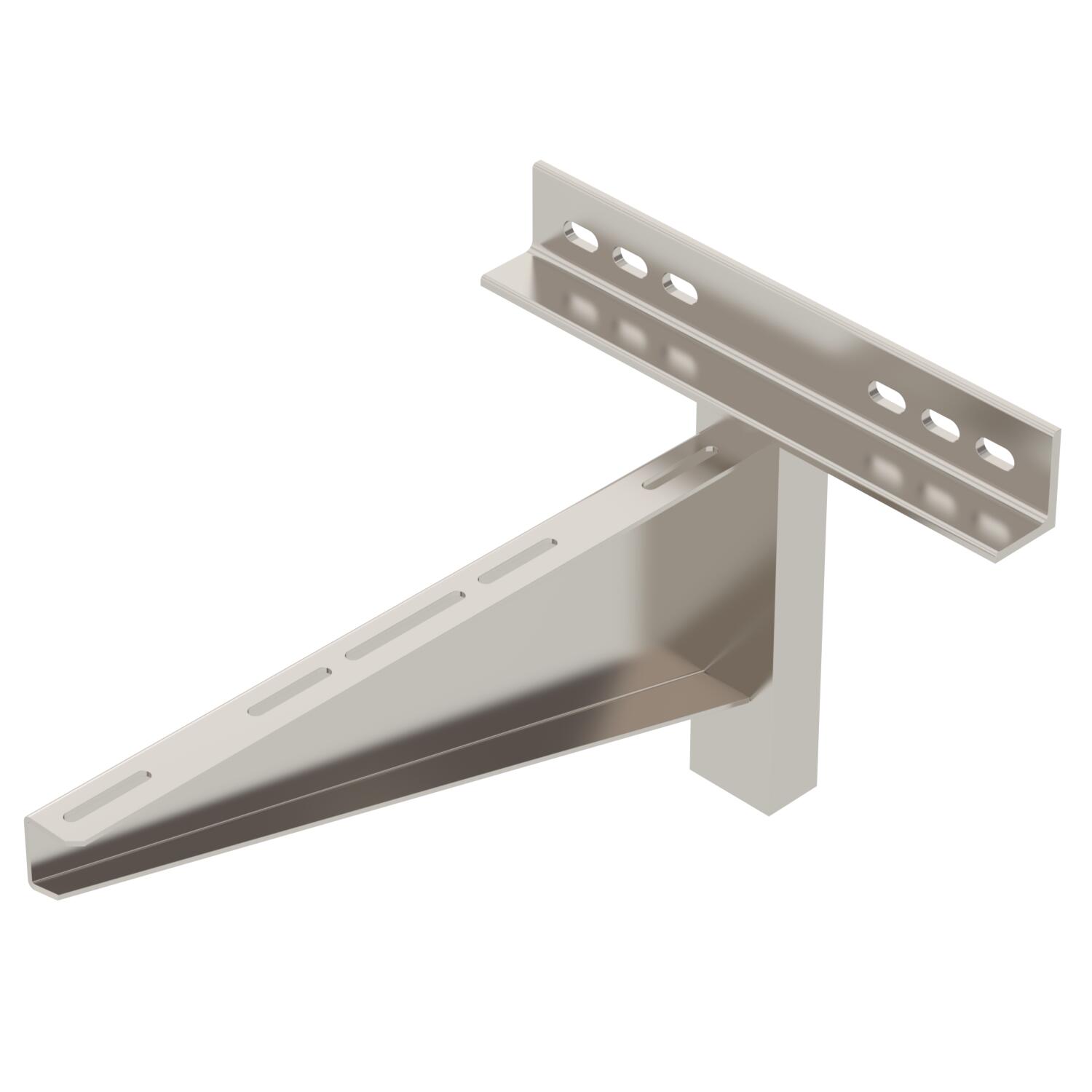

AWSS A2 wall and clamping bracket
Item no. 6417947 | EAN 4012196803910
- Product description
-
Product descriptionWall bracket, heavy duty.
-
- Technical data
-
Technical data
Colour stainless steel Dimension B510mm Dimension A 400 mm Dimension b 160 mm Dimension B 510 mm Dimension b1 240 mm Dimension b2 320 mm Dimension H 335 mm F in kN 10 kN Height 335 mm Hole diameter 14 mm Length 400 mm Maintain electrical functions no Material Stainless steel Rustproof steel, pickled no Surface Bright, treated Version for Wall brackets Width 510 mm Technical data
Load diagram, bracket type AWSS
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
- All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut A2
FRSB 6x12 A2 6406138 100 piece - Downloads
-
